Pole Mounting Hoops
n
Intended for use with the pole adapter. The following dimensions of stainless steel hoops are optional:
φ59-82mm, φ84-108mm, φ103-127mm, φ130-152mm, φ155-178mm, φ180-203mm, φ194-216mm.
Note: The dimensions of the pole mounting hoop must match the diameter of the pole adapter.
Mounting Accessories
n
1.1.2 POLE MOUNT INSTALLATION
Before you start:
The pole mounting is dependent on the indoor/outdoor solid pole construction. The following are the mandatory
preconditions for mounting:
The mounting dimensions of the stainless steel hoops must meet the diameter of pole.
n
The pole construction must be strong enough to withstand more than 8 times the weight of the dome and
n
its accessories.

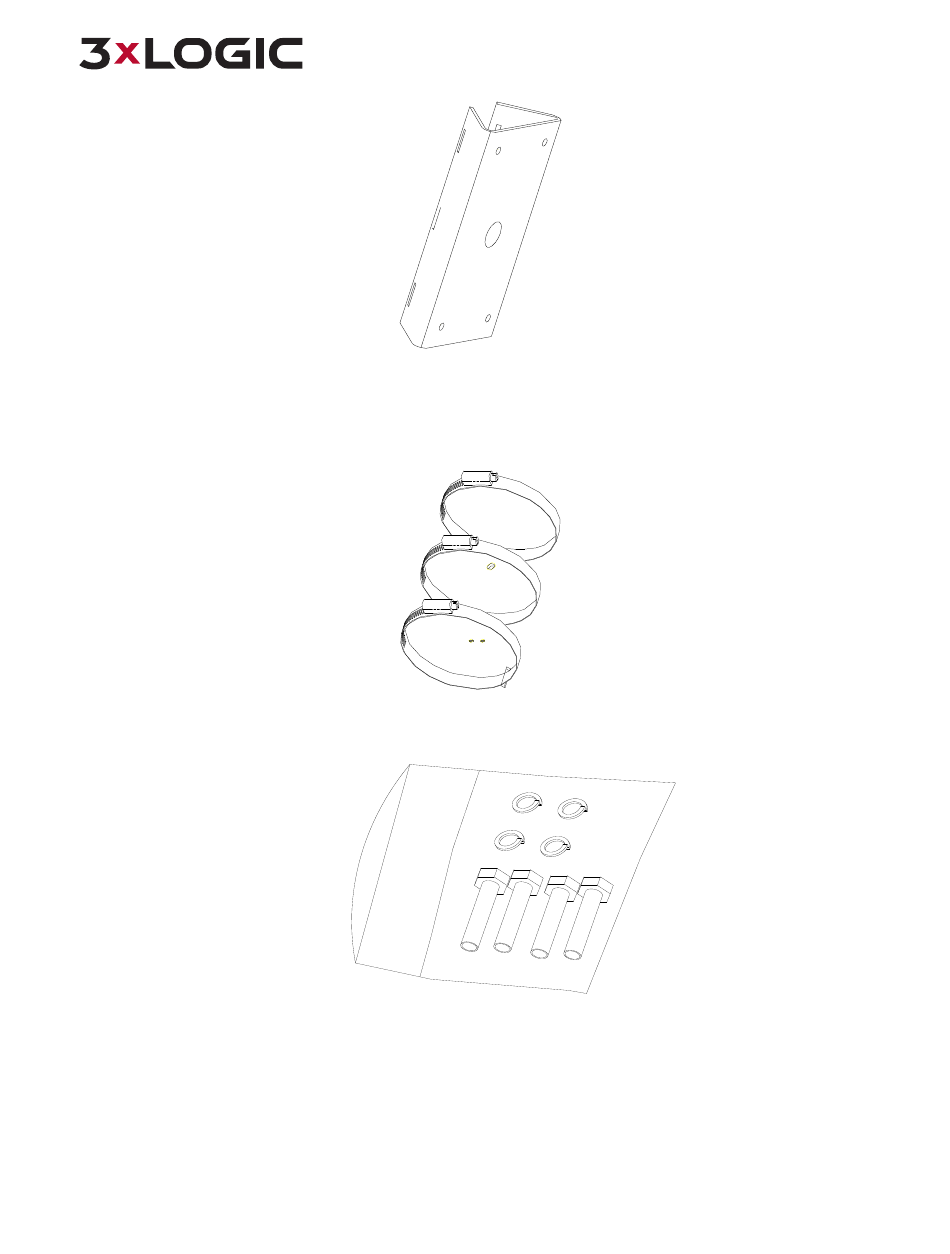

Pole Adapter
Figure 2-17
Stainless Steel Hoops
Figure 2-18
Hex Screws (M8×30) and Spring Washers
Figure 2-19
