Steps:
1. Assemble the pole adapter.
(1) Loosen the three stainless steel hoops with a screwdriver.
(2) Insert them through the rectangle holes of the pole adapter.
2. Install the pole adapter.
(1) Pull the cables through the center hole.
(2) Secure the three stainless steel hoops to the pole, and tighten the screws of the hoops with a screwdriver.
NOTE: For outdoor applications, please adopt the water-proof measures.
3. Install the wall mount.
(1) Attach the gasket then wall mount to the pole adapter.
(2) Secure the wall mount to the pole adapter with 4 hex screws and the spring washers.
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.11

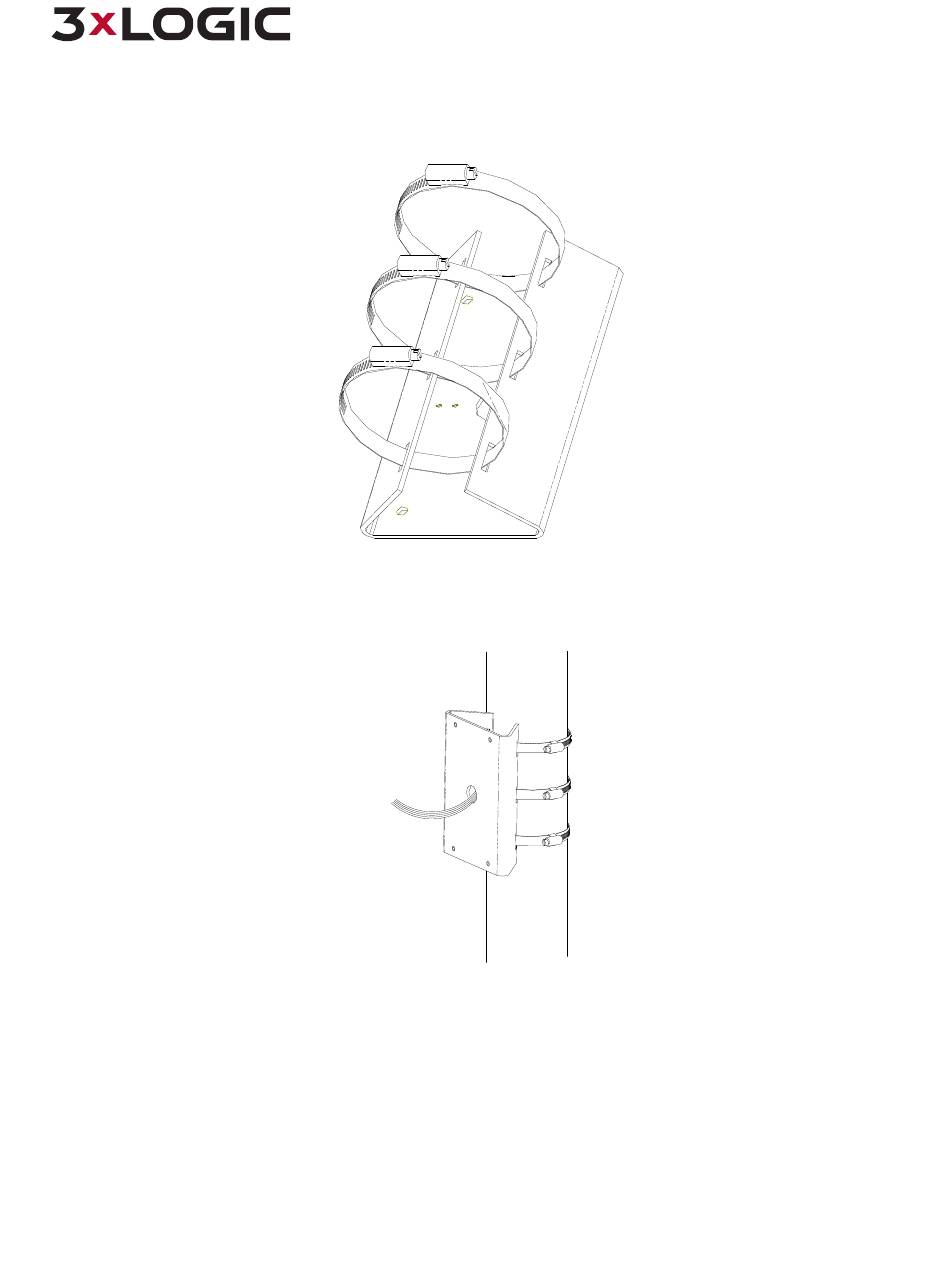

Assemble the Pole Adapter
Figure 2-20
Install the Pole Adapter
Figure 2-21
