Pole Mounting - 3xLogic VX-2S-OP-30X Quick Start Manual

4. Install the speed dome to the mount. Please refer to Section 2.2.1 Wall Mount for installation details.
NOTE: Follow the same instructions described above for the short-arm wall mounting. For outdoor applications,
please adopt water-proof installation measures. The short-arm wall mount is not recommended for outdoor
applications.
2.4 Pole Mounting
This mount and adapter must be purchased separately.
3xLOGIC Part Number: VX-WM-PTZ (Wall Mount), VX-POLE-PTZ (Pole Mount Adapter)
1.1.1 POLE MOUNT COMPONENTS
Wall Mount - VX-WM-PTZ
n
Please use the wall mount with corner adapter or pole adapter per the needs of the installation environment.
Pole Adapter - VX-POLE-PTZ
n
Please use the pole adapter with the wall mount for environments requiring pole mounting
Secure the Wall Mount to the Corner

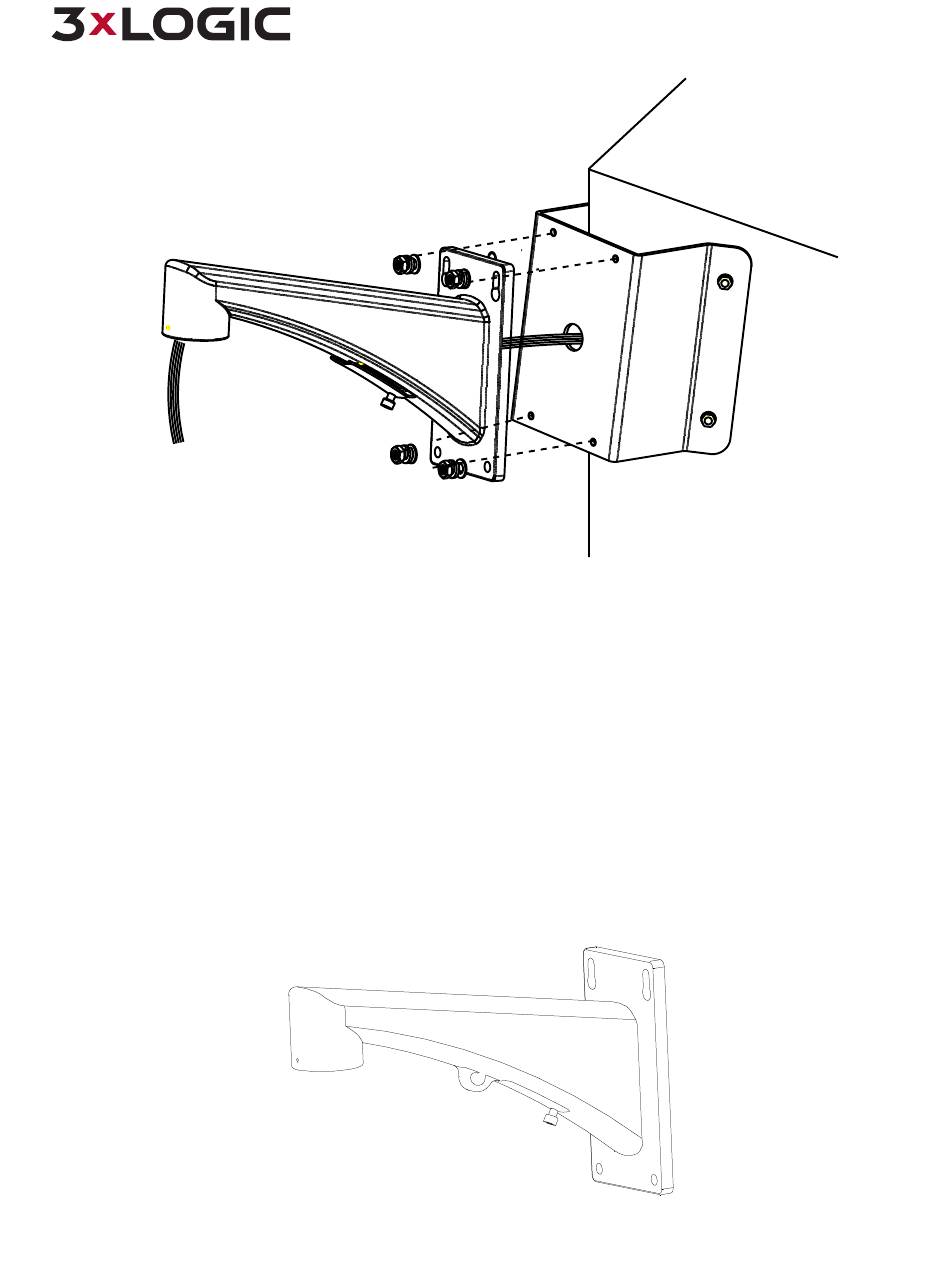

Figure 2-15
Wall Mount
Figure 2-16
