2.3 Corner Mounting
This mount and adapter must be purchased separately.
3xLOGIC Product Number: VX-WM-PTZ (Wall Mount), VX-CM-PTZ (Corner Mount Adapter)
2.3.1 CORNER MOUNT COMPONENTS
Wall Mount - VX-WM-PTZ
n
You can use the wall mount with the corner adapter or pole adapter according to the needs of the installation
environment.
Corner Adapter - VX-CM-PTZ
n
Please use the corner adapter with the wall mount in the corner mounting applications.
Mounting Accessories
n

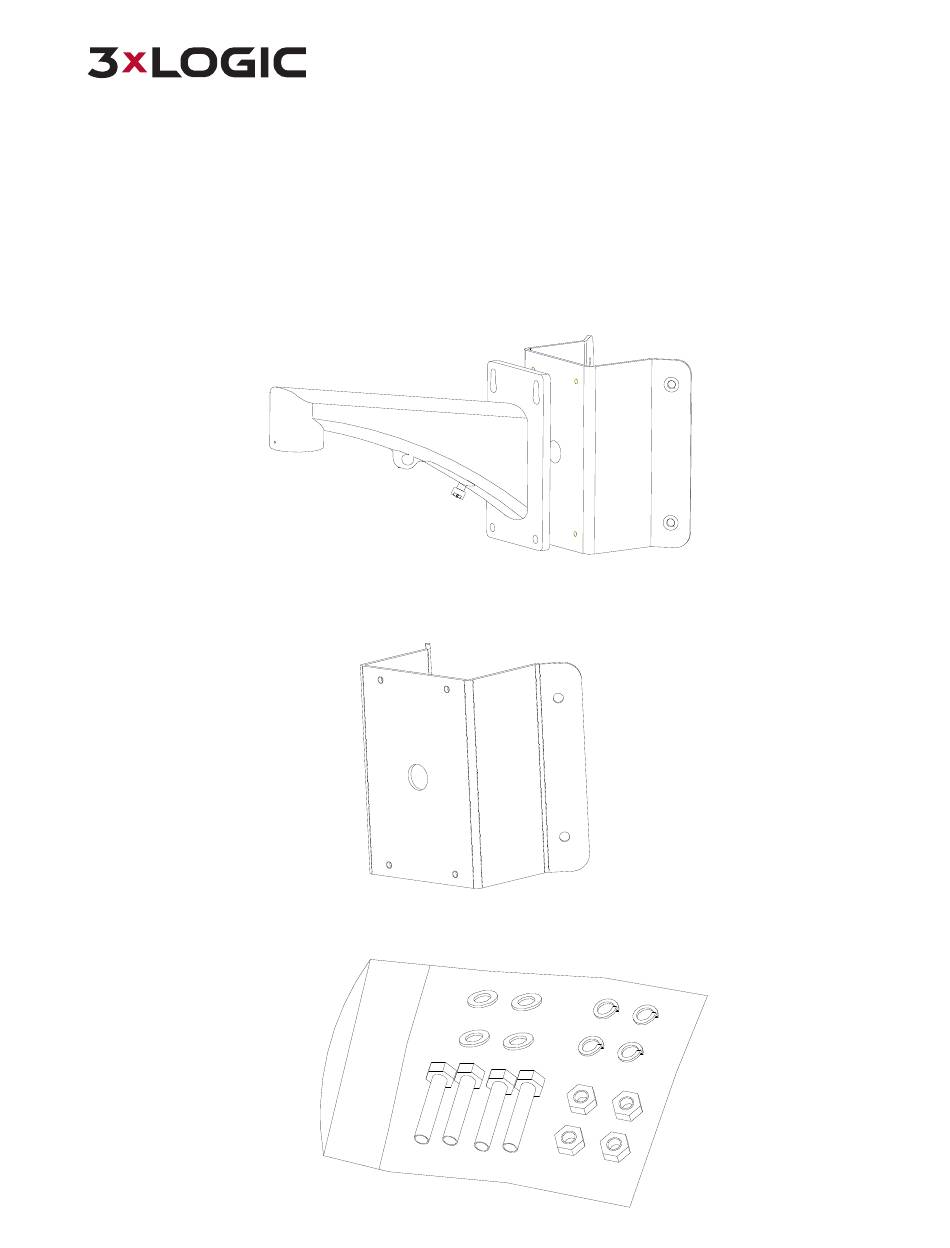

Figure 2-14
Wall Mount
Figure 2-12
Corner Adapter
Figure 2-13
Hex Screws (M8×30), Nuts, Spring Washers and Flat Washers
