2.6.3 WIRING FOR CEILING MOUNTING APPLICATIONS
The cables of dome can be routed either from the top or the side of the back box, as shown in Figure 2-31. For the
cables routed from the top of the back box, it is required to drill a cable hole in the ceiling.
2.6.4 CEILING MOUNT INSTALLATION
Steps:
1. The ceiling mounting speed dome is installed with an in-ceiling bracket by default. You need to remove the in-
ceiling bracket first before you install the speed dome.
Loosen and remove the four screws as shown in Figure 2-32.
1).
Remove the in-ceiling bracket as shown in Figure 2-33.
2).
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.16

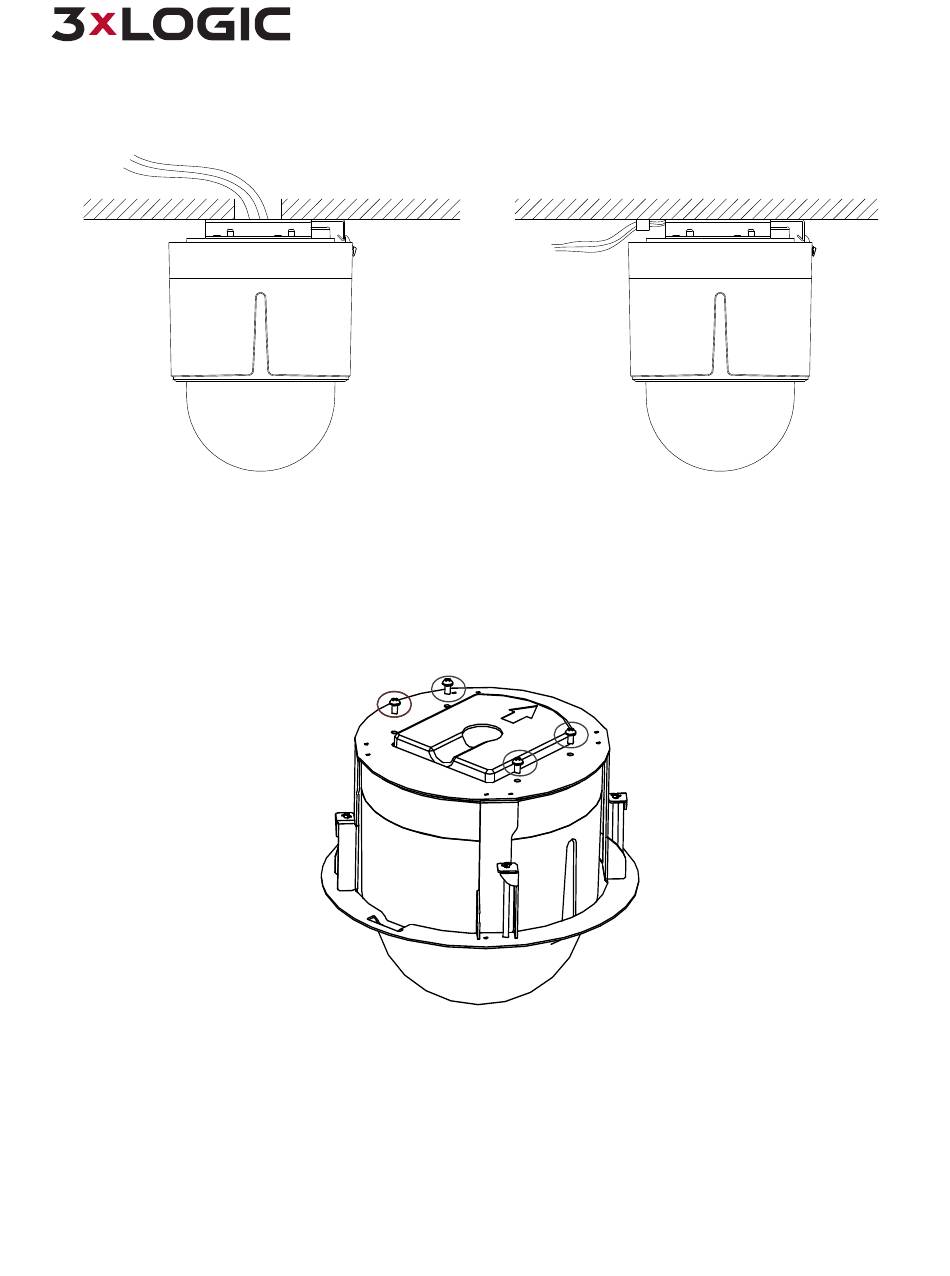

Cabling for Ceiling Mounting
Figure 2-31
Remove the Screws
Figure 2-32
