NOTE:
If you choose Hi-PoE, a Hi-PoE adapter must be connected. The Hi-PoE module connection is shown in Figure 2-8.
Connecting Hi-PoE
Steps:
1) Connect the Hi-PoE module to the Internet via the DATA IN interface using a network cable.
2) Connect the Hi-PoE module to the speed dome via the DATA & POWER OUT interface using a network cable.
3) Power on the Hi-PoE module.
4. Install the memory card (optional).
5. Align the cuts on the bubble with the lock screws on the back box to reinstall the bubble. Tighten the lock
screws.
6. Install the bracket.
Drill four screw holes in the wall according to the holes on the bracket, and then insert four M8 expansion
1).
screws into the mounting holes.
Attach the gasket and the bracket to the wall by aligning the four screw holes on the bracket with four
2).
expansion screws on the wall.
Secure the bracket with four hex nuts and washers.
3).
7. Fasten the speed dome to the bracket.
Attach the safety rope to the speed dome and the hook on the bracket as shown in Figure 2-10.
1).
Route the speed dome cables through the bracket.
2).
Connect the corresponding cables.
3).
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.5

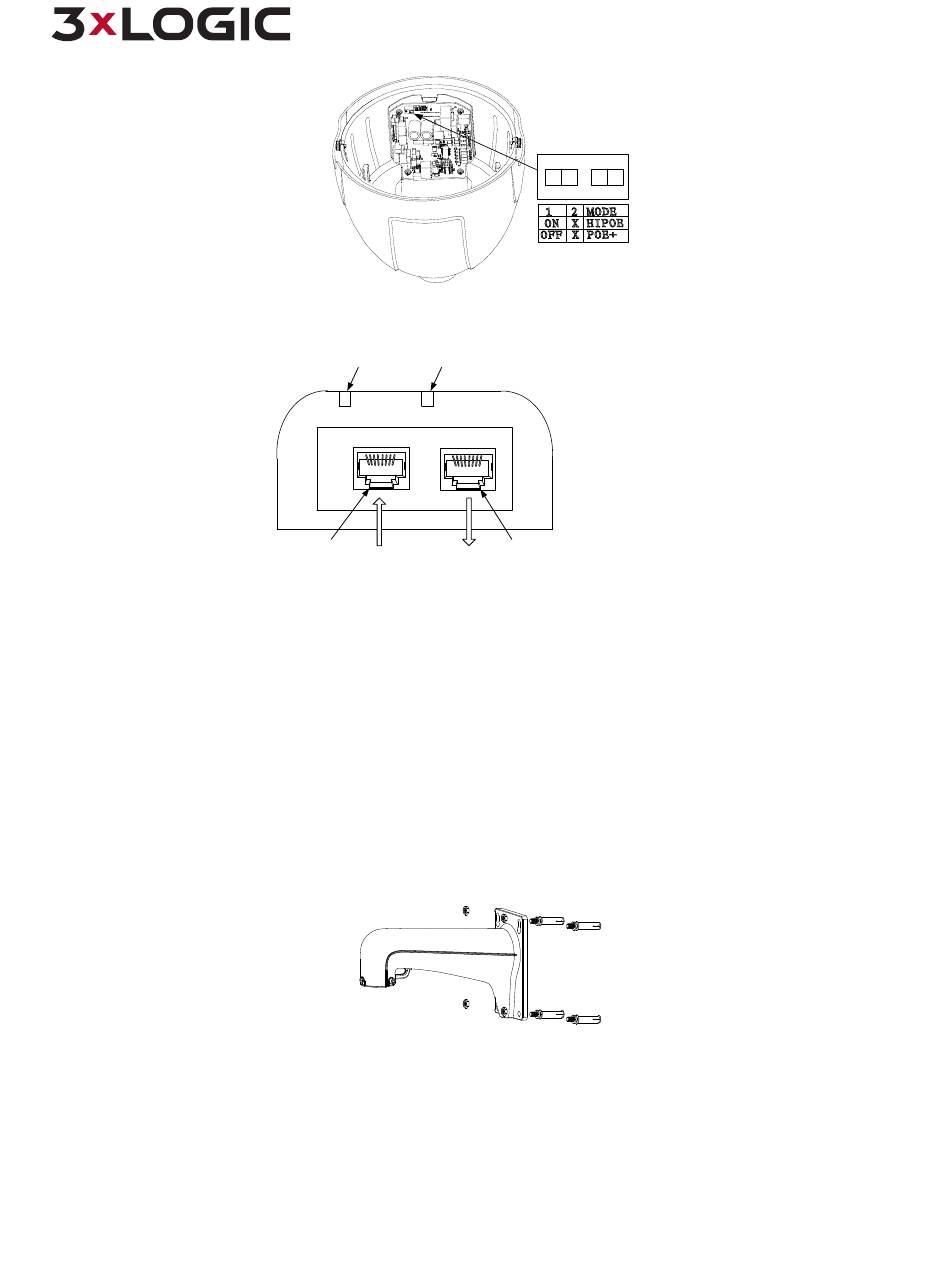

PoE+ and Hi-PoE Switch
Figure 2-7
1
2
3
Network Speed Dome Ethernet
Hi-PoE Connection
Figure 2-8
Secure the Bracket
Figure 2-9
ON
1 2
1: Power Indicator
2: PORT Indicator
3: DATA & POWER OUT
4: DATA IN
4
