4.2 Adding the VX-2S-OP-30X to VIGIL Server
Purpose:
By following the steps outlined in this section, a user can add a camera to VIGIL Server using the 3xLOGIC Camera
(VISIX IP) Setup Utility. The utility was previously utilized in Section 3.2 to detect and change the camera's IP address.
This utility is installed alongside VIGIL Server and will launch automatically when following the below steps.
Steps:
1. Login to VIGIL Server.
2. Open the Settings > Camera Setup Tab.
3. Select an unused camera channel to associate with the camera.
4. Toggle the Network Camera checkbox. The Network Camera Settings form will deploy. If the form does not
deploy automatically, click the Network Camera - Settings button.

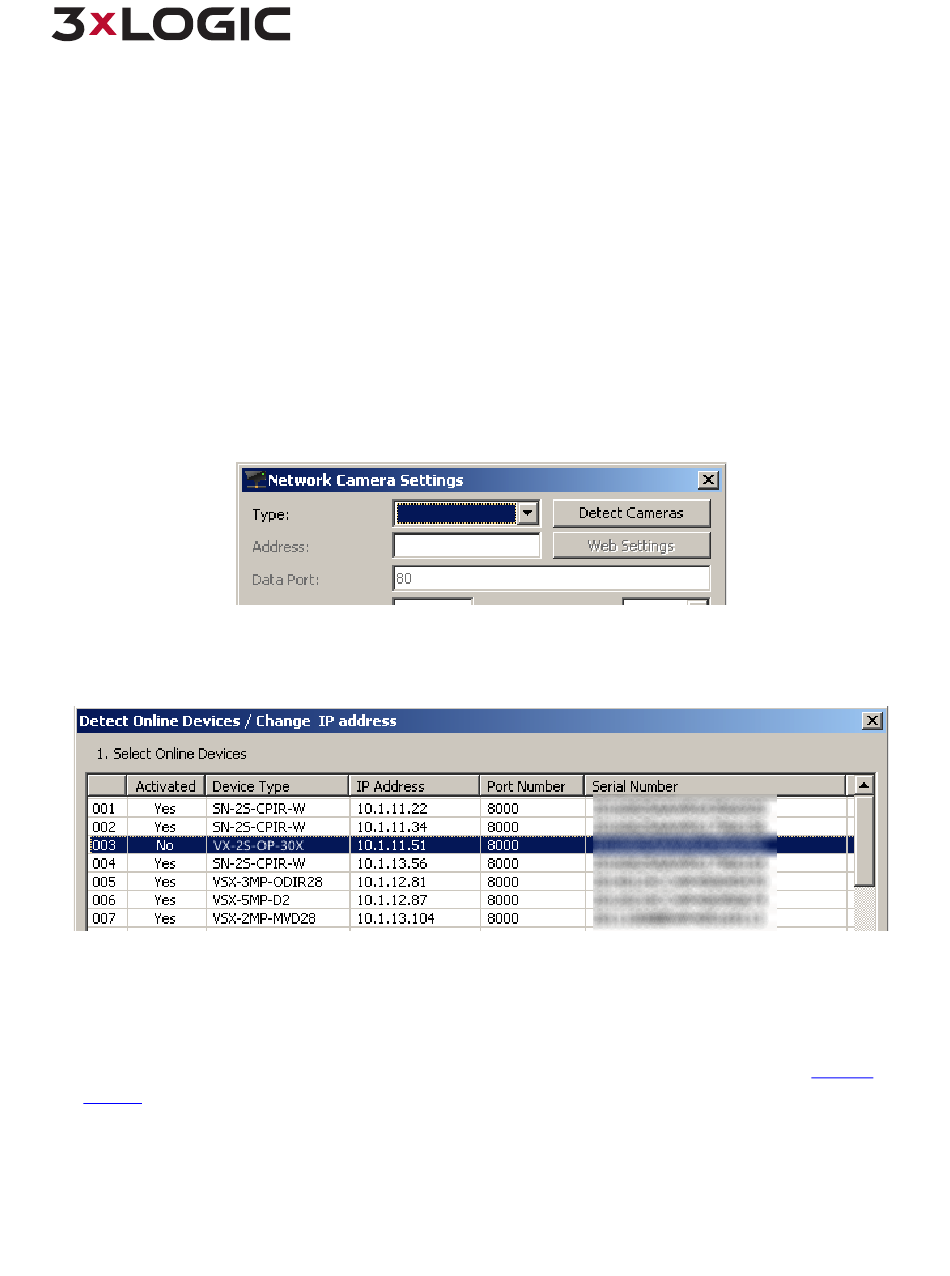

5. Click the Detect Cameras button located next to the Type field. The 3xLOGIC Camera Setup Utility will deploy
and will automatically begin detecting devices on the network.
6. Select the desired camera from the list of online devices and click Next.
3xLOGIC Camera (VISIX IP) Setup Utility – Selecting Camera from Onlne Devices List
Figure 4-3
7. After the utility successfully accesses the camera, click Save to VIGIL. A window will deploy where the user can
assign the camera's stream profiles.
NOTE: If the utility fails to access the camera, confirm the utility is using the correct log-in credentials for the
camera (created during camera activation) and re-attempt saving to VIGIL. If issues persist, contact 3xLOGIC
Support.
Launching the 3xLOGIC Camera Setup Utility
Figure 4-2
