5. Drill a hole on the ceiling according to the drill template (supplied).
NOTE:
±2 mm of the circle diameter is allowable.
6. Connect the cables.
7. Install the speed dome to the ceiling.
Loosen the two lock screws on both sides of the back box and position the locks internally as shown in Figure 2-
1).
25.
Push the speed dome into the mounting hole in the ceiling.
2).
Tighten the lock screws with a screwdriver and the locks will automatically rotate outwards to secure the in-
3).
ceiling bracket to the ceiling.

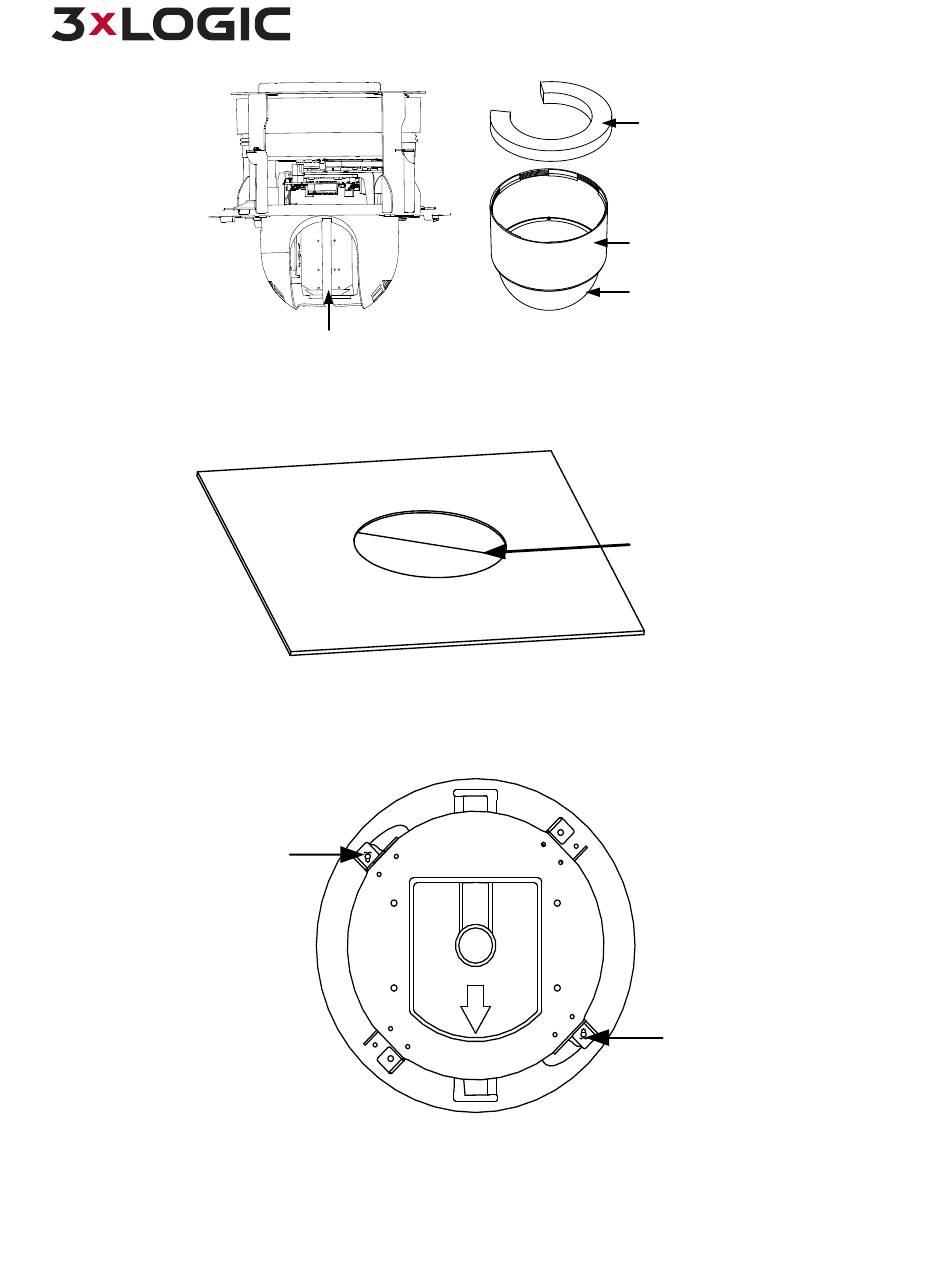

Protective Sticker
Remove the Protective Accessories
Figure 2-23
Drill a Hole on the Ceiling
Figure 2-24
Lock
Locks and Lock Screws
Figure 2-25
VISIX SOLUTIONS | VX-2S-OP-30X QUICK START GUIDE | p.13
Protective Foam
Back Box
Bubble
Φ 224
Lock
Unit: mm
