– press the button t to scroll up the list of parameters and
then r to scroll down the list
holding the buttons
NOTE:
scrolling movement.
– once the required parameter has been reached, press the
buttons > or < to modify the value within the permitted range.
The modifications are stored automatically.

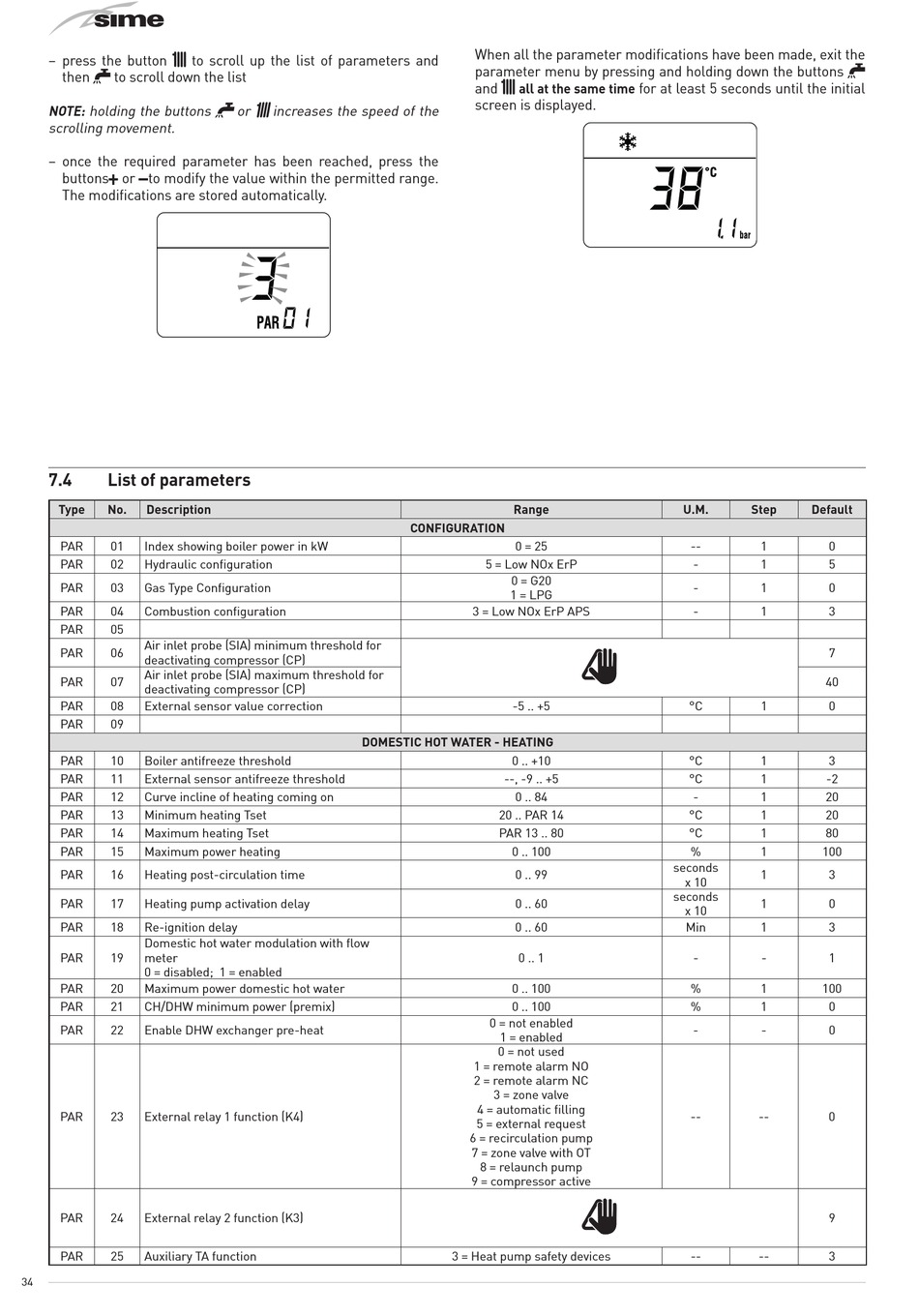

7.4

List of parameters

Type No. Description
PAR 01 Index showing boiler power in kW
PAR 02 Hydraulic configuration
PAR 03 Gas Type Configuration
PAR 04 Combustion configuration
PAR 05
Air inlet probe (SIA) minimum threshold for
PAR 06
deactivating compressor (CP)
Air inlet probe (SIA) maximum threshold for
PAR 07
deactivating compressor (CP)
PAR 08 External sensor value correction
PAR 09
PAR 10 Boiler antifreeze threshold
PAR 11 External sensor antifreeze threshold
PAR 12 Curve incline of heating coming on
PAR 13 Minimum heating Tset
PAR 14 Maximum heating Tset
PAR 15 Maximum power heating
PAR 16 Heating post-circulation time
PAR 17 Heating pump activation delay
PAR 18 Re-ignition delay
Domestic hot water modulation with flow
PAR 19 meter
0 = disabled; 1 = enabled
PAR 20 Maximum power domestic hot water
PAR 21 CH/DHW minimum power (premix)
PAR 22 Enable DHW exchanger pre-heat
PAR 23 External relay 1 function (K4)
PAR 24 External relay 2 function (K3)
PAR 25 Auxiliary TA function
34
r or t increases the speed of the
DOMESTIC HOT WATER - HEATING
When all the parameter modifications have been made, exit the
parameter menu by pressing and holding down the buttons
and t
all at the same time
screen is displayed.
Range
CONFIGURATION
0 = 25
5 = Low NOx ErP
0 = G20
1 = LPG
3 = Low NOx ErP APS
m
-5 .. +5
0 .. +10
--, -9 .. +5
0 .. 84
20 .. PAR 14
PAR 13 .. 80
0 .. 100
0 .. 99
0 .. 60
0 .. 60
0 .. 1
0 .. 100
0 .. 100
0 = not enabled
1 = enabled
0 = not used
1 = remote alarm NO
2 = remote alarm NC
3 = zone valve
4 = automatic filling
5 = external request
6 = recirculation pump
7 = zone valve with OT
8 = relaunch pump
9 = compressor active
m
3 = Heat pump safety devices
for at least 5 seconds until the initial
U.M. Step Default
-- 1
- 1
- 1
- 1
°C 1
°C 1
°C 1
- 1
°C 1
°C 1
% 1
seconds
1
x 10
seconds
1
x 10
Min 1
- -
% 1
% 1
- -
-- --
-- --
r
0
5
0
3
7
40
0
3
-2
20
20
80
100
3
0
3
1
100
0
0
0
9
3
