Smoke outlet and combustion air inlet

boilers must be equipped with appropriate smoke flue ducts and combustion air inlet ducts. These ducts are
UNIQA REVOLUTION
considered an integral part of the boiler and are provided by Sime as an accessory kit, to be ordered separately from the appliance on
the basis of the type permitted and the system requirements.

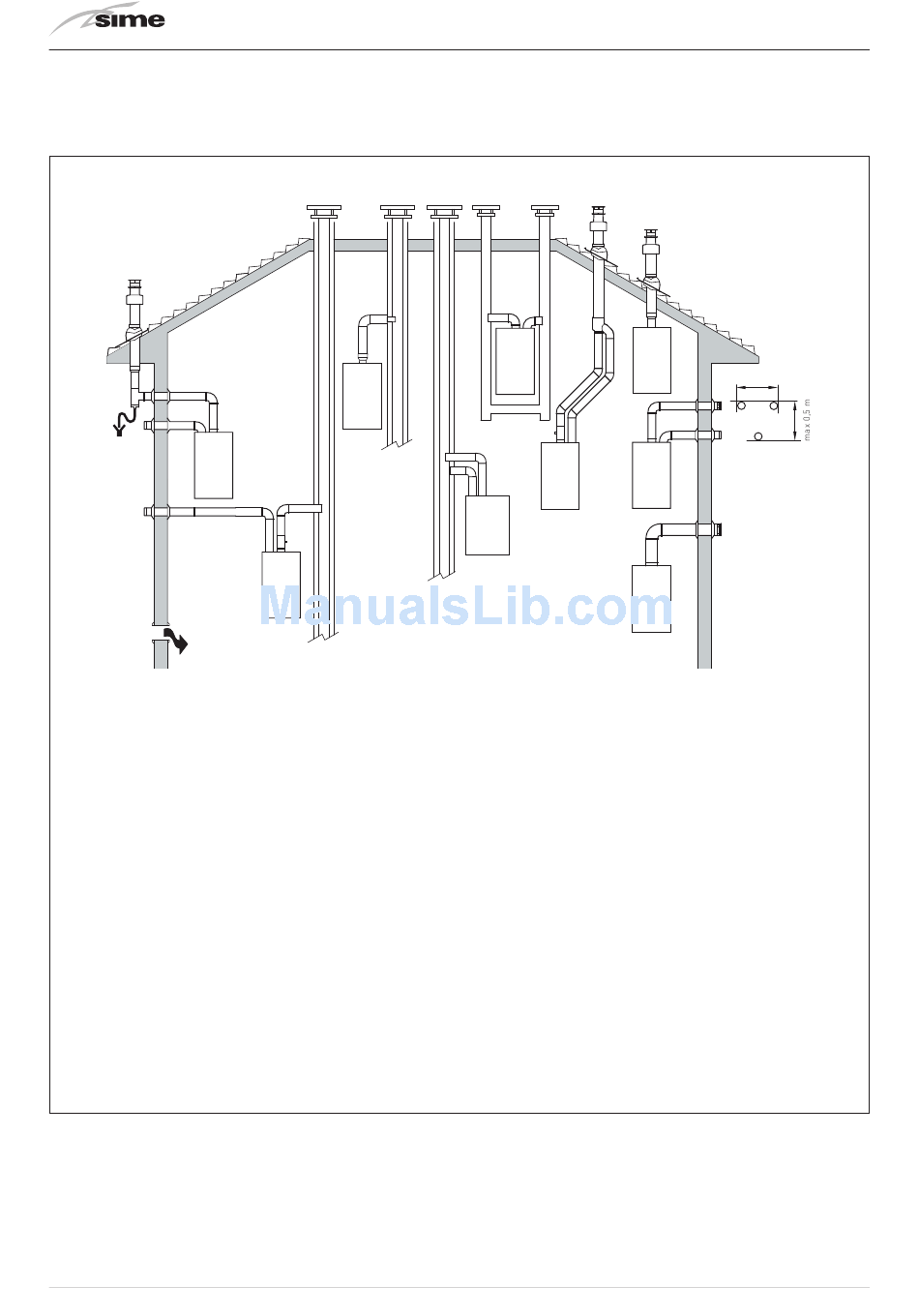

Permitted outlets
C10
Type C appliance connected, via conduits, to a collective
pipe designed for more than one appliance. The
collective pipe is made up of two conduits connected
to a terminal which also feeds in air from outside
the burner and evacuates the combustion products
externally through concentric orifices or those close
enough to result in the same wind conditions.
the boiler can be type C(10) only with accessory
NOTE:
code 8089560.
C12-C12X
Concentric wall smoke outlet The pipes can start from
the boiler but the outlets must be concentric or close
together (no more than 50 cm) to be subject to similar
wind conditions.
C32-C32X
Concentric roof outlet Outlet as C12X.
m
WARNINGS
– The smoke flue and the connection to the flue pipe must be in compliance with the national and local Standards and
Legislation in force.
– The use of rigid ducts which are resistant to temperature, condensate, mechanical stress and are air-tight is compulsory.
– Outlet ducts which are not isolated are a risk of danger.
26
C42
C42X
C52
C52X
C82
C82X
C42 C32
C42X C32X
C32 C12
C32X C12X
C10
C12
C12X
C42-C42X
Outlet and inlet in shared or separate flue pipes but
subjected to similar wind conditions.
C52-C52X
Separate wall or roof inlet and outlet in different
pressure areas.
the inlet and outlet must never be positioned on
NOTE:
opposing walls.
C82-C82X
Outlet in single or shared flue or with inlet on wall.
smoke outlet system designed to operate with
P:
positive pressure.
appliances and corresponding smoke outlet which
X:
meet German air-tightness requirements.
max 0,5 m
Fig. 22
