Wiring Diagram; Dual Sensor (Thermal Safety - Sime UNIQA REVOLUTION Original Instructions Manual

5.12

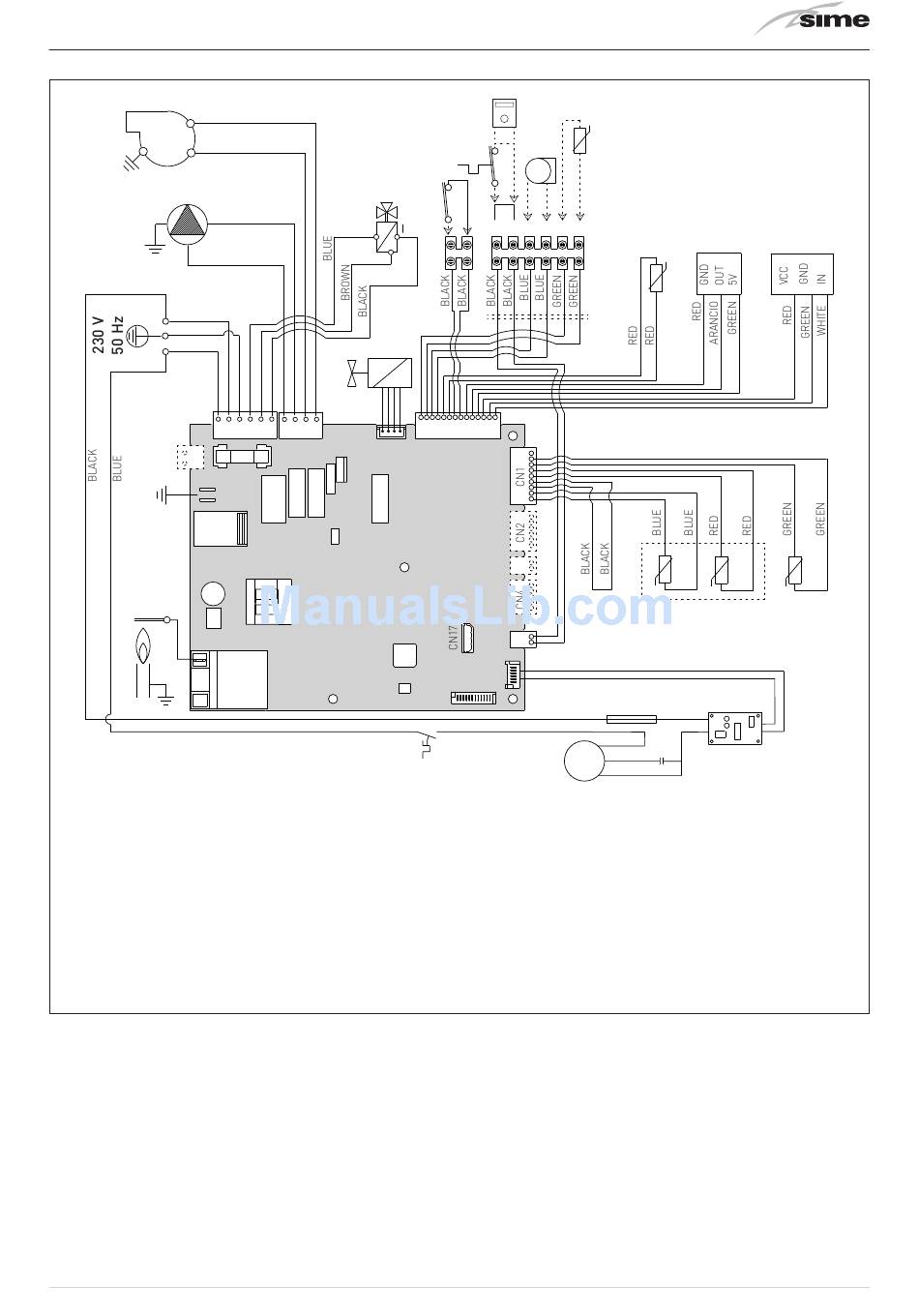

Wiring diagram

BROWN
V
BLUE
BROWN
PI
BLUE
BROWN
L
N
BLUE
CN11
EAR
L Line
Neutral
N
F1 Fuse (3.15AT)
Fuse (4AR)
F2
Ignition transformer
TRA
System pump
PI
Fan
V
Ignition / Detection electrode
EAR
To connect the "Air Thermostat" or, alternatively the "Remote Control", remove the bridge between
terminals 5-6.
m
CAUTION
Users must:
– Use an omnipolar cut-off switch, disconnect switch
in compliance with EN Standards
– Respect the connections L (Live) - N (Neutral)
– Ensure that the special power cable is only replaced
with a cable ordered as a spare part and connected
by professionally qualified personnel
VD
2
3
EV
CN12 CN13
CN14
F1
CD .6324905
TRA
EV Gas solenoid valve
Domestic hot water sensor
SS
SM1-2

Dual sensor (thermal safety/

delivery)
Flow meter
FLM
Diverter valve
VD
Pressure transducer
TPA
Air thermostat
TA
CR
SE SIA
TA
PA
6 5 4 3 2 1
CN15
CN3
CN5
CN6
BLACK
C
CP S
R
m
CAUTION
Users must:
– Connect the earth wire to an effective earthing
system. The manufacturer is not responsible for any
damage caused by failure to earth the appliance or
failure to observe the information provided in the
wiring diagrams.
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.
TPA
SS
SM1 SM2
EXP
F2
1
3
GREY
BLACK
PA High pressure switch
External sensor
SE
SR Return Probe
Air inlet probe
SIA
Air pressure switch
APS
Expansion card
EXP
Compressor
CP
Remote control (instead of air
CR
thermostat)
FLM
SR
