Application Examples

Residential Area, Curb or Building in MAN

The ZXMSG 5200 can be applied in the existing IP Phone networking, as
shown in Figure 21.

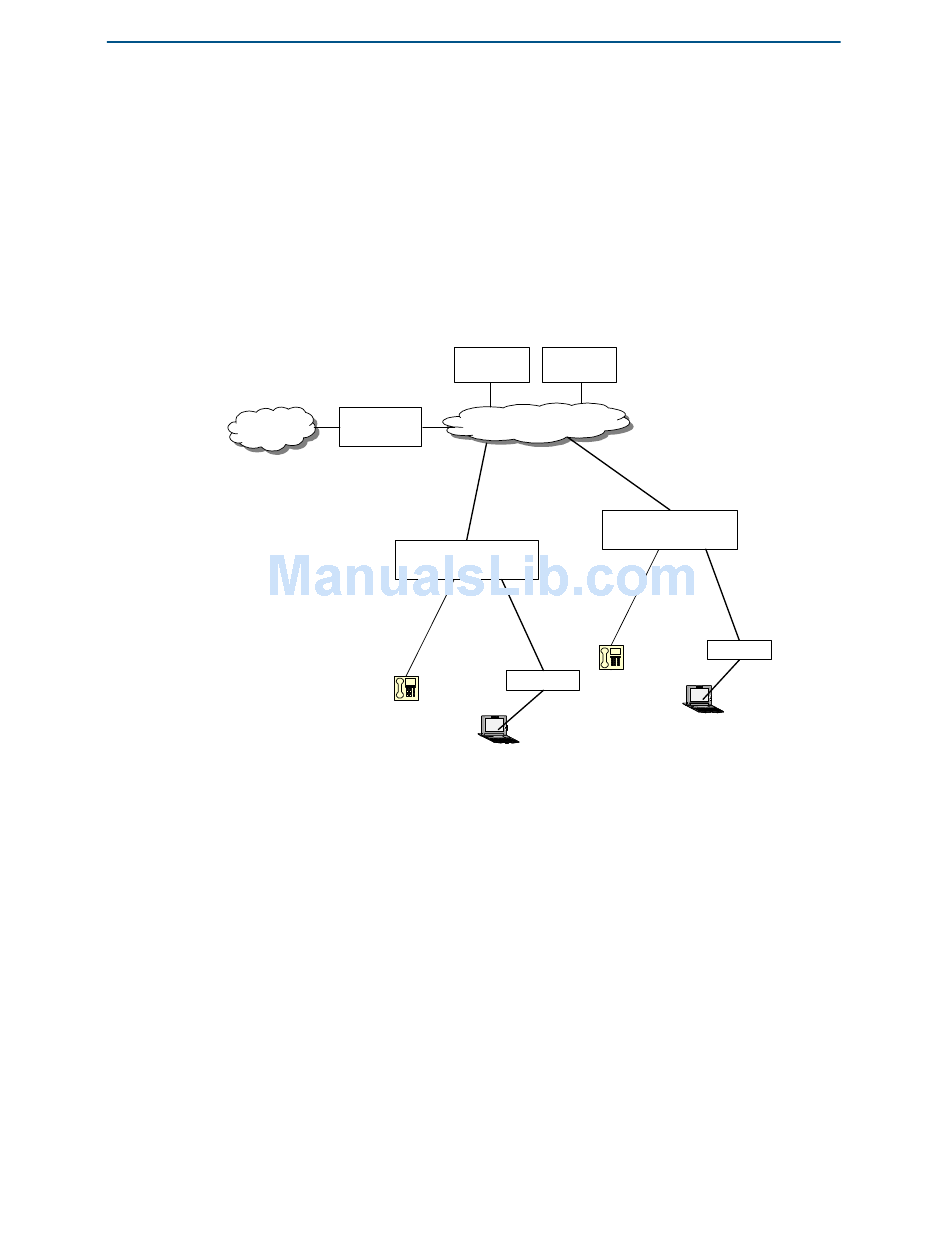

F 2 1 A Z X M S G 5 2 0 0 I P P
I G U R E P P L I C A T I O N S O F T H E I N T H E H O N E
SS 1 SS 2
H. 248 H. 248
MAN (IP/ ATM )
PSTN
TG
Interface 2
Interface 1
Building /
ZXMSG 5200
Residential area /
ZXMSG 5200
ADSL
ADSL
Z
modem
Z
modem
In such applications, the ZXMSG 5200 is located at the end of the MAN.
This networking mode enables a wide variety of services due to the
SoftSwitch network architecture. At the same time, it takes advantage of
rich bandwidth resources in the MAN. The urban calls are based on the
G.711 coding mode, so the voice quality can be well guaranteed. Since the
traffic path is the MAN, the investment in network construction is
minimized and the operation cost is cut, meeting the development trend of
networks.
