Hardware Structure

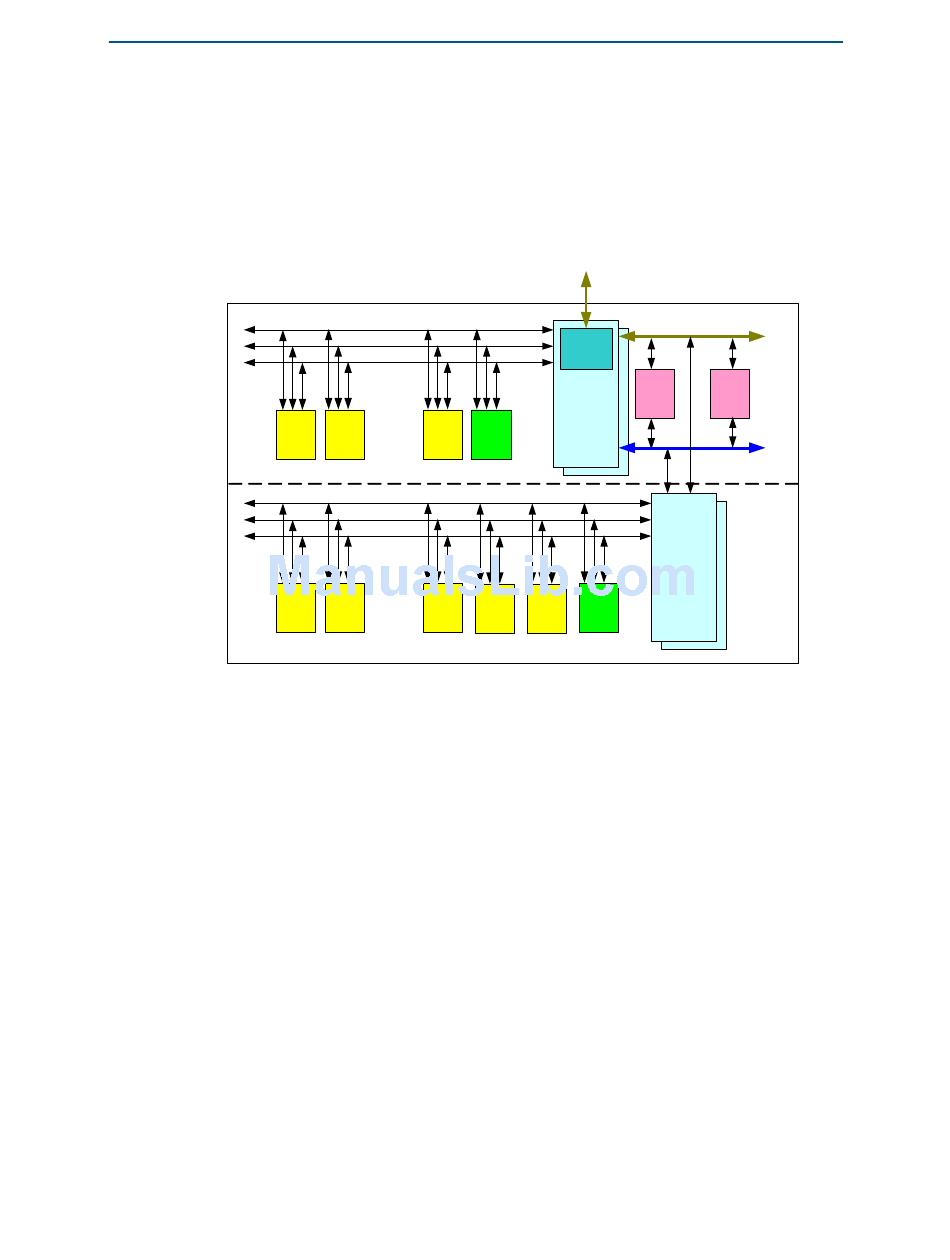

Figure 2 illustrates the hardware structure of the ZXMSG 5200.
F 2 Z X M S G 5 2 0 0 H
I G U R E
Control unit (shelf)
LC0
Subscriber unit (shelf)
LC: Line Card, including narrowband line card and broadband line card
SLC: Test Subscriber Line Card
MPR: Packet processing and resource board
The ZXMSG 5200 hardware system consists of a control unit and a
subscriber unit. The control unit can implement all system functions. The
service access expansion unit is used to implement expansion to serve
more subscribers.
Refer to Chapter 4, Hardware Structure for functions of units and boards.
