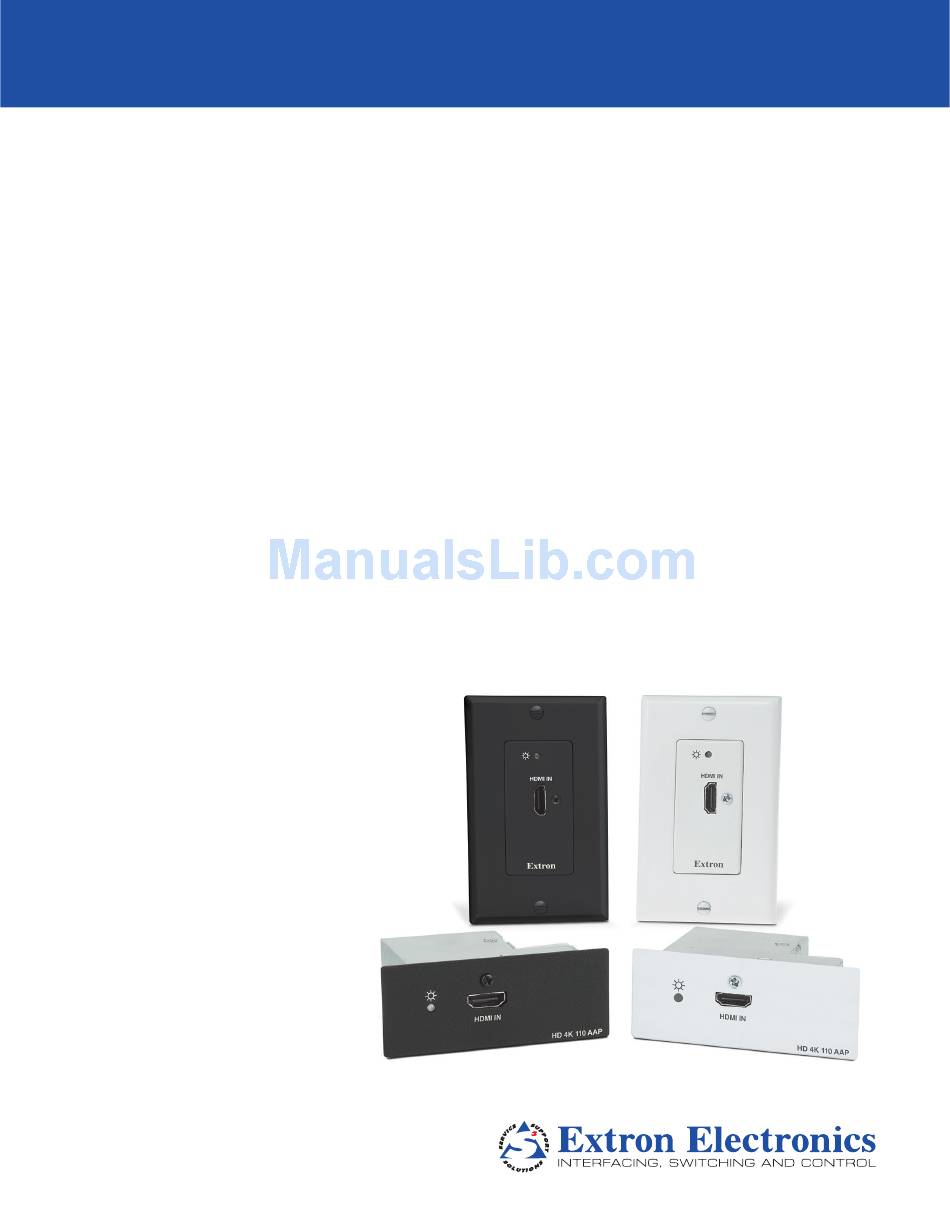

- Page 1 User Guide HDMI HD 4K 110 Series HDMI Signal Regenerator 68-2857-01 Rev. B 04 17...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVERTENZA: Il simbolo, , se usato sul prodotto, serve ad avvertire alert the user of the presence of uninsulated dangerous voltage within the l’utente della presenza di tensione non isolata pericolosa all’interno del product’s enclosure that may present a risk of electric shock. - Page 3 ついては、 エクス トロンのウェブサイ ト より 『Extron Safety www.extron.com and Regulatory Compliance Guide』 (P/N 68-290-01) をご覧ください。 Copyright © 2017 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks( ®...
- Page 4 FCC Class A Notice This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 5: Conventions Used In This Guide
Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. Specifications Availability Product specifications are available on the Extron website, www.extron.com. -
Page 6: Table Of Contents
Mounting a Wall Box ........3 Mounting a Mud Ring ........5 Mounting the HD 4K 110 D ......6 Mounting the HD 4K 110 AAP ......6 Cabling ............... 7 Rear Panel Features and Connections .... 7 Front Panel Features and Connections ... 9 Reference Information ........ - Page 7 HD 4K 110 • Contents...
-
Page 8: Introduction
Introduction This section gives an overview of the Extron HD 4K 110 Signal Regenerator and provides application examples. The following topics are covered: • About the HD 4K 110 Signal Regenerator • Application Diagrams About the HD 4K 110 Signal Regenerator The Extron HD 4K 110 is an HDMI signal regenerator that maximizes the quality of a digital signal at the beginning of its path by regenerating the signal. -
Page 9: Features
DTP CROSSPOINT 84 SERIES DIGITAL PRESENTATION MATRIX 25' HDMI Pro DTP CrossPoint 84 IPCP SA 6' HDMI Pro 12' HDMI Pro HDMI IN HD 4K 110 AAP AAP 102 AAP 102 HD 4K 110 AAP 4K Laptop 4K Flat Panel Display CATx Cable... -
Page 10: Installation
(see “Mounting a Wall Box” below, or Mounting a Mud Ring on page The HD 4K 110 AAP can also be installed in the faceplate of another Extron device that accepts double-space AAPs (see the mounting instructions for the device). •... - Page 11 Connect cables to the front and rear of the HD 4K 110 to test it (see Cabling on page 7). After testing, see instructions on page 6 for Mounting the HD 4K 110 D Mounting the HD 4K 110 AAP (depending on your model). HD 4K 110 • Installation...
-
Page 12: Mounting A Mud Ring
Connect cables to the front and rear of the HD 4K 110 to test it (see Cabling on page 7). Mounting the HD 4K 110 D After testing, follow the steps on the next page for Mounting the HD 4K 110 AAP (depending on your model). HD 4K 110 • Installation... -
Page 13: Mounting The Hd 4K 110 D
Disconnect all cables from the back of the HD 4K 110 AAP. Insert the HD 4K 110 AAP into the AAP frame. Secure the HD 4K 110 AAP to the AAP frame using the provided #4-40 nuts and captive washers (see figure 7). -
Page 14: Cabling
For best results, connect the HD 4K 110 near the HDMI source device in the system. The input and output cables to and from the HD 4K 110 should be 15 feet (4.6 m) or less. HD 4K 110 AAP To ensure transmission integrity in a long cable run, place an Extron HDMI 101 cable equalizer at the end of the run, immediately preceding the output device. - Page 15 CAUTION: The wires must be kept separate while the power supply is plugged in. Remove power before wiring. ATTENTION : Les deux cordons d’alimentation doivent être tenus à l’écart l’un de l’autre quand l’alimentation est branchée. Couper l’alimentation avant de faire l’installation électrique.
-
Page 16: Front Panel Features And Connections
Front Panel Features and Connections HDMI IN Extron HDMI IN HD 4K 110 AAP Figure 10. HD 4K 110 Front Panel Power and signal status LED — This dual-color LED lights amber when the HD 4K 110 is receiving power. When an HDMI input signal is present, the LED lights green. -
Page 17: Reference Information
Reference Information This section covers the following: Decorator-Style Template Dimensions • • Output Cable Lengths Decorator‑Style Template Dimensions To create a template, use the dimensions shown in figure 10. The drawing below is not full size. Do not scale. NOTE: Cut-out Template for HD 4K 110 D (Front View) -
Page 18: Output Cable Lengths
Output Cable Lengths Maximum Maximum Refresh Resolution distance (ft), distance (ft), Rate (Hz) powered not powered 4096x2160 (4K) 3840x2160 (UHD) 60 (4:2:0) 3840x2160 (UHD) 1080p 8/10/12 bit 1080p 10/12 bit 1080p 8 bit 1080i 1080i 720p 24/30/60 PC Rates 4096x2160 3840x2160 2560x1600 1920x1200... -
Page 19: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been aHDMIsed of such damage.
