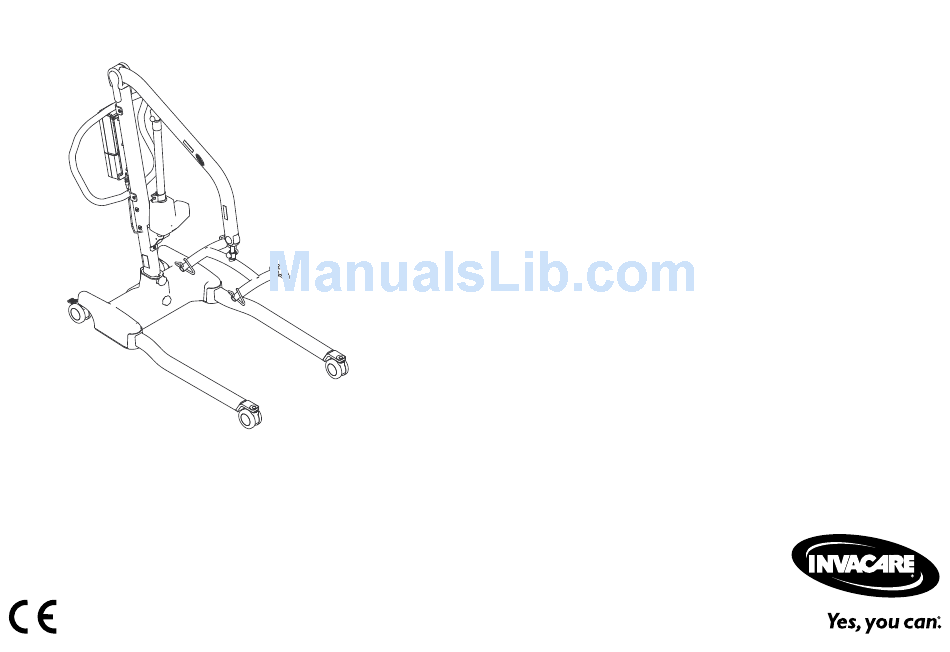

- Page 1 Invacare® Jasmine™ en Powered Lift with Powered Base User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
- Page 2 All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted. A spare parts catalog is available upon request.
-
Page 3: Table Of Contents
Contents 5.6 Performing an Emergency Stop ....23 5.7 Charging the Battery ......24 5.7.1 Battery Indicator . - Page 4 9.2 Environmental Conditions ......61 9.3 Materials ........61 9.3.1 Electric Lifts .
-
Page 5: General
1.1 Intended Use Signal words are used in this manual and apply to hazards The Invacare mobile patient lift is NOT a transport device. It or unsafe practices which could result in personal injury or is intended to transfer an individual from one seated surface property damage. - Page 6 Invacare® Jasmine™ Symbols on the Product Double Insulated, Class II equipment Refer to Product Labeling in the Safety section of the manual for the location of the symbols on the product. Type B applied part This product complies with Directive 93/42/EEC concerning medical devices.
-
Page 7: Safety
– Check ALL product components and carton for Replace parts that are corroded or damaged. damage, and test components before use. DO – Avoid using this product on an incline. Invacare NOT use product if components are damaged recommends that the product only be used on or if product is not working properly. - Page 8 – Special care MUST BE taken with people with disabilities who cannot cooperate while being lifted. – Although Invacare recommends that two assistants be used for all lifting preparation, transferring from and transferring to procedures, our equipment will permit proper operation by one assistant.
-
Page 9: Operating Information
Safety 2.2 Operating Information 2.2.1 Pinch Points and Positioning This section of the manual contains general safety information about your product. For specific safety information, refer to the appropriate section of the manual and procedures within that section. For instance, for safety information related to assembling the lift, refer to the Setup section of the manual. -
Page 10: Radio Frequency Interference
Invacare® Jasmine™ 2.3 Radio Frequency Interference WARNING! Risk of Injury or Damage Most electronic equipment is influenced by Radio Frequency Interference (RFI). CAUTION should be exercised with regard to the use of portable communication equipment in the area around such equipment, otherwise injury or damage may occur. -
Page 11: Product Labeling
Safety 2.4 Product Labeling 1195053-B... -
Page 12: Components

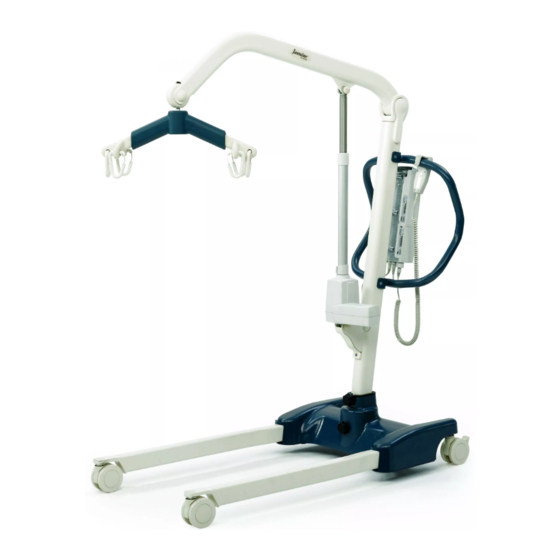

Invacare® Jasmine™ 3 Components ITEM Description Base 3.1 Main parts of the lift Front Caster Rear Caster with brake Boom Mast Hanger bar Hook for sling Actuator Manual emergency lowering handle Control unit with Battery Steering handle 1195053-B... -
Page 13: Accessories
NOT been tested by Invacare. (slings), manufactured by other companies, can Use of NON-Invacare accessories may result in be used on the Invacare patient lift range as well. injury or damage. However we do recommend: In certain instances, the use of other –... - Page 14 Invacare® Jasmine™ Available accessories • 4 point hanger bar (“Coat Hanger Bar System”), 45 or 55 cm wide • 2 point hanger bar (“Coat Hanger Bar System”), 45 or 55 cm wide • Scale to be mounted with the hanger bar Sling models for "Loop and Coat Hanger Bar System":...
-
Page 15: Setup
Setup 4 Setup Lifter User Manual Shown 4.1 Scope of Delivery Wall Charger (if equipped) Shown The items listed in the tables are included in your package. Slings are sold separately. Item Description Quantity Lift Controller with Battery Charging Cord, EU Charging Cord, UK (optional) Hanger Bar Hand Pendant... -
Page 16: Safe Assembly
– Assembly MUST be performed only by qualified 4.3 Assembling the Mast to the Base personnel. – Use only Invacare parts in the assembly of this WARNING! patient lift. The base, legs, mast, boom and Risk of Fire hanger bar are manufactured to specifications Incorrect electrical connections can cause fire. - Page 17 – Never manually raise the boom arm while using the lift. Invacare recommends two (2) individuals undertake assembly of lift components. However, one (1) skilled individual can assemble the lift components if necessary.
-
Page 18: Checking The Service Light
Invacare® Jasmine™ 4.4 Checking the Service Light 1. Put the base on a level surface so all casters make contact with the floor. 2. Press down on the tabs A to lock rear casters B. 3. Unscrew the top knob C and remove it from the base 4. -
Page 19: Attaching The Battery Charger Mounting Bracket To The Wall
Setup 4.5 Attaching the Battery Charger Mounting Bracket to the Wall Refer to your local regulations concerning proper mounting procedures. 1. Place the battery charger with mounting bracket A on the wall at the desired position. 2. With a pencil, mark the middle hole B position. 3. -
Page 20: Usage
Invacare® Jasmine™ 5.3 Closing/Opening Legs of the Lift 5 Usage WARNING! 5.1 Introduction Risk of Death, Injury or Damage Improper use of this product may cause death, The operation of the patient lift is an easy and safe injury or damage. -
Page 21: Closing/Opening Legs Of The Electric Lift
Refer to the safety information in Closing/Opening assistants. Legs of the Lift in the Usage section of the manual – Invacare recommends that the rear casters before performing this procedure. be left unlocked during lifting procedures to allow the patient lift to stabilize itself when the 1. -
Page 22: Activating A Mechanical Emergency Release
Invacare® Jasmine™ 5.5 Activating a Mechanical Emergency Release 5.5.2 Secondary Emergency Release There are two types of mechanical emergency release — primary and secondary. 5.5.1 Primary Emergency Release 1. Insert a pen into the hole labeled Emergency Up A or Emergency Down B on the control box C. -
Page 23: Performing An Emergency Stop
Usage 5.6 Performing an Emergency Stop It is recommended that the primary emergency release be used. The secondary emergency release is only a back-up to the primary emergency release. The secondary emergency release is used only to lower the patient. In cases where the primary release is either not functioning or unreachable, a secondary emergency release may be used. -
Page 24: Charging The Battery
Invacare® Jasmine™ 5.7 Charging the Battery Invacare recommends the battery be recharged daily to prolong battery life. There are two different methods to charge the battery. One method uses a power cord that attaches to the control box, the other requires the battery to be mounted to the battery charger. - Page 25 Usage Hand Pendant Battery Control Box Battery Battery State Description Indicator A A A Indicator A A A Full Charge The battery is OK — no need for charging (100–50%). The third LED is GREEN. Partial Charge The battery needs to be charged (50–25%). The second LED is YELLOW.
-
Page 26: Using A Power Cord To Charge The Battery
Invacare® Jasmine™ 5.7.2 Using a Power Cord to Charge the Battery WARNING! Risk of Death, Injury or Damage The battery is capable of being charged while attached to the lift. – DO NOT activate the emergency stop when attempting to charge the battery. The battery will not charge if the emergency stop is activated. -
Page 27: Using The Battery Charger To Charge The Battery
Usage 5.7.3 Using the Battery Charger to Charge the Battery CAUTION! Mounting the battery improperly may cause injury or damage. – Make sure there is an audible click when mounting battery on the battery charger to confirm proper mounting. 3. Place the battery on the battery charger D as shown. Make sure there is an audible click. -
Page 28: Lifting The Patient
The lift could tip and endanger the patient and WARNING! assistants. Risk of Death, Injury or Damage The Invacare mobile patient lift is NOT a transport Improper use of this product may cause death, device. It is intended to transfer an individual injury or damage. - Page 29 – ALWAYS be aware of the location of the times to push or pull the product. pendant cord in relation to the patient and – Avoid using the product on an incline. Invacare caregivers. recommends that the product only be used on –...
-
Page 30: Preparing To Lift
Invacare® Jasmine™ 6.2 Preparing to Lift 4. Open the legs of the lift. Refer to Closing/Opening Legs of the Lift in the Usage section of the manual. WARNING! Risk of Injury During transfers and lift operation, the boom can impact the patient or caregivers and cause injury. - Page 31 Lifting the Patient 5. Use the steering handle B to push the patient lift into 6. Lower the patient lift for easy attachment of the sling. position. WARNING! – When using the lift in conjunction with beds or wheelchairs, be aware of the position of the lift in relationship to those other devices so that the lift does not become entangled.
-
Page 32: Attaching The Sling To The Lift
– DO NOT use any kind of plastic back cause injury to assistants. incontinence pad or seating cushion between – Use an Invacare approved sling that is patient and sling material that may cause the recommended by the individual’s doctor, nurse patient to slide out of the sling during transfer. -
Page 33: Lifting And Transferring The Patient From A Bed
Patient section of the manual Raising/Lowering the Lift in the Usage section of the manual Invacare recommends at least two (2) individuals 2. Lift and transfer the patient. Refer to Lifting and assist in transferring the patient into and out of a Transferring the Patient in the Lifting the Patient section bed using this product. - Page 34 Invacare® Jasmine™ 4. Lower the bed to the lowest position. 6. Before moving the patient, check again to make sure that the sling is properly connected to the hooks of the hanger bar. Refer to Attaching the Sling to the Lift in the Lifting the Patient section of the manual.
- Page 35 Lifting the Patient 8. Using the handles on the sling, turn the patient so that 10. Move the patient lift with both hands firmly on the he/she faces the assistant operating the patient lift. steering handle. 9. Lower the patient so that his/her feet rest on the base 11.
- Page 36 Invacare® Jasmine™ 12. Raise or lower the lift to position the patient over the 17. Detach the sling from the hanger bar. stationary surface. Be sure to raise or lower the patient enough to clear the sides of the stationary object.
-
Page 37: Floor Transfers (Lifting From The Floor)
Lifting the Patient 6.4.1 Floor Transfers (Lifting from the Floor) 4. One assistant should have the patient bend his/her knees and raise his/her head off of the floor. This WARNING! assistant should support the patient’s head with a pillow Risk of Injury The lift can injure a patient who is on the floor or an assistant working on the floor. - Page 38 Invacare® Jasmine™ 7. Position the lift with one leg under the patient’s head 9. Attach the sling. Refer to Attaching the Sling to the Lift and the other leg under the patient’s bent knees. Keep in the Lifting the Patient section of the manual.
-
Page 39: Commode Transfer Guidelines
3. Attach the slings to the lift. Refer to Attaching the Slings to the Lift in the Lifting the Patient section in The Invacare patient lift is NOT intended as a the manual. transport device. If the bathroom facilities are... - Page 40 9. Raise the patient off of the commode. 7. Lower the patient onto the commode, leaving the sling attached to the hanger bar hooks. Invacare recommends that the sling remain connected to the hanger bar hooks during the patient’s use of either the commode chair or standard commode.
-
Page 41: Wheelchair Transfer
– The wheelchair wheel locks MUST be in a locked position before lowering the patient into the wheelchair for transport. Invacare recommends at least two (2) individuals assist in transferring the patient into and out of a wheelchair using this product. - Page 42 Invacare® Jasmine™ 1. Perform these steps in addition to those in Lifting and 4. Begin to lower the patient. Transferring the Patient From a Bed when transferring 5. With one assistant behind the chair and the other to or from a wheelchair.
-
Page 43: Troubleshooting
Troubleshooting 7 Troubleshooting 7.1 Troubleshooting SYMPTOMS FAULTS SOLUTION Patient lift feels loose. Refer to the Assembling the Mast to the Mast/Base joint loose. Base section in the manual. Lint, dirt, debris or the like in bearings. Refer to Replacing Front Casters and Casters/Brakes noisy or stiff. - Page 44 Shoulder bolt at the junction of the Refer to Checking and Tightening Mast retraction. boom and mast may not be properly Pivot section in the manual. installed. If problems are not remedied by the suggested means, please contact your dealer or Invacare. 1195053-B...
-
Page 45: Maintenance
– Regular maintenance of patient lifts and accessories is necessary to assure proper operation. – Use only Invacare parts in the assembly of this patient lift. The base, legs, mast, boom or lift arms, pump or actuator assembly and the... -
Page 46: Wear And Tear Items
The person responsible for the equipment must ensure adherence to LOLER regulations. Handle Grips Invacare reserves the right to ask for any item back that has an alleged defect in workmanship. See the Warranty that shipped with the product for specific warranty information. -
Page 47: General Maintenance
All parts of the Invacare lift are made of the best grades of steel, but metal to metal contact will wear after considerable use. Replace... -
Page 48: Daily Inspection
Invacare representative immediately. Visually inspect the patient lift. Check all parts for external damage or wear. If damage is found, do not use. Contact your Dealer or Invacare representative immediately. Check the emergency lowering function (both electrical and/or mechanical). Check all parts for external damage or wear. -
Page 49: Safety Inspection Checklist
Maintenance 8.1.7 Safety Inspection Checklist THE BOOM A person who is suitably and properly qualified and well Check all hardware and hanger bar supports. acquainted with the design, use and care of the lift should Inspect for bends or deflections. perform periodic inspections. -
Page 50: Lubricating The Lift
Invacare® Jasmine™ The Invacare lift is designed for minimum maintenance. CLEANING However, a yearly check and lubrication should ensure Clean whenever necessary. continued safety and reliability. LEG ACTUATORS Keep lift and slings clean and in good working order. Any defect should be noted and reported to your Dealer or Check for leakage. -
Page 51: Resetting The Service Light
The lift must be wiped with a moistened, firmly wrung cloth shorter than 12 months, a special handset and with ordinary household disinfectants. Only use disinfection further instructions are required. Contact Invacare to detergents approved by the facility and follow the facility order this handset and instructions. -
Page 52: Replacing The Electric Actuator
Invacare® Jasmine™ 8.5 Replacing the Electric Actuator If possible, use an assistant while removing and replacing the boom actuator. This procedure should only be performed by a qualified technician. WARNING! Risk of Death, Injury or Damage During assembly or maintenance of the lift, it may be necessary to manually raise the boom or spreader bar. -
Page 53: Replacing The Leg Actuators
Maintenance 8.6 Replacing the Leg Actuators 3. Remove the hardware that secures the bottom of the boom actuator to the boom actuator mast mounting This procedure should only be performed by a bracket. qualified technician. a. Remove the rubber caps from the locknut and socket head screw. - Page 54 Invacare® Jasmine™ 1. Test the operation of the legs: 9. To replace the actuator(s), reverse STEPS 5–7. • Press the close button on the pendant to close 10. Reverse STEPS 3–4 to replace the small base covers and the legs.
-
Page 55: Checking And Tightening Mast Pivot
Maintenance 8.7 Checking and Tightening Mast Pivot 1. To gain access to the attaching hardware, remove the covers A that are on either side of the mast B. This procedure should only be performed by a 2. Check that the locknut C is tight and secure on the qualified technician. -
Page 56: Replacing The Hanger Bar
Invacare® Jasmine™ 8.8 Replacing the Hanger Bar 1. Remove the side covers A. Support the hanger bar B from underneath This procedure should only be performed by a while removing the attaching hardware. qualified technician. 2. Remove the screw C, washers D, flanged bearings E,... -
Page 57: Replacing Rear Casters
Maintenance 8.9 Replacing Rear Casters 1. Place the lift on its side. 2. Remove the bolt A and locknut B that secure the This procedure should only be performed by a existing rear caster C and bearing D to the rear caster qualified technician. - Page 58 Invacare® Jasmine™ 1. Place the lift on its side. 2. Remove the bolt A, bearing C and locknut B that secure the existing front caster assembly D to the front caster bracket E. 3. Install the bolt through the front caster bracket and the new front caster assembly.
-
Page 59: Technical Data
Technical data 9 Technical data 9.1 Patient Lift 1195053-B... - Page 60 Invacare® Jasmine™ Weight, mast including battery and Lift Type Electric 21,2 kg hanger bar Electric Base Weight, leg section 21,8 kg Highest position (max. height of 212 cm Maximum reach at 60 cm (a) 60 cm CSP*) (k) Lowest position (min. height of CSP*)
-
Page 61: Environmental Conditions
9.3.1 Electric Lifts 20% to 90% at 30° C — Operating air humidity not condensing Invacare® is continuously working towards ensuring that the Sound pressure 45–50 dB(A) company’s impact on the environment, locally and globally, is reduced to a minimum. We comply with the current... -
Page 62: Electromagnetic Compatibility (Emc) Information
Invacare® Jasmine™ 9.4 Electromagnetic Compatibility (EMC) Information Medical Electrical Equipment needs to be installed and used according to the EMC information in this manual. This equipment has been tested and found to comply with EMC limits specified by IEC/EN 60601-1-2 for Class B equipment. -
Page 63: Electromagnetic Compatibility (Emc)
Technical data 9.4.1 Electromagnetic Compatibility (EMC) Guidance and manufacturer´s declaration – electromagnetic emission The patient lift is intended for use in the electromagnetic environment specified below. The customer or the user of the patient lift should assure that it is used in such an environment. Emissions test Compliance Electromagnetic environment - guidance... - Page 64 Invacare® Jasmine™ Guidance and manufacturer´s declaration – electromagnetic immunity The patient lift is intended for use in the electromagnetic environment specified below. The customer or the user of the patient lift should assure that it is used in such an environment.
- Page 65 Technical data Power frequency Power frequency magnetic fields should be at (50/60 Hz) levels characteristic of a typical location in a typical 3 A/m 30 A/m magnetic field commercial or hospital environment. IEC 61000-4-8 1195053-B...
- Page 66 Invacare® Jasmine™ Portable and mobile RF communications equipment should be used no closer to any part of the patient lift including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance:...
- Page 67 Technical data Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the patient lift is used exceeds the applicable RF compliance level above, the patient lift should be observed to verify normal operation.
- Page 68 Invacare® Jasmine™ For transmitters rated at a maximum output power not listed above the recommended separation, distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
-
Page 69: After Use
Maintenance section of the manual. Always provide the user manual with the reused or refurbished lift. Contact information for your local Invacare office is located inside the back cover of this manual. 1195053-B... - Page 70 Invacare nv • Autobaan 22 • B-8210 Loppem • Tel: (32) (0)50 83 10 10 • Fax: (32) (0)50 83 10 11 • belgium@invacare.com • www.invacare.be Danmark Invacare A/S • Sdr. Ringvej 37 • DK-2605 Brøndby • Tel: (45) (0)36 90 00 00 • Fax: (45) (0)36 90 00 01 • denmark@invacare.com • www.invacare.dk Deutschland Invacare GmbH •...
