MLC Plus 50/100/200 Series • Setup Guide (Continued)
ATTENTION:
If the controller will be installed into fine furniture, it is best to hire a licenced, bonded craftsperson to cut the access
•
hole and perform the physical installation so the surface will not be damaged.
S'il est prévu d'installer le contrôleur dans du beau mobilier, il est préférable de faire appel à un artisan autorisé et
•
qualifié pour couper le trou d'accès et réaliser l'installation de telle façon que la surface ne soit pas endommagée.
Follow all national and local building and electrical codes that apply to the installation site.
•
Respectez tous les codes électriques et du bâtiment, nationaux et locaux, qui s'appliquent au site de l'installation.
•
NOTE: For the installation to meet UL requirements and to comply with National Electrical Code (NEC), the MLC must be
installed in a UL Listed junction box. The end user or installer must furnish the junction box. It is not included with the
MLC Plus 50/100/200.

Americans with Disabilities Act (ADA) compliance

When planning where to install the MLC Plus 50/100/200, you may need to consider factors affecting accessibility of the
controller such as height from the floor, distance from obstructions, and how far a user must reach to press the buttons. For
guidelines, see sections 307 ("Protruding Objects") and 308 ("Reach Ranges") of the 2010 ADA Standards for Accessible Design
available at http://www.ada.gov/regs2010/2010ADAStandards/2010ADAStandards.pdf.

Site preparation

Model US Gang Size
MLC Plus 50
MLC Plus 100
MLC Plus 100 AAP
MLC Plus 200
MLC Plus 200 AAP
Mud rings, optional UL Listed junction boxes, external
junction boxes, and surface mounting boxes are available
for use with the MLC Plus. Read any installation instructions
and UL guidelines that come with the mounting devices,
protect the mounting surface to prevent damage, then
install the box or mud ring in the opening at the installation
site.
When you run cables to the mounting location, leave
enough slack for device installation. Secure the cables with
a clamp for strain relief so they do not slip back down into
the wall or furniture.
Step 3: Change a Faceplate or Button Labels (optional)
Faceplates can easily be changed, if desired. Or you can replace one or more of the labels within the buttons. Some button labels
ship with the unit. You can create and print your own customized labels using Extron Button Label Generator software.

Replacing a faceplate

To replace a faceplate:
Remove the faceplate by holding the body of the unit with one hand, gripping the sides of the faceplate with the other hand,
1.
and pulling the faceplate away from the unit.
Align the openings of the new faceplate with the buttons and knob and with the LEDs and place the faceplate against the
2.
unit. The magnetic catches fasten the faceplate onto the unit.
TIP: You can wait until the unit is mounted to the junction box or mud ring before placing the new faceplate on the unit.
2
2
2
4
3
5

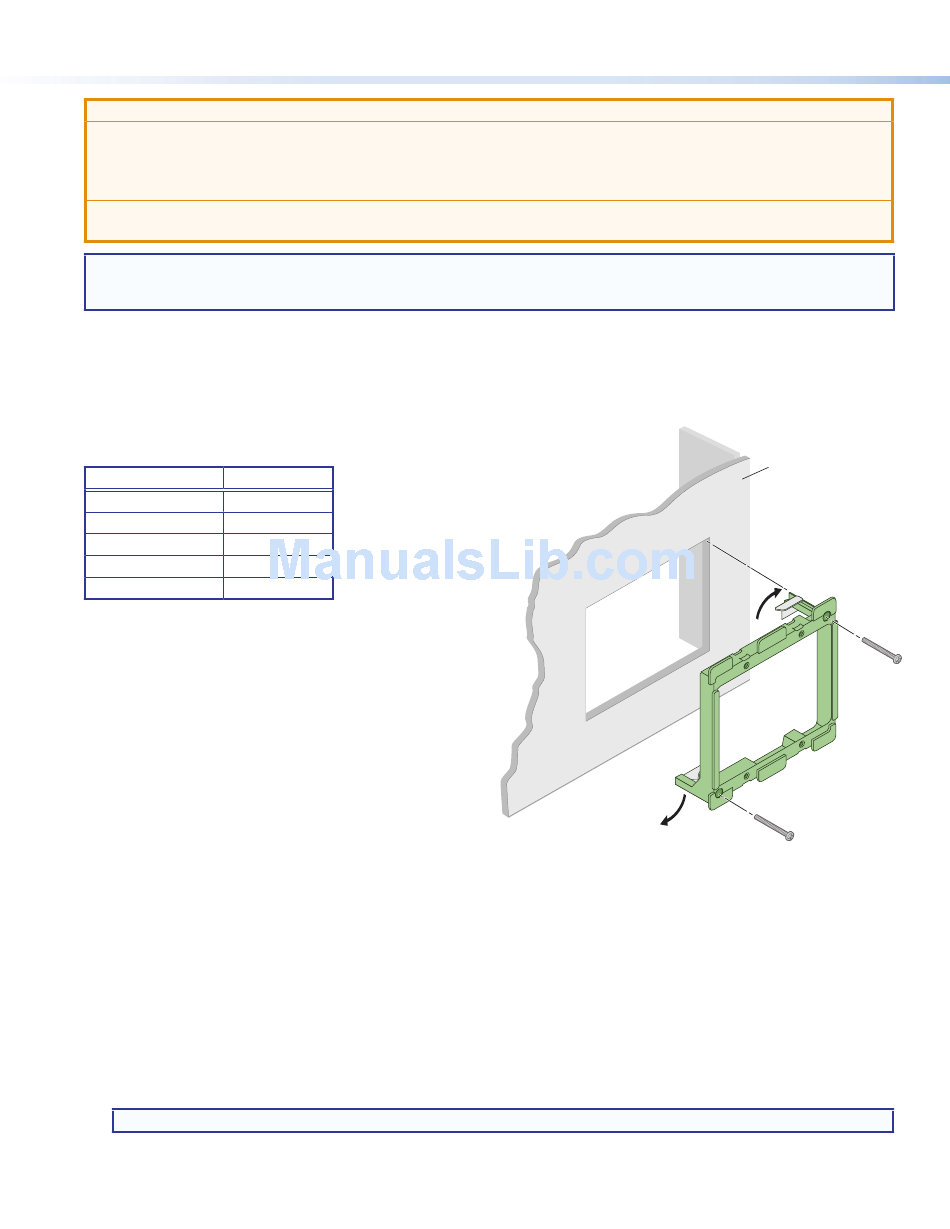

Mud Ring
Installing a Mud Ring
Figure 1.
Wall
