MLC Plus 50/100/200 Series • Setup Guide (Continued)
For non-AAP models, secure the MLC Plus to the junction box, wall or surface mounting box, or mud ring as follows (see
4.
figures 8 and 9):
Insert the included screws through the oval
a.
slots at the top and bottom of the
MLC Plus, through the plastic
spacer (if not using a
mud ring), and into
the corresponding
threaded holes in the
box or mud ring.
NOTE: If the unit is
not installed in a
mud ring, you must
install the plastic
spacer. The spacer
positions the
unit to allow the
magnetic faceplate
to attach properly
and securely.
Using a Phillips
b.
screwdriver, lightly
tighten the screws
until snug.
Wall Mouting
Bracket

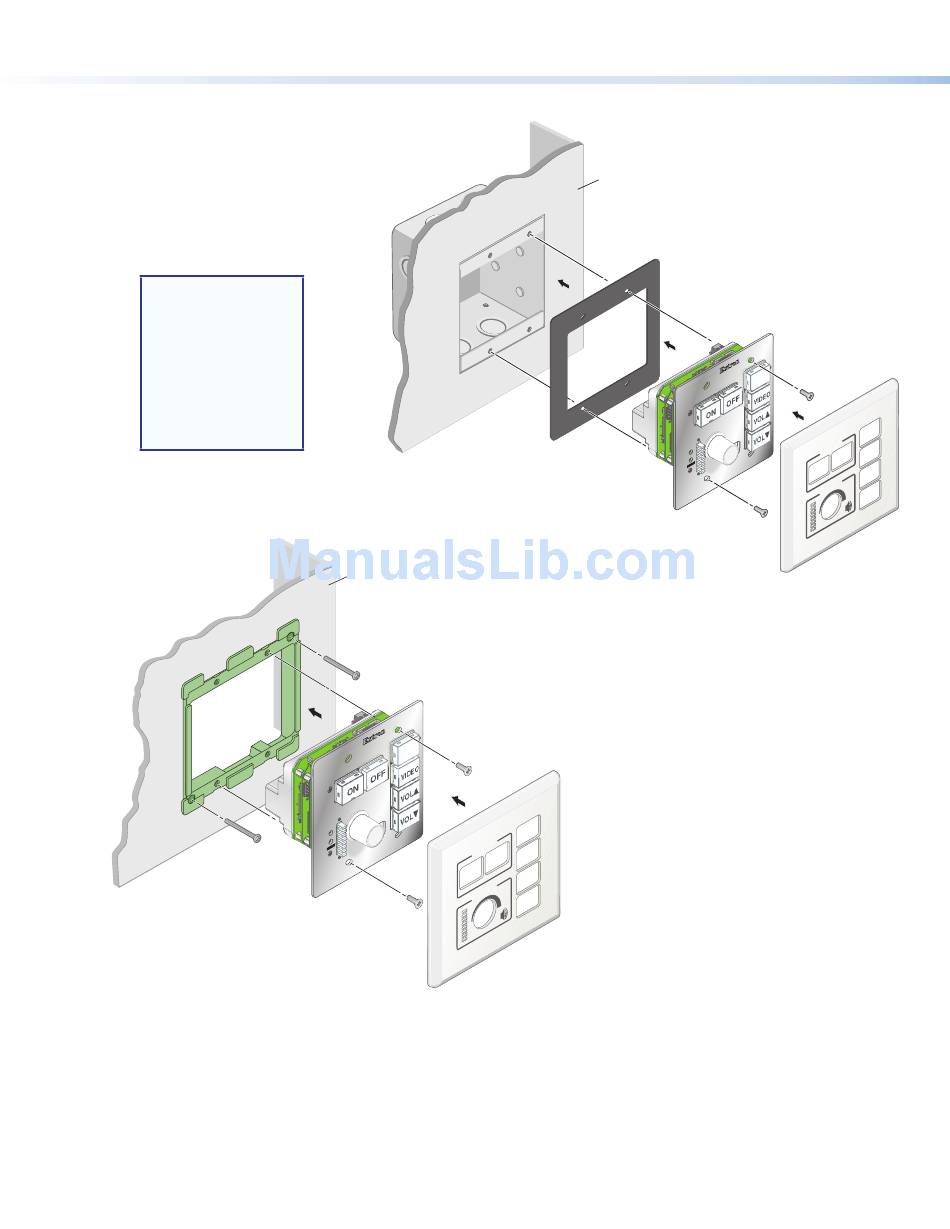

Installing the
Figure 9.
MLC Plus in a Mud Ring
Attach the faceplate to the MLC Plus: align the faceplate openings with the buttons, knob, and LEDs and place the faceplate
5.
against the unit (see
10
Wall
Box
Wall
E E
P C
MLC Plus 100 4 4
Faceplate
5 in figures 7, 8, and 9). The magnetic catches fasten the faceplate onto the front of the unit.
Wall
Plastic Spacer
MLC Plus 100
Installing the MLC Plus
Figure 8.
in a Junction Box
