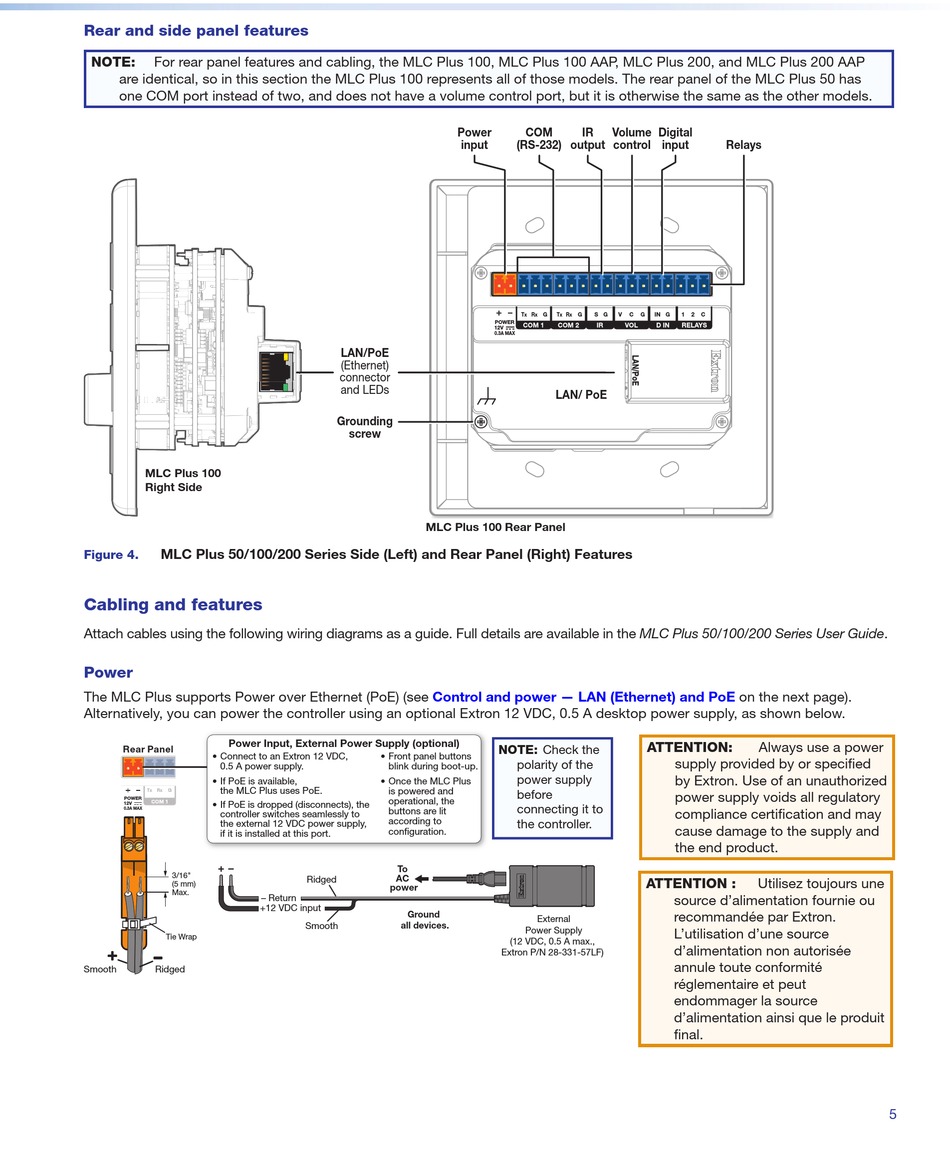

Rear and side panel features

MLC Plus 50
Right Side
NOTE: For rear panel features and cabling, the MLC Plus 100, MLC Plus 100 AAP, MLC Plus 200, and MLC Plus 200 AAP
are identical, so in this section the MLC Plus 100 represents all of those models. The rear panel of the MLC Plus 50 has
one COM port instead of two, and does not have a volume control port, but it is otherwise the same as the other models.
MLC Plus 100
Right Side
MLC Plus 50/100/200 Series Side (Left) and Rear Panel (Right) Features
Figure 4.

Cabling and features

Attach cables using the following wiring diagrams as a guide. Full details are available in the MLC Plus 50/100/200 Series User Guide.
Power
The MLC Plus supports Power over Ethernet (PoE) (see
Alternatively, you can power the controller using an optional Extron 12 VDC, 0.5 A desktop power supply, as shown below.
Power Input, External Power Supply (optional)
Rear Panel
• Connect to an Extron 12 VDC,
0.5 A power supply.
• If PoE is available,
the MLC Plus uses PoE.
Tx Rx G
POWER
COM 1
• If PoE is dropped (disconnects), the
12V
0.3A MAX
controller switches seamlessly to
the external 12 VDC power supply,
if it is installed at this port.
3/16"
(5 mm)
Max.
– Return
+12 VDC input
Tie Wrap
Smooth Ridged
(Ethernet)
connector
and LEDs
Grounding
screw
MLC Plus 50 Rear Panel
Power
input
LAN/PoE
(Ethernet)
connector
and LEDs
Grounding
screw
MLC Plus 100 Rear Panel
Control and power — LAN (Ethernet) and PoE
• Front panel buttons
blink during boot-up.
• Once the MLC Plus
is powered and
operational, the
buttons are lit
according to
con guration.
To
AC
Ridged
power
Ground
all devices.
Smooth
COM IR Volume Digital
(RS-232) output control input
Tx Rx G Tx Rx G S G V C G IN G
POWER
COM 1 COM 2 IR VOL D IN
12V
0.3A MAX
LAN/ PoE
ATTENTION:
NOTE: Check the
polarity of the
power supply
before
connecting it to
the controller.
ATTENTION :
source d'alimentation fournie ou
recommandée par Extron.
External
Power Supply L'utilisation d'une source
(12 VDC, 0.5 A max.,
d'alimentation non autorisée
Extron P/N 28-331-57LF)
annule toute conformité
réglementaire et peut
endommager la source
d'alimentation ainsi que le produit
final.
Relays
1 2 C
RELAYS
on the next page).
Always use a power
supply provided by or specified
by Extron. Use of an unauthorized
power supply voids all regulatory
compliance certification and may
cause damage to the supply and
the end product.
Utilisez toujours une
