Connecting Devices to the Video Scaler

VID2HDMITV

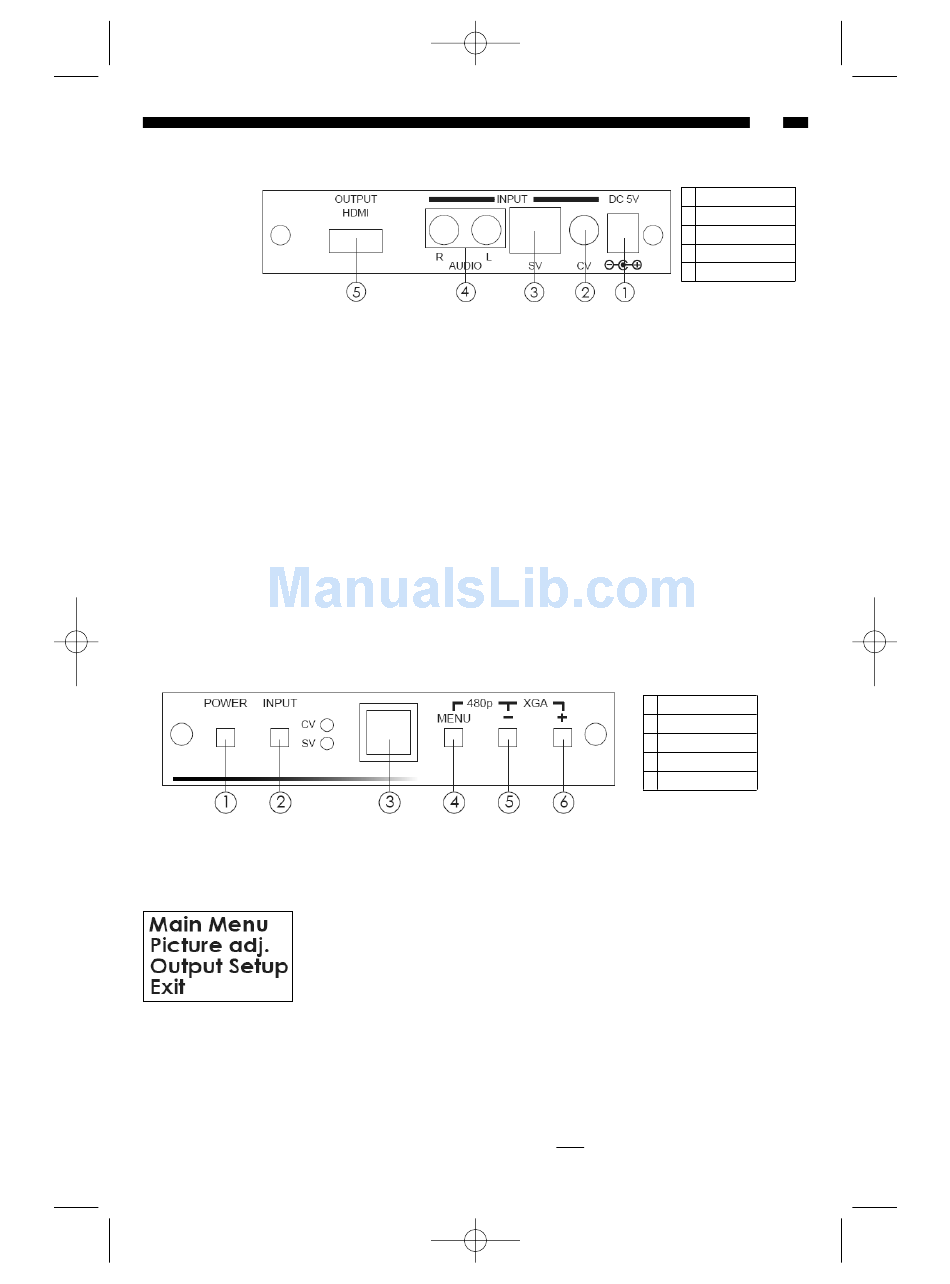

Rear Panel
1. Disconnect your high-resolution display from its existing video connections.
2. Place the video scaler near the video source and connect the power adapter to a
suitable wall outlet. Connect the opposite end to the DC 5V 2A connector on the rear
panel of the video scaler.
3. Connect the cable you used to connect your video source to its previous video display
(usually labeled as VIDEO OUT, or similar) as removed in step 1 to the CV or SV
connector on the rear of the video scaler as appropriate. The connector you use will
depend on the type of cable the video source uses.
4. As necessary, connect the audio signal source to the AUDIO L & R ports on the rear
panel of the scaler.
5. Apply power to the scaler, by pressing the POWER button.
U U s s i i n n g g t t h h e e M M e e n n u u O O p p t t i i o o n n s s
To begin customizing the video image, press the menu button to bring up the following
OSD menu:
To navigate through the OSD menu system:
1. Use the + and - keys on the front of the video scaler to move between options.
2. Use the MENU key to select an item to adjust or display a sub-menu.
3. Once an item is selected, use the + and - keys to adjust the setting.
4. When you are satisfied with your changes, press MENU to activate the setting.
5. You can continue to adjust other settings, or select Exit from the OSD menus until
the OSD disappears.
2:40 PM Page 3
3
1 DC power jack
2 Composite Video
3 S-Video
4 Audio input L/R
5 HDMI output
1 POWER
2 INPUT
3 Remote sensor
4 MENU
5 + , -
