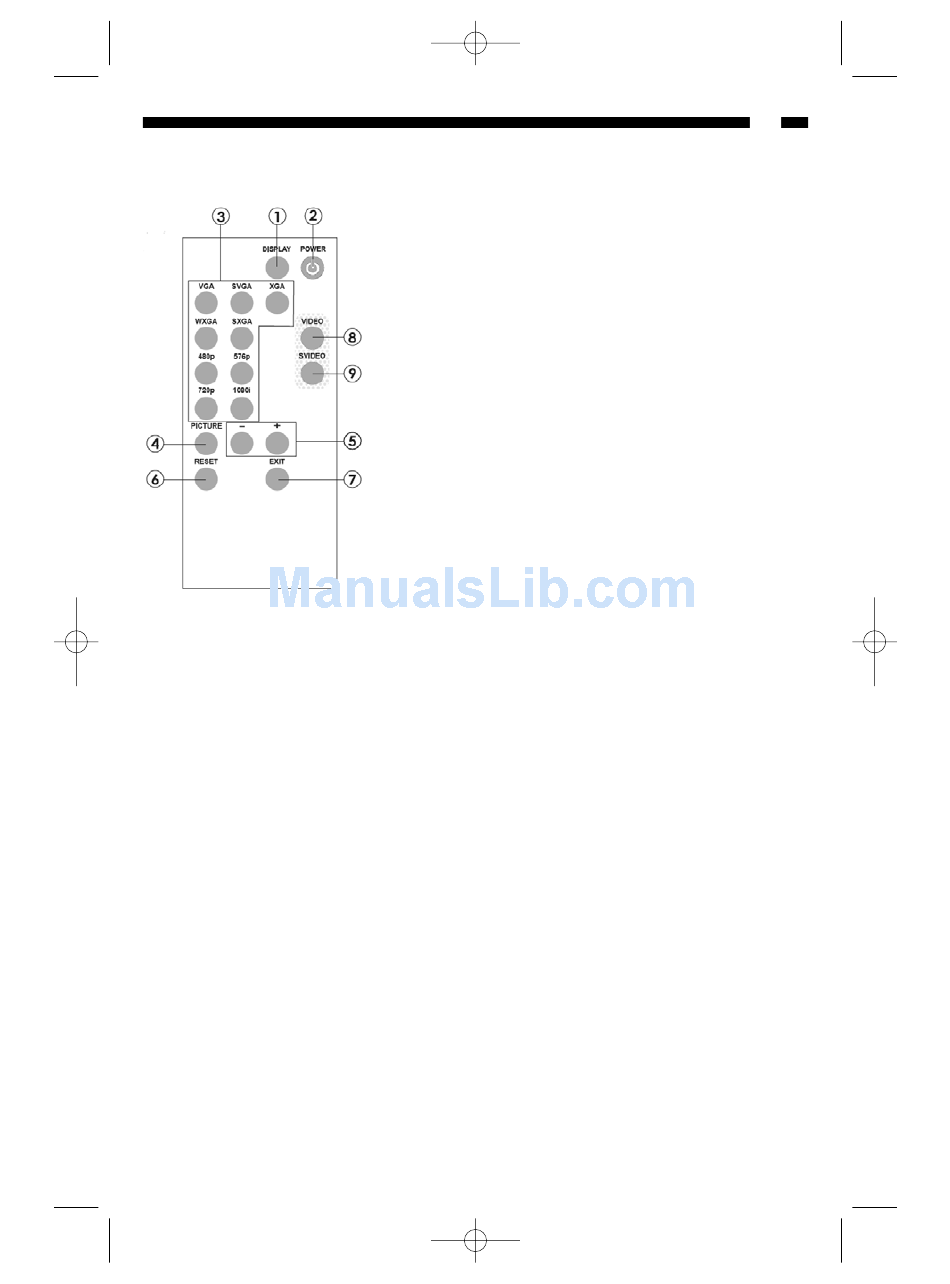

U U s s i i n n g g t t h h e e R R e e m m o o t t e e C C o o n n t t r r o o l l
2:40 PM Page 5
1. Display: Press this button to display the input source
and output resolution on the screen.
2. POWER: Power ON/OFF button.
3. VGA~1080i: Press to select your desired output
resolution.
4. PICTURE: Press this button to enter the picture adjust
submenu. Use the + and - buttons to move
the cursor up/down to the desired
parameter, press PICTURE again to
confirm.
5. +/-: Press to move the cursor selection up/down to the
desired parameter, or press to increase/decrease
the setting value.
6. RESET: Press to reset all configurations back to
factory default value.
7. EXIT: Pressing this button will exit the OSD.
8. VIDEO: Press this button to select composite video
input.
9. SVIDEO: Press the button to select SVideo input.
5
