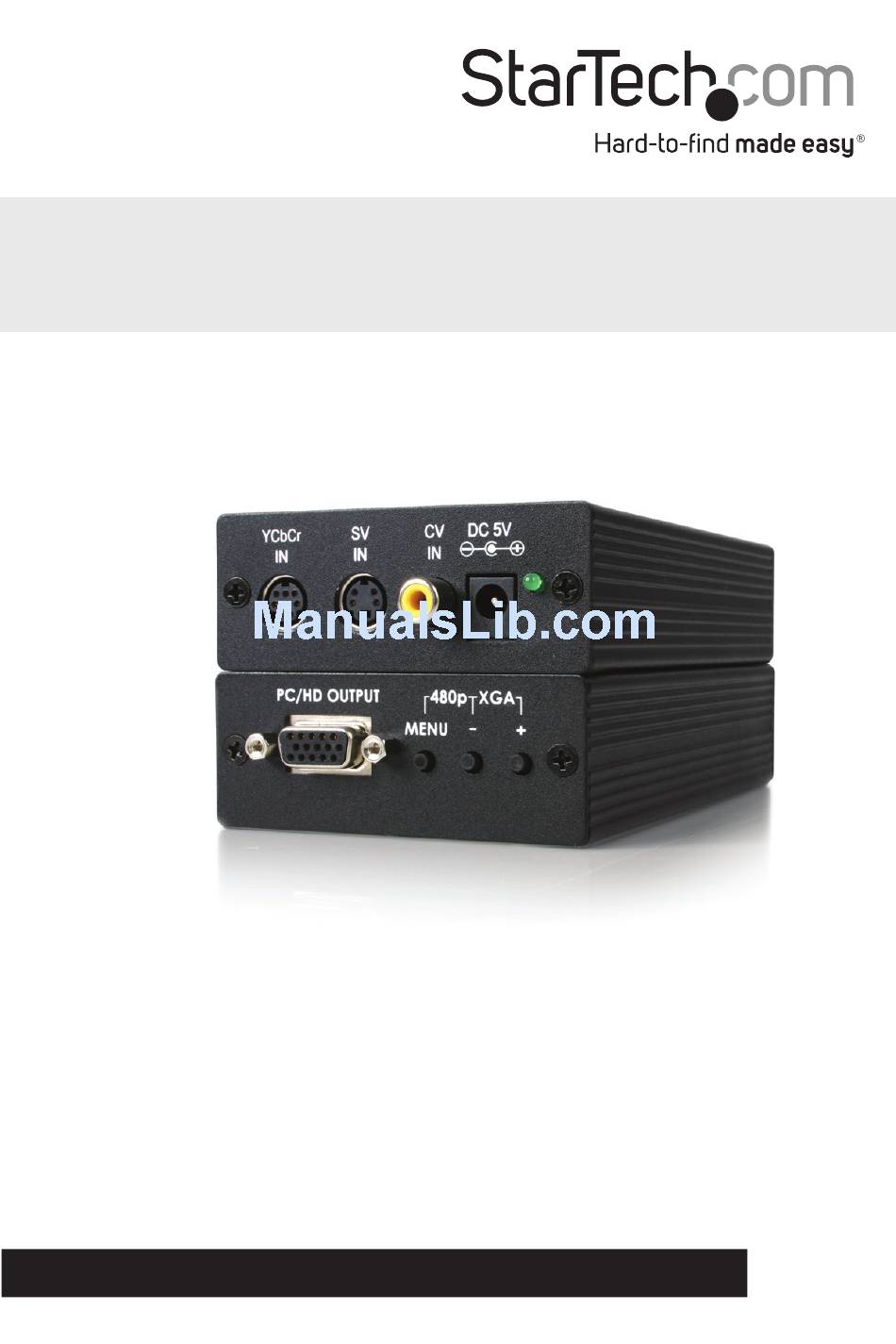

Composite and S-Video to VGA Video Converter
Composite and S-Video to DVI Video Converter
VID2VGATV
VID2DVIDTV
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 04/13/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com VID2VGATV
Summary of Contents for StarTech.com VID2VGATV
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 04/13/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ...............................1 Features .................................1 Before You Begin ..............................1 Package Contents .............................1 Site Preparation ............................1 Connecting Devices to the Video Scaler...................2 Using the Manu Options ..........................3 Selecting a video source ........................3 Using the menu system ........................3 Troubleshooting ...............................5 Specifications ..............................6 Supported Video Output Modes ......................7 Technical Support ............................8... -
Page 4: Introduction
Introduction Thank you for purchasing a StarTech.com video scaler. This device is designed to convert the output from a video source (DVD, video game console, VCR) and scale it for output to high- definition displays--including plasma TVs and LCD monitors--while maintaining the clarity of the image. -
Page 5: Connecting Devices To The Video Scaler

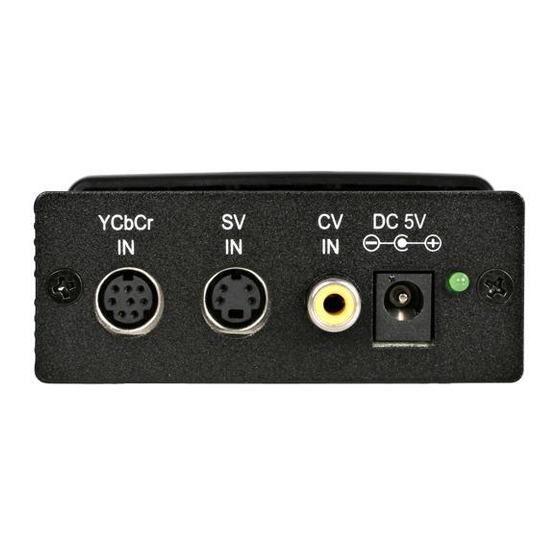

8-pin DIN connector on the YCbCr IN port on the video scaler. If you are using the VGA model (VID2VGATV): 5. Using the provided HD-15 male/male VGA cable, connect one end to the PC/HD OUTPUT port on the front panel of the video scaler. -
Page 6: Using The Manu Options
Using the Menu Options The video scaler uses an intuitive on-screen display (OSD) system that allows you to fine-tune the video output to the display you are using. Selecting a video source By default, the video scaler selects an output setting of XGA (1024 x 768 pixels, 60 Hz). While this setting should display an image on most computer monitors, high-definition televisions often support a different set of resolutions. - Page 7 Using the menu system The video scaler automatically interprets the input resolution and scales it to the output resolution selected in the menu system. While the default settings will provide an image, the video scaler offers several settings that will allow you to adjust the output signal for the best possible result.
-
Page 8: Troubleshooting
NOTE: The System Information OSD menu does not allow you to modify any settings and shows the current state of the video scaler settings. NOTE: The Timing option under the Display menu allows you to adjust the output resolution and frequency of the video scaler. -
Page 9: Specifications
Specifications VID2VGATV VID2DVIDTV Video @ 1V p-p, 75 ohm, Y @ 1V p-p, 75ohm Input Signal Levels Color @ 0.7V p-p, 75 ohm, YCbCr, RGBH Output Format YPbPr / HDTV RGBHV Output Connector HD15 female 29-pin D-Shell Digital RGB @ 0.7v p-p, H&V Sync @ 3V p-p, Output Signal Y @ 1V p-p, Pb, Pr @ 0.7V p-p, 75 ohm... -
Page 10: Supported Video Output Modes
Supported Video Output Modes PC Resotultions Vert Rate Format Scan Type VGA 640 x 480 50/60/72/75/85 Hz. RGBHV Progressive SVGA 800 x 600 50/56/60/72/75/85 Hz. RGBHV Progressive XGA 1024 x 768 50/60/70/75/85 Hz. RGBHV Progressive WXGA 1280 x 768 50/60 Hz. RGBHV Progressive SXGA 1280 x 1024... -
Page 11: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 12 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
