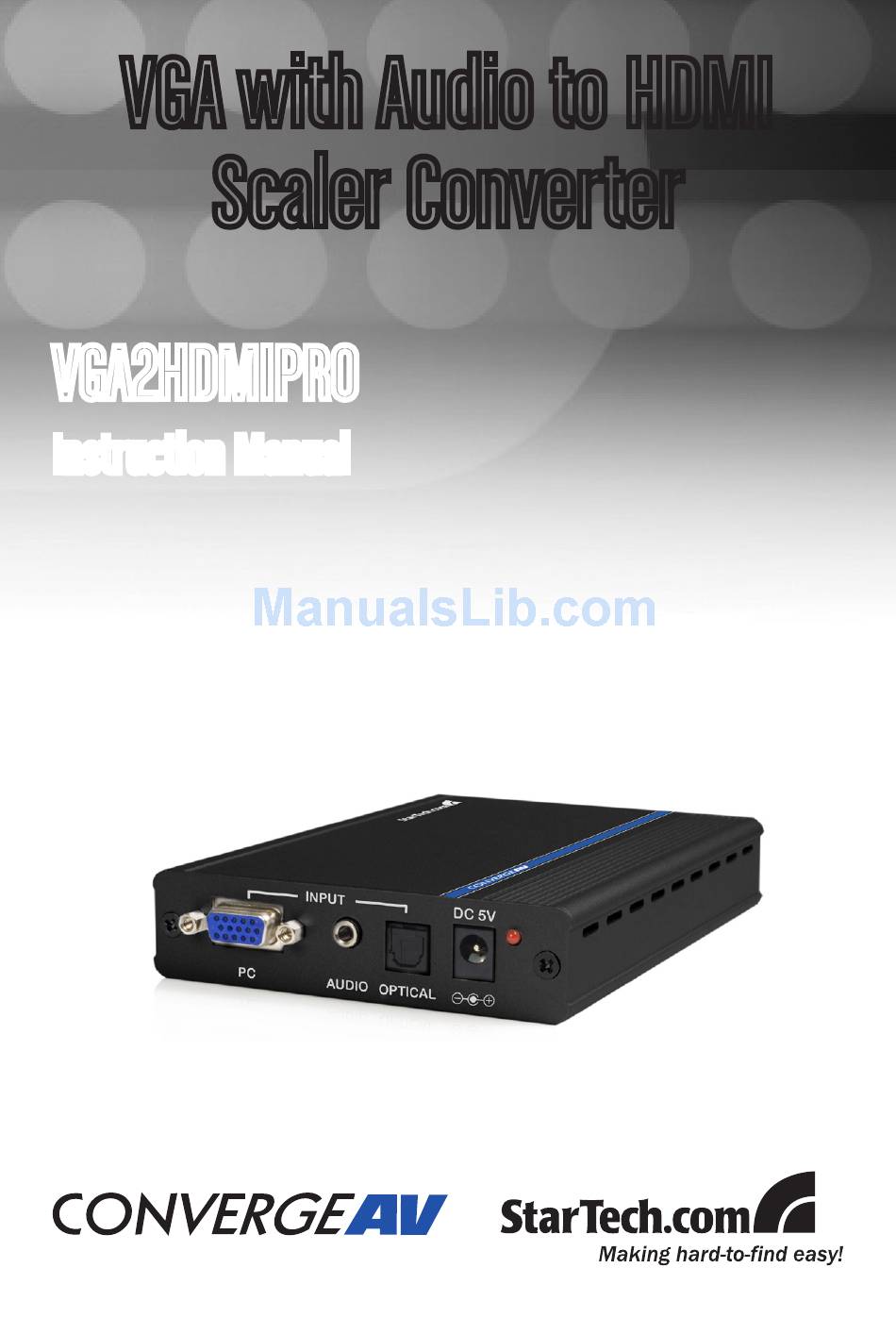

- Page 1 VGA with Audio to HDMI Scaler Converter VGA2HDMIPRO Instruction Manual...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an en- dorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Instruction Manual Instruction Manual Table of Contents Introduction ..............1 Features ..................1 Package Contents ...............1 Operation Controls and Functions ........ 2 Front Panel ..................2 Rear Panel ...................3 Connection and Installation .......... 3 OSD Operation ..............4 Reset Function ..............5 Specifications .............. -
Page 4: Introduction
DVI or HDMI video signals. Featuring a convenient on-screen display menu and automatic native res- olution detection, the VGA2HDMIPRO VGA with Audio to HDMI Scaler/ Converter is easy to setup and ensures compatibility with most displays with support for input and output resolutions of up 1900x1200 / 1080p. -
Page 5: Operation Controls And Functions
Instruction Manual Operation Controls and Functions Front Panel PC Input: Connect the D-Sub (15-pin) VGA PC input port to the DB15 VGA output port of your source equipment. Audio Input: Connect the 3.5mm jack input port to the analog audio port of your source equipment. -
Page 6: Rear Panel
Instruction Manual Rear Panel HDMI Output: Connect the HDMI output port to the HDMI input port of your display. TOSLink (Optical Fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. Audio Output: Connect the PC 3.5mm jack output port to the analog audio input port of your equipment. -
Page 7: Osd Operation
Instruction Manual OSD Operation 1st Tier Option 2nd Tier Option Adjustment CONTRAST 0 ~ 100 Contrast Level BRIGHTNESS 0 ~ 100 Brightness Level 0 ~ 100 Hue Level SATURATION 0 ~ 100 Saturation Level FINETUNE SHARPNESS 0 ~ 100 Sharpness Level EXIT Back to 1st Tier 0 ~ 100 Red Colour Level... -
Page 8: Reset Function
Instruction Manual 1st Tier Option 2nd Tier Option Adjustment HPOSITION 0 ~ 100 OSD Horizontal Position VPOSITION 0 ~ 100 OSD Vertical Position TIMER 0 ~ 100 OSD Existing Time (sec.) BACKGROUND 0 ~ 100 OSD Transparency Level EXIT Back to 1st Tier SOURCE (Input Interface) INPUT (Input Resolution) INFORMATION... -
Page 9: Specifications
Instruction Manual Specifications General Specifications Specification VGA2HDMIPRO 1 x D-Sub 15-pin (VGA Connector) Input Ports 1 x 3.5mm Jack 1 x TOSLink (optical fiber) 1 x HDMI Output Ports 1 x 3.5mm Jack 1 x TOSLink (optical fiber) 5V/2.6A DC (US/EU Standards, CE/... -
Page 10: Supported Resolutions
Instruction Manual Supported Resolutions PC Input HDMI Output SD/HD 480I/576I (NTSC/PAL) 480P/576P 720P@(50/60) 1080I@(50/60) 1080P@(50/60) VGA@(60/72/75/85) SVGA@(56/60/72/75/85) XGA@(60/70/75/85) SXGA@(60/75/85) UXGA@60 WXGA@60(1280x800) WSXGA@60(1680x1050) WUXGA@60(1920x1200) -
