- Page 1 VCSVIDVGA.qxd 7/21/05 5:00 PM Page 1 VIDEO CONVERTER Video to VGA Converter for Panasonic KVS JS8000 VCSVIDVGA Instruction Guide * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 VCSVIDVGA.qxd 7/21/05 5:00 PM Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
VCSVIDVGA.qxd 7/21/05 5:00 PM Page 1 Table of Contents Introduction ............2 Features . -
Page 4: Introduction

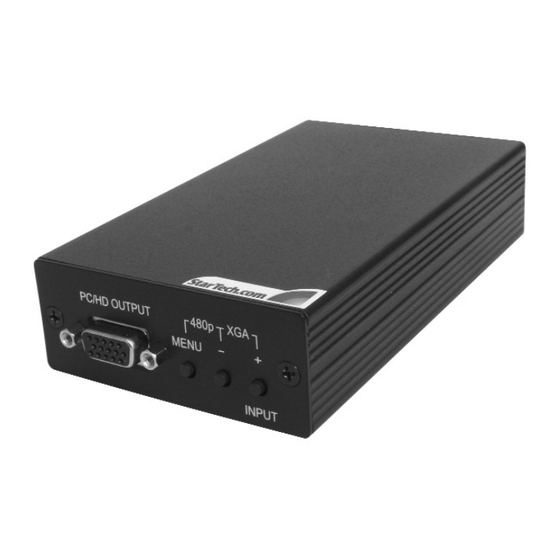

Page 2 Introduction Thank you for purchasing a StarTech.com video converter. This device is designed to convert the output from a video source (DVD, video game console, VCR) and scale it for output to high-definition displays--including plasma TVs and LCD monitors--while maintaining the clarity of the image. -
Page 5: Connecting Devices To The Video Converter
VCSVIDVGA.qxd 7/21/05 5:00 PM Page 3 Connecting Devices to the Video Converter Rear Panel Front Panel 1. Disconnect your high-resolution display from its existing video connection. 2. Disconnect your video source (i.e. DVD player) from its existing video connection. 3. Place the video converter near the video source and connect the power adapter to a suitable wall outlet. -
Page 6: Using The Menu Options
VCSVIDVGA.qxd 7/21/05 5:00 PM Page 4 Using the Menu Options The video converter uses an intuitive on-screen display (OSD) system that allows you to fine-tune the video output to the display you are using. Selecting a video source By default, the video converter selects an output setting of XGA (1024 x 768 pixels, 60 Hz). - Page 7 VCSVIDVGA.qxd 7/21/05 5:00 PM Page 5 steps you followed under “Selecting a video source” to reset the video converter back to a compatible setting. Picture Adjust To activate the menu system, press the MENU key on the front of the Display video converter once.
-
Page 8: Troubleshooting
VCSVIDVGA.qxd 7/21/05 5:00 PM Page 6 Troubleshooting Problem: I can’t see an image from the video source or the OSD. Cause: The input setting or output timing (resolution and refresh rate) is incorrect. Resolution: a) Adjust the settings back to the default setting for your display type (see page 4) and reselect the input type as necessary. -
Page 9: Specifications
VCSVIDVGA.qxd 7/21/05 5:00 PM Page 7 Specifications VCSVIDVGA Input Signal Level Video @ 1V p-p, 75 ohm, Y @ 1V p-p, 75ohm Color @ 0.7V p-p, 75 ohm, YCbCr, RGBH Output Format YPbPr / HDTV Output Connector HD15 female Output Signal RGB @ 0.7v p-p, H&V Sync @ 3V p-p,... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 VCSVIDVGA.qxd 7/21/05 5:00 PM Page 9 Revised: July 21, 2005 (A)
