Connecting Devices to the Video Scaler

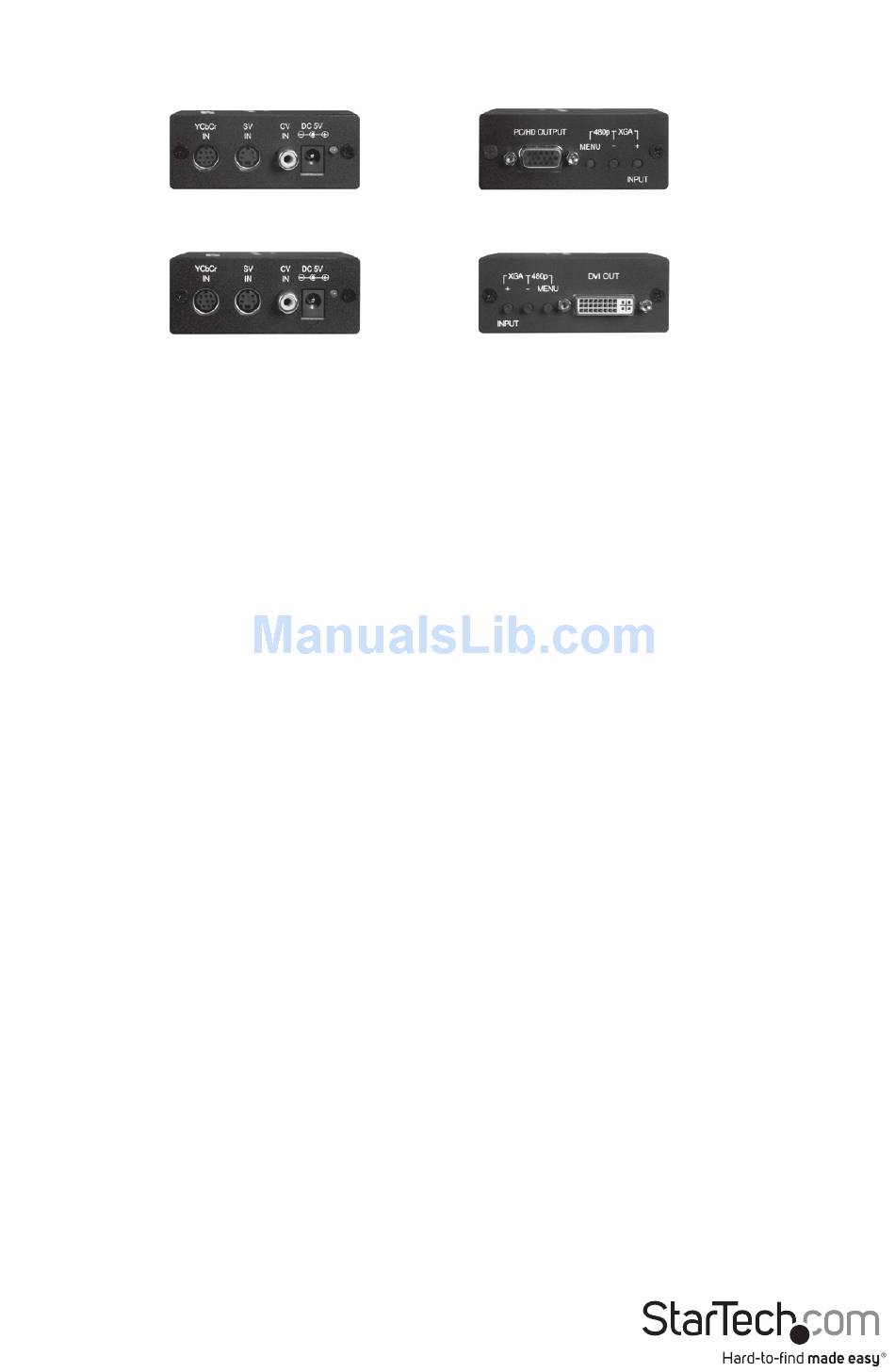

Rear Panel (VID2VGATV)
Rear Panel (VID2DVIDTV)
1. Disconnect your high-resolution display from its existing video connection.
2. Disconnect your video source (i.e. DVD player) from its existing video connection.
3. Place the video scaler near the video source and connect the power adapter to a suitable wall
outlet. Connect the opposite end to the DC 5V connector on the rear of the video scaler.
4. Connect the cable you used to connect your video source to its previous video display
(usually labeled as VIDEO OUT, or similar) as removed in step 2 to the YCbCr IN, SV IN, or CV IN
connector on the rear of the video scaler as appropriate. The connector you use will depend
on the type of cable the video source uses. If your device uses a YCbCr cable, you will need to
use the provided adapter to convert the connectors to the 8-pin DIN connector on the YCbCr
IN port on the video scaler.
If you are using the VGA model (VID2VGATV):
5. Using the provided HD-15 male/male VGA cable, connect one end to the PC/HD OUTPUT
port on the front panel of the video scaler.
6. Connect the opposite end of the VGA cable to the VIDEO IN (or similar) connector that you
removed in step 1.
If you are using the DVI model (VID2DVIDTV):
7. Using the provided DVI-D male/male cable, connect one end to the DVI OUT port on the front
panel of the video scaler.
8. Connect the opposite end of the DVI cable to the VIDEO IN (or similar) connector that you
removed in step 1.
Instruction Manual
Front Panel (VID2VGATV)
Front Panel (VID2DVIDTV)
