  • Page 1 VGA to Composite/S-Video Converter VGA2VID...
  • Page 2 StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowl- edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all...
  • Page 3: Table Of Contents

    Instruction Manual Instruction Manual Table of Contents Introduction ................... 1 Features ..................1 Package Contents ...............1 Hardware Guide ................2 Front Panel ..................2 Rear Panel ...................2 Side Panel ...................3 Troubleshooting ................3 Technical Specifications ............... 4 Technical Support ................. 5 Warranty Information ..............5...
  • Page 4: Introduction

    Instruction Manual Introduction Thank you for purchasing a StarTech.com High Resolution VGA to Com- posite or S-Video Converter. This simple hardware solution allows you to convert a VGA/PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display.
  • Page 5: Hardware Guide

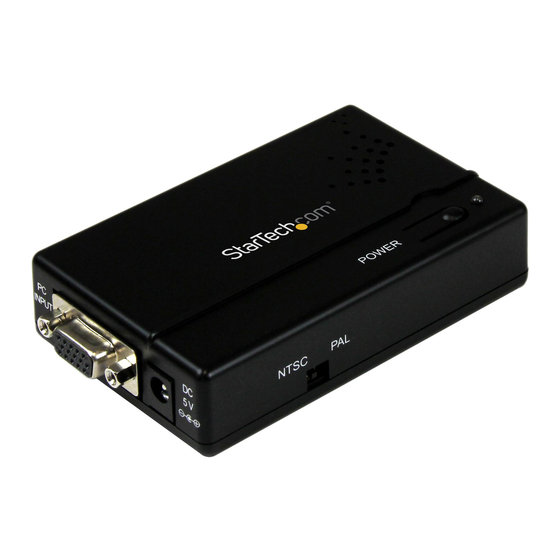

    Instruction Manual Hardware Guide Front Panel Power : Press to turn power On and Off. PC input VGA connector DC power supply Rear Panel S-Video ouput connector Composite Video Output RCA connector Underscan/Overscan: Switch the button to underscan/overscan the picture...
  • Page 6: Side Panel

    Make sure that other electronic devices are working correctly. System may be in Press the power button On/Off LED is red standby mode. on the VGA2VID Check that the A/V A/V connection may cables are connected be loose. securely Ensure that the correct...
  • Page 7: Technical Specifications

    Instruction Manual Technical Specifications Input ports Output ports Composite/S-video Power Supply 5V DC Dimensions 100(W) x 64(D) x 18.5(H) Weight Operating Tempera- Operating from 0°C ~ 70°C ture...
  • Page 8: Technical Support

    Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or...
