Instruction Manual
VGA to S-Video and Composite
Video Converter
VGA2VID
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/09/2012
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com VGA2VID
Summary of Contents for StarTech.com VGA2VID
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/09/2012...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... - Page 3 Table of Contents Introduction ....................1 Packaging Contents ..........................1 Features ................................ 1 Hardware Guide ..................2 Front Panel ..............................2 Back Panel ..............................2 Side Panel ..............................2 Specifications ..................3 Troubleshooting ..................3 Technical Support ..................4 Warranty Information ................4 Instruction Manual...
-
Page 4: Packaging Contents
Introduction Thank you for purchasing a StarTech.com High Resolution VGA to Composite or S-Video Converter. This simple hardware solution allows you to convert a VGA/ PC video signal into a Composite or S-Video signal for use with a CRT or flat panel display. -
Page 5: Hardware Guide

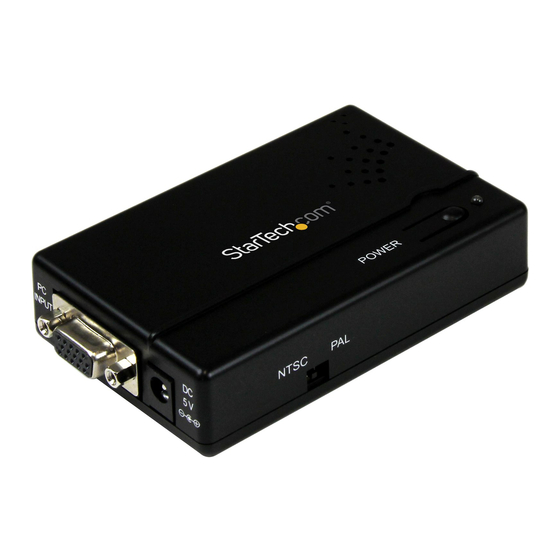

Hardware Guide Front Panel 1. Power: Press to turn power On and Off. 2. PC Input VGA connector. 3. DC power supply Back Panel 1. S-Video output connector 2. Composite Video Output RCA connector 3. Underscan/Overscan: Switch the button to underscan/overscan the picture Side Panel Used to switch between NTSC or PAL system. -
Page 6: Troubleshooting
Specifications Input Connectors 1 x VGA (15 pin; High Density D-Sub) Female 1 x Composite Video (1 x RCA) Female Output Connectors 1 x S-Video (4 pin; Mini-DIN) Female Power Supply 5V DC, center positive Operating Temperature 0°C ~ 70°C (32°F to 158°F) Dimensions (LxWxH) 100.0mm x 64.0mm x 18.5mm Weight... -
Page 7: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 8 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
