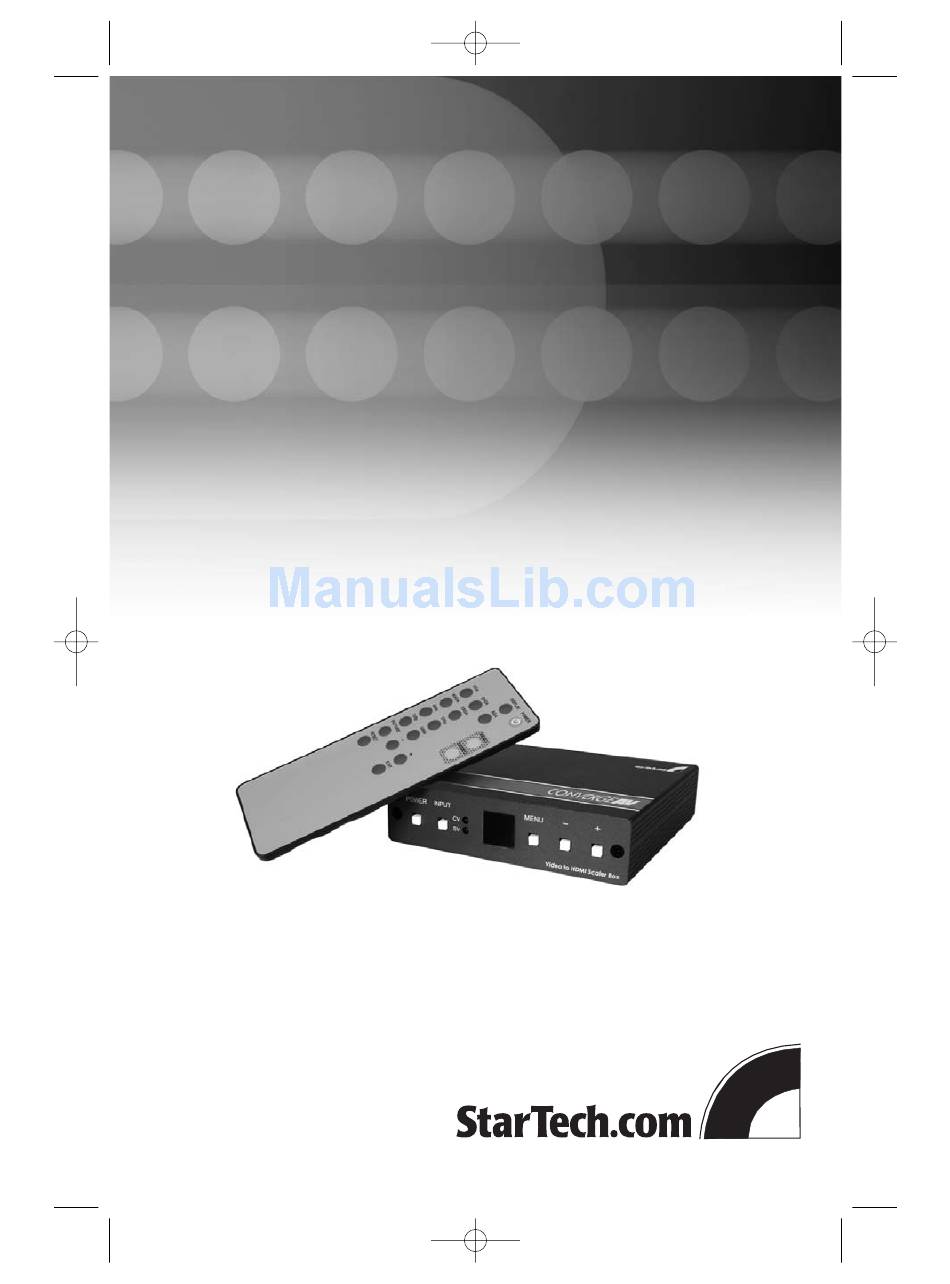

- Page 1 VID2HDMITV.qxp 9/13/2006 2:40 PM Page 1 Video Scaler Composite/S-Video & Stereo Audio HDMI Scaler / Converter VID2HDMITV Instruction Guide * Actual product may vary from photo The Professionals’ Source For Hard-to-Find Computer Parts...
- Page 2 VID2HDMITV.qxp 9/13/2006 2:40 PM Page 2 FCC COMPLIANCE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
VID2HDMITV.qxp 9/13/2006 2:40 PM Page 1 T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . 2 Features . -
Page 4: Introduction
Page 2 Introduction Thank you for purchasing a StarTech.com video scaler. This device allows you to convert composite, S-Video and accompanying audio signals to an HDMI connection, for use on a PC or high definition display. Offering a variety of output video resolutions, VID2HDMITV also provides an on-screen display menu, to help simplify fine tuning and picture adjustment. -
Page 5: Connecting Devices To The Video Scaler
VID2HDMITV.qxp 9/13/2006 2:40 PM Page 3 Connecting Devices to the Video Scaler 1 DC power jack 2 Composite Video VID2HDMITV S-Video Rear Panel 4 Audio input L/R HDMI output 1. Disconnect your high-resolution display from its existing video connections. 2. Place the video scaler near the video source and connect the power adapter to a suitable wall outlet. -
Page 6: Picture Address
VID2HDMITV.qxp 9/13/2006 2:40 PM Page 4 Picture Adjust Use the +,- buttons to move the cursor to the desired parameter. Press the MENU button to confirm your selection. At this point, the selected parameter will turn red, and you can use the +,- buttons to increase or decrease the value of the parameter. Once the necessary adjustments have been made, Press the MENU button to apply the change. - Page 7 VID2HDMITV.qxp 9/13/2006 2:40 PM Page 5 U U s s i i n n g g t t h h e e R R e e m m o o t t e e C C o o n n t t r r o o l l 1.
-
Page 8: Troubleshooting
VID2HDMITV.qxp 9/13/2006 2:40 PM Page 6 T T r r o o u u b b l l e e s s h h o o o o t t i i n n g g Problem: No image is being displayed from the video source or the OSD. -
Page 9: Specifications
VID2HDMITV.qxp 9/13/2006 2:40 PM Page 7 S S p p e e c c i i f f i i c c a a t t i i o o n n s s General specifications Video@1Vp-p, 75 ohm, Input signal levels Y@1 Vp-p, 75 ohm Color@ 0.7 Vp-p, 75 ohm... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
