StarTech.com VID2VGATV3 Quick Start Manual

Composite and S-Video to VGA Video Converter

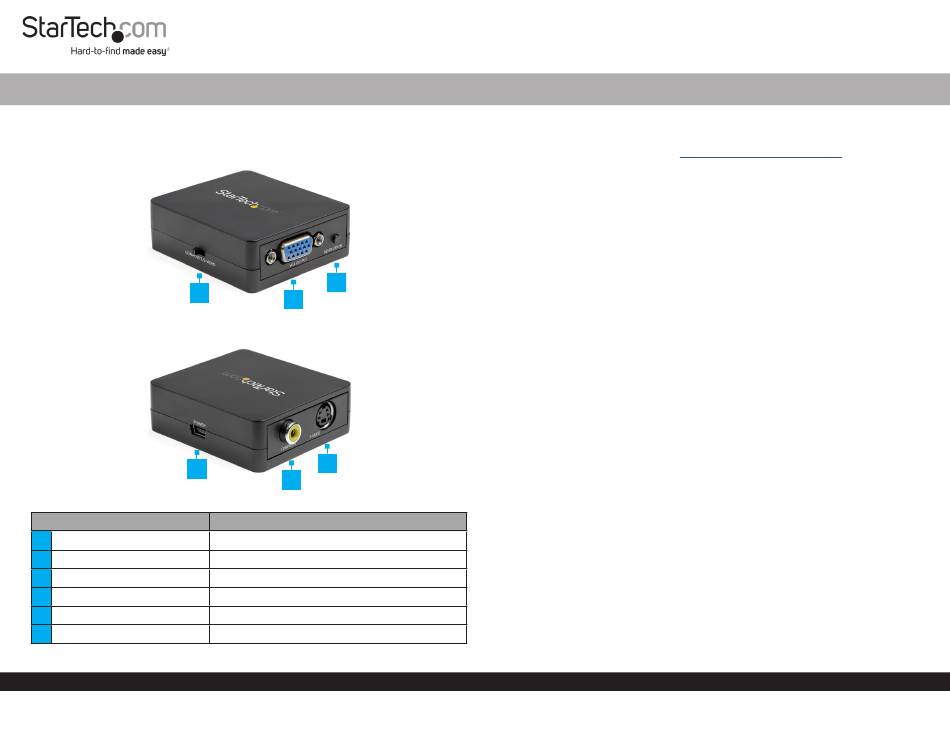

Product Diagram (VID2VGATV3)

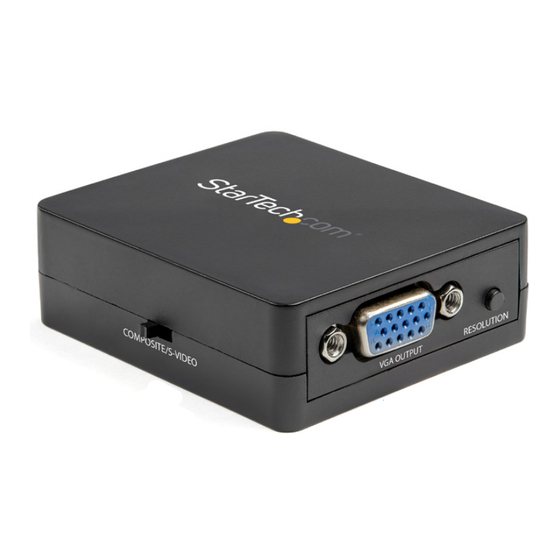

Front and Side Profile
1
Rear and Side Profile
4
Component
1 Video Input Selection Switch
2 VGA Output Port
3
Resolution Selection Button
4
Power Port
5 Composite Video Input Port
6
S-Video Input Port
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3
2
6
5
Function
• Select the Source Device Video Signal
• Connect a VGA Video Display Device
• Select the Output Resolution
• Connect a Power Source
• Connect a Composite Video Source Device
• Connect an S-Video Source Device
Requirements
For the latest requirements, please visit www.startech.com/VID2VGATV3.
• Composite Video or S-Video Source Device x 1
• Composite Video or S-Video Cable x 1
• VGA Video Display Device x 1
• VGA Cable x 1
• USB Power Source x 1
Installation and Operation
1. Ensure all of your Devices are powered off.
2. Determine if you are using a Composite or S-Video Source Device. Toggle the
Video Input Selection Switch to match your Source Device video signal.
3. Connect a Composite Video Cable to the Composite Video Input Port.
Or
Connect an S-Video Cable to the S-Video Input Port.
4. Connect the other end of the Composite Video Cable to the Composite Video
Source Device.
Or
Connect the other end of the S-Video Cable to the S-Video Source Device.
5. Connect a VGA Cable to the VGA Output Port on the Video Converter.
6. Connect the other end of the VGA Cable to the VGA Video Source Device.
7. Connect the USB-A to USB Mini Cable to an available USB Power Source and to
the Power Port.
8. Select the output resolution by pressing the Resolution Selection Button until the
desired resolution is met. Each time you press the Resolution Selection Button the
new resolution settings will appear on the On Screen Display (OSD) in the upper
right-hand corner of the screen.
Quick-Start Guide
Manual Revision: June 19, 2019 3:38 PM
