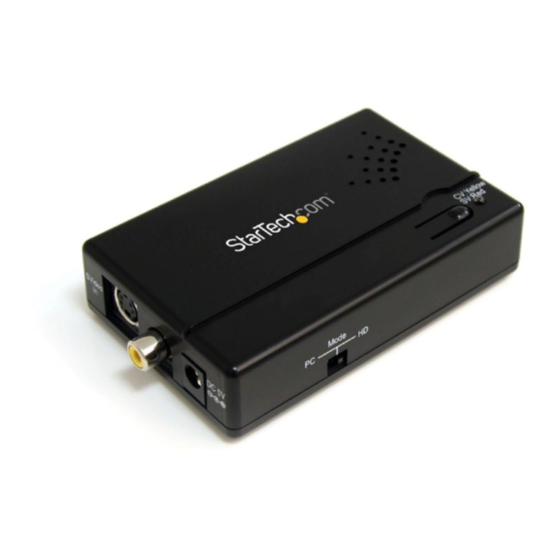

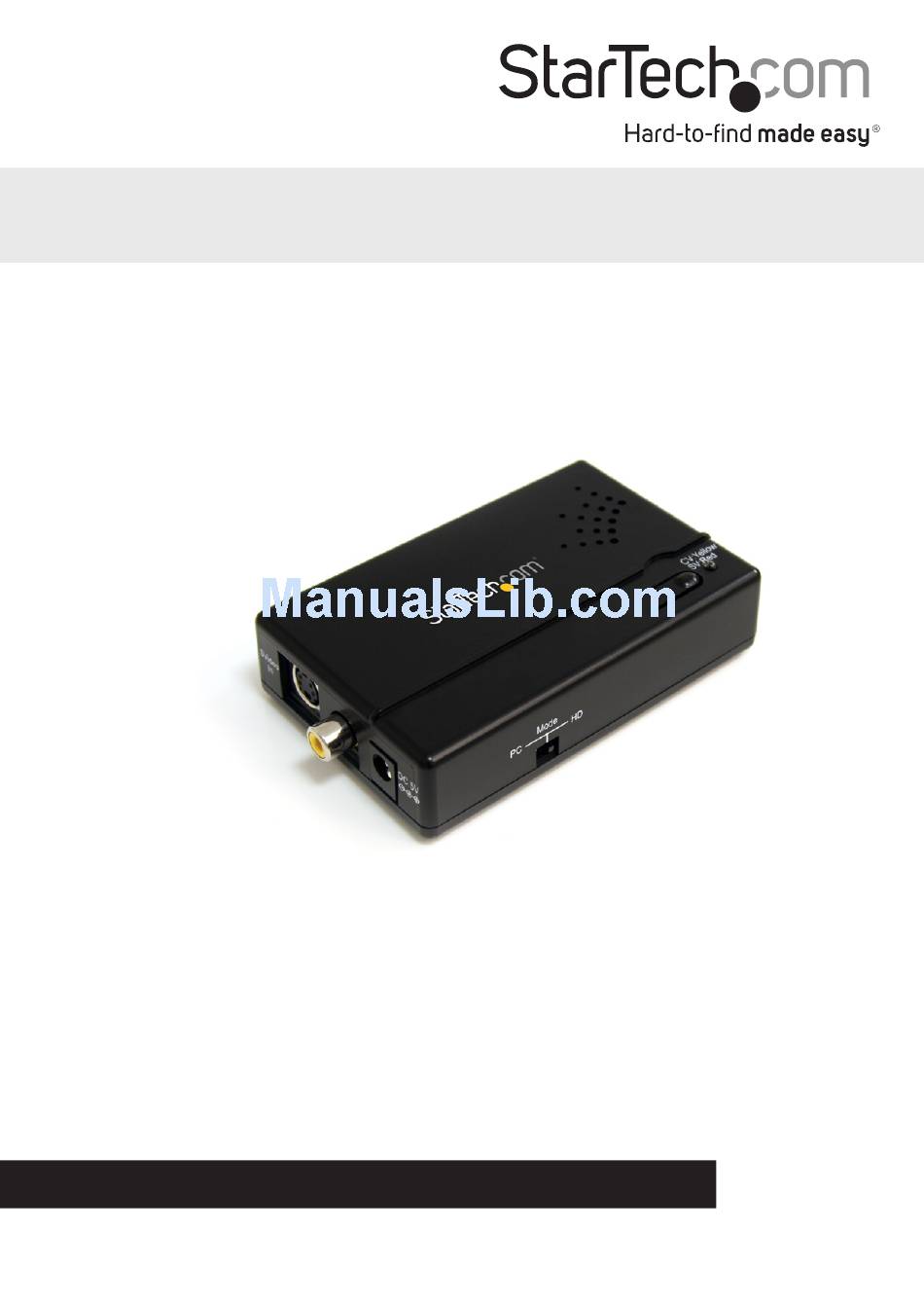

Composite/S-Video to VGA Video Converter
VID2VGATV2
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 05/12/2011
Advertisement
Table of Contents
Related Manuals for StarTech.com VID2VGATV2
Summary of Contents for StarTech.com VID2VGATV2
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 05/12/2011...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby... -
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ..............................2 Side View ..............................3 Installation ....................4 Hardware Installation ..........................4 Driver Installation ............................4 How to Use ....................5 On Screen Display ............................. 5 Specifications ..................6 Technical Support ..................7 Warranty Information ................7... -
Page 4: Introduction
Introduction The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter with Scaler provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output for use with computer monitors, projectors or HDTV sets. Equipped with an On Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Side View
Side View Instruction Manual... -
Page 7: Installation
Installation Hardware Installation 1. Make sure all devices and components are powered off. 2. Connect the video source to the input side of the video converter using either an S-Video or composite RCA cable (both sold separately). 3. Plug the power adapter into the video converter. The Input indicator LED will light up steady. -
Page 8: How To Use
How to Use On Screen Display The video converter has a built in on screen display (OSD) that will show the current input and output signal properties on the connected display. If outputting a component video signal (HD mode), the option to enable or disable 50Hz to 60Hz scan rate conversion is available. -
Page 9: Specifications
Specifications Composite Video Signal (Input) S-Video VGA (RGBHV) Video Signal (Output) YPbPr component 1 x RCA Composite female 1 x S-Video 4-pin female Connectors 1 x DE-15 VGA female 1 x DC Power LEDs 1 x Input Selection Supported Video Systems NTSC, PAL PC: XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200) @ 60 Hz... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 11 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
