StarTech.com VID2HDCON2 Quick Start Manual

Composite and S-Video to HDMI Video Converter

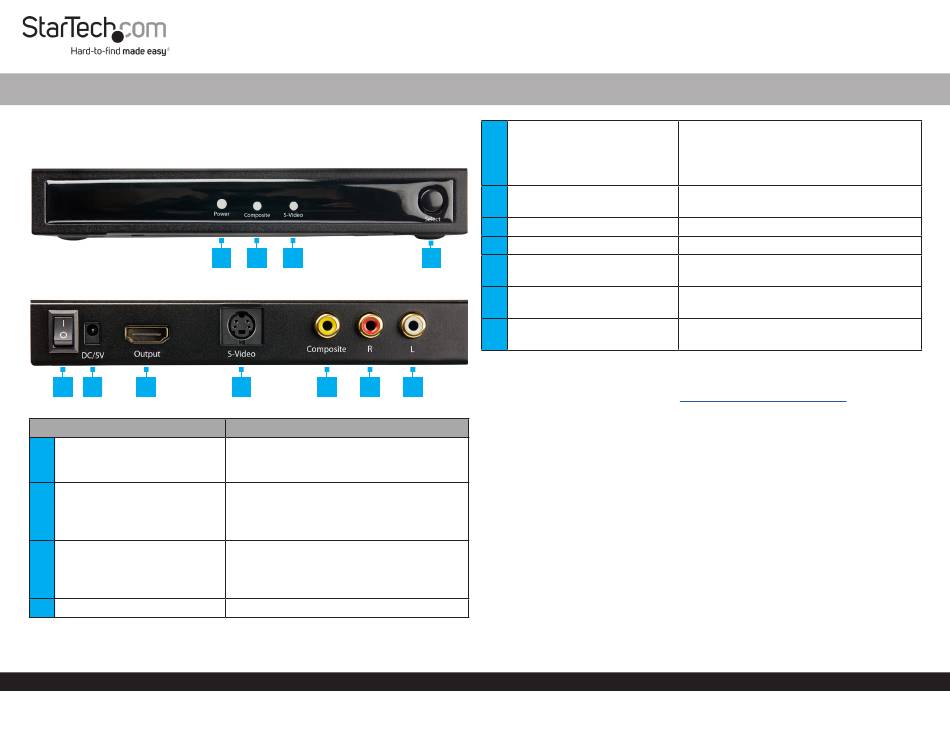

Product Diagrams (VID2HDCON2)

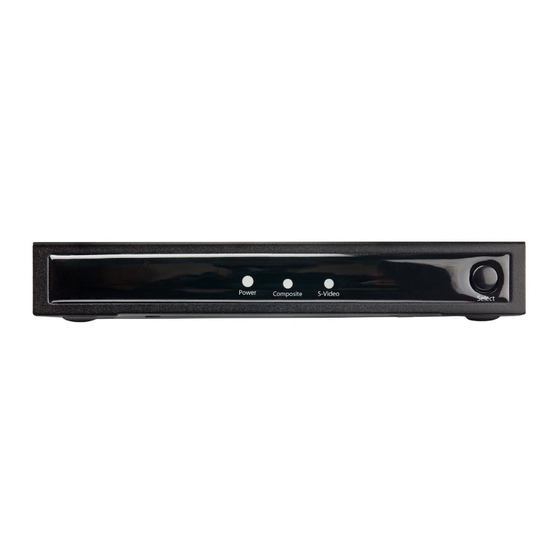

Front View
Rear View
5 6 7
Component
1
Power LED Indicator
2 Composite Video LED Indicator
3 S-Video LED Indicator
4
Video Input Selection Button
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1 2 3
8 9 10
Function
• Solid Red: The Universal Power Adapter is
connected and the On/Off Switch is in the
On position
• Solid Red: The Universal Power Adapter is
connected, the On/Off Switch is in the On
position, and the Composite Video Input
Port is selected
• Solid Red: The Universal Power Adapter
is connected, the On/Off Switch is in the
On position, and the S-Video Input Port is
selected
• Select the Source Device Video Signal
5
On/Off Switch
6 DC/5V Power Input Port
7 HDMI Output Port
8 S-Video Input Port
4
9 Composite Video Input Port
10 Right RCA Audio Input Port
11
Left RCA Audio Input Port
Requirements
11
For the latest requirements, please visit www.startech.com/VID2HDCON2.
• Composite Video or S-Video Source Device x 1
• Composite Video or S-Video Cable x 1
• Audio Source x 1
• RCA Audio Cable x 1
• HDMI Display Device x 1
• HDMI Cable x 1
• Power Source x 1
Installation and Operation
1. Ensure all of the Devices are powered Off.
2. Connect a Composite Video Cable to the Composite Video Input Port on the
Video Converter and to a Composite Video Source Device.
Or
Connect an S-Video Cable to the S-Video Input Port on the Video Converter and
to an S-Video Source Device.
Quick-Start Guide
• The "O" icon indicates the Off position
• The "I" icon indicates the On position
• Toggle the On/Off Switch to power the
Video Converter On or Off
• Connect a Power Source using the
Universal Power Adapter
• Connect an HDMI Display Device
• Connect an S-Video Source Device
• Connect a Composite Video Source
Device
• Connect an Audio Source to the Right
Audio Channel
• Connect an Audio Source to the Left
Audio Channel
Manual Revision: June 26, 2019 2:26 PM
