Composite/S-Video to HDMI Video Converter
with Audio
VID2HDCON
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 07/28/2011
*actual product may vary from photos
Advertisement
Table of Contents
Related Manuals for StarTech.com STCVID2HDCON
Summary of Contents for StarTech.com STCVID2HDCON
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 07/28/2011...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..................... 1 Packaging Contents ..........................1 System Requirements........................1 Front View .............................2 Rear View ...............................2 Side View ...............................3 Installation ....................4 Hardware Installation ........................4 Driver Installation ..........................4 Specifications ................... 6 Technical Support ................... 7 Warranty Information ................7 Instruction Manual... -
Page 4: Introduction

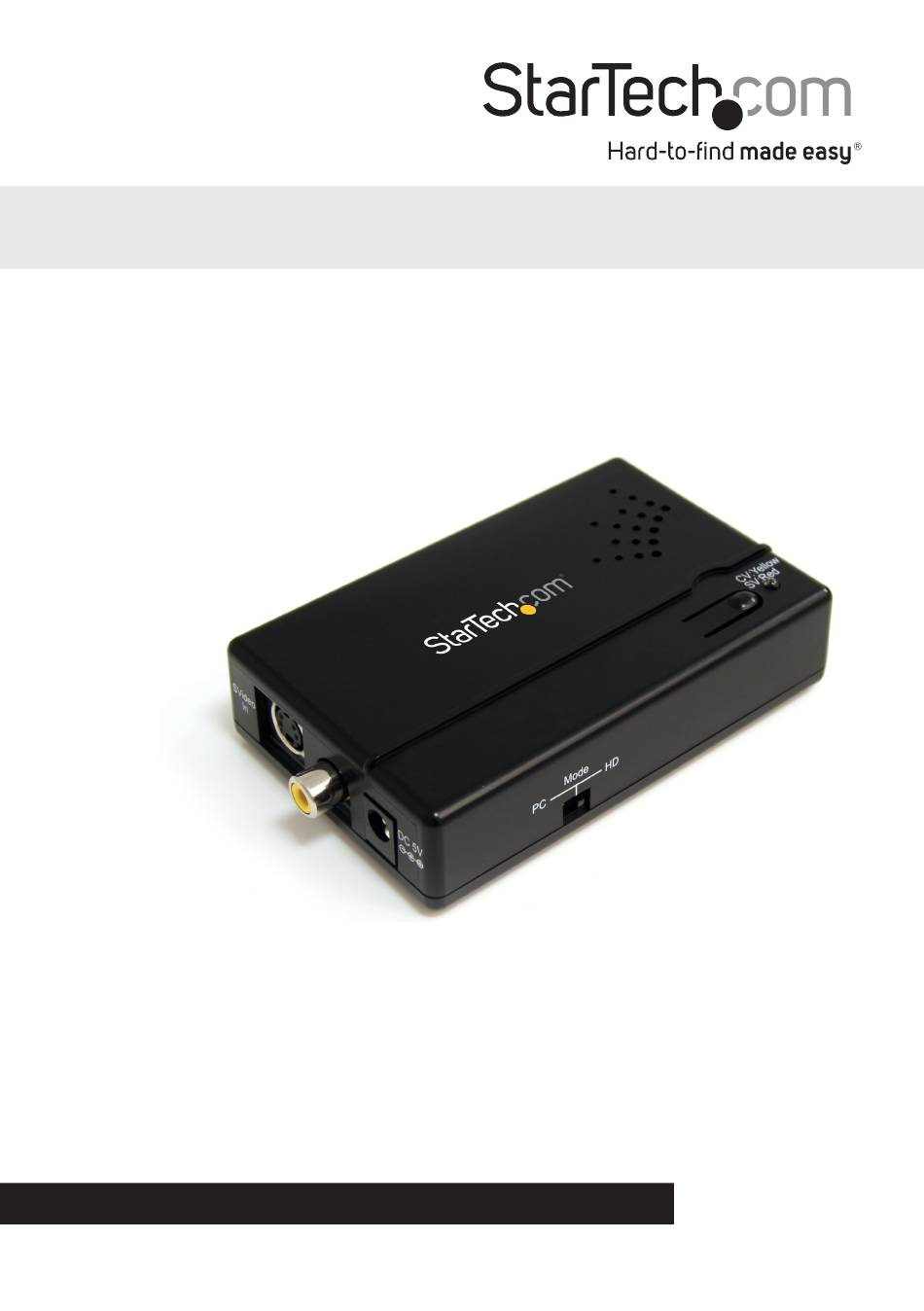

Introduction The VID2HDCON Composite and S-Video to HDMI® Video Converter with Audio lets you connect an S-Video or Composite device with supporting 3.5mm audio to your HDMI monitor or television. Equipped with convenient selector switches for configuration, the S-Video/ composite converter is able to function in both NTSC and PAL systems, and offers support for output resolutions up to 1600x1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Side View
Side View Instruction Manual... -
Page 7: Installation
Installation Hardware Installation Make sure all devices and components are powered off. Connect the video source to the input side of the video converter using either an S-Video or composite RCA cable (both sold separately). For audio, connect a 3.5mm Audio mini-jack cable into the “Audio In” connector on the converter. -
Page 8: Specifications
Specifications Composite Video Signal (Input) S-Video Video Signal (Output) HDMI 1 x RCA Composite female 1 x S-Video 4-pin female Connectors 1 x HDMI type A female 1 x DC Power LEDs 1 x Input Selection Supported Video Systems NTSC, PAL PC: XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200) @ 60 Hz Supported Video Output... -
Page 9: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 10 Hard-to-find made easy. At StarTech.com, that isn’t a slogan. It’s a promise. StarTech.com is your one-stop source for every connectivity part you need. From the latest technology to legacy products — and all the parts that bridge the old and new — we can help you find the parts that connect your solutions.
