Summary of Contents for StarTech.com VGA2DVII

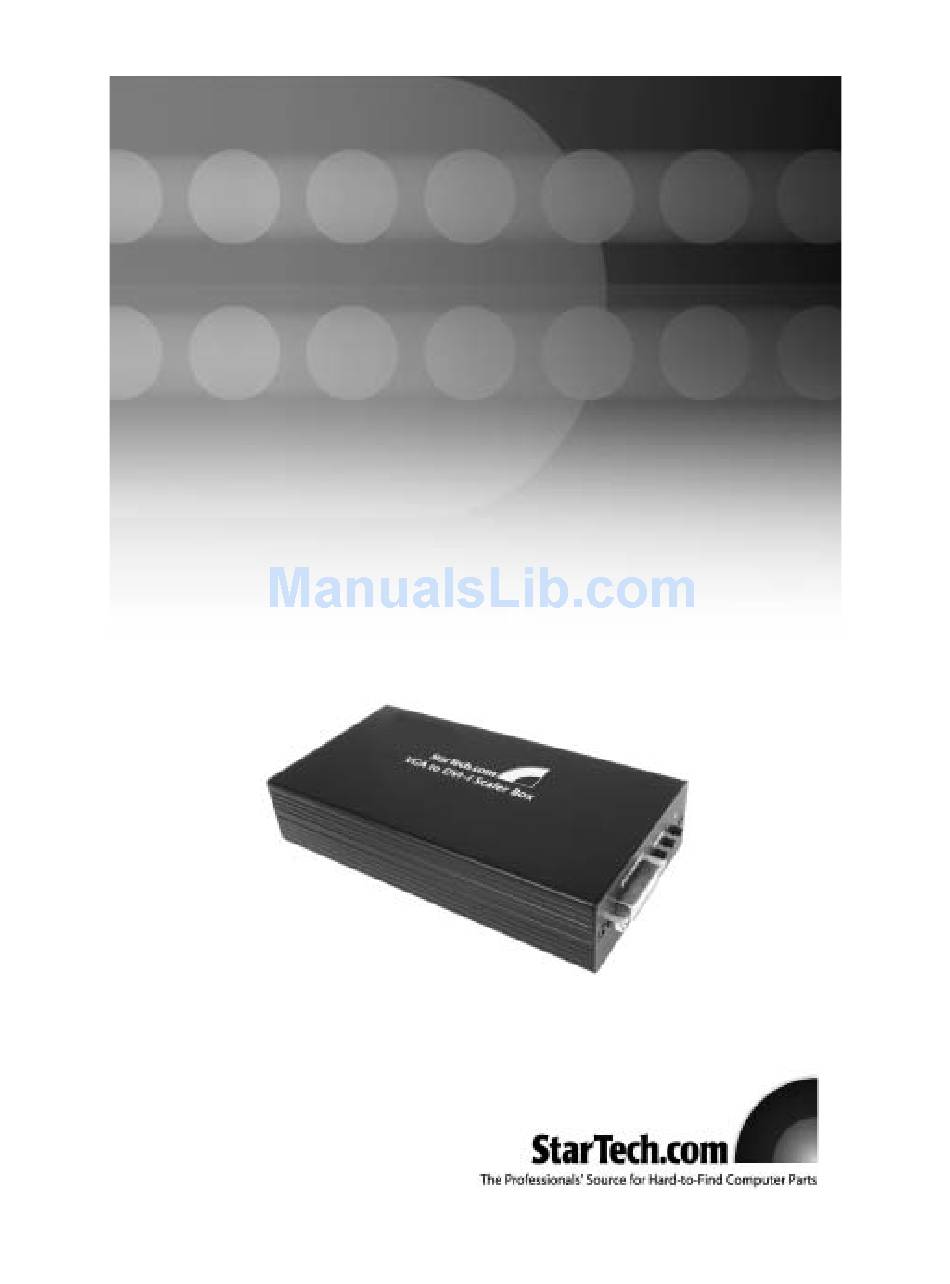

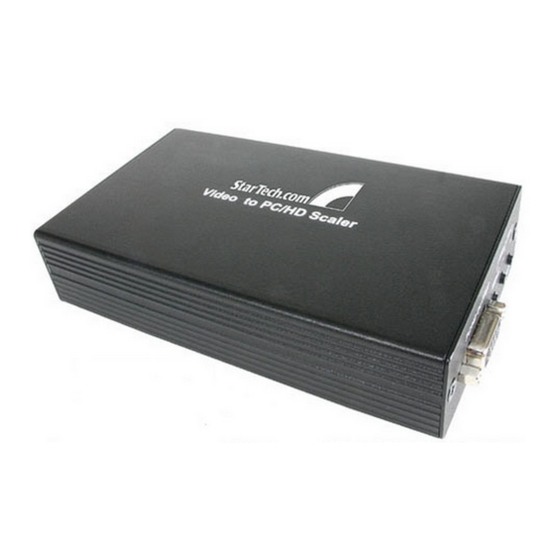

- Page 1 Video Converter & Scaler VGA or Composite Video to DVI-I Output Converter and Scaler VGA2DVII Instruction Manual Actual product may vary from photo...
-
Page 2: Fcc Compliance Statement
StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. -
Page 3: Table Of Contents
Supported Resolutions ......... . .5 Accessory Products from StarTech.com ......6 Technical Support . -
Page 4: Introduction
StarTech.com for the best possible performance. If you are using cables other than those supplied in the video converter package, use the minimum amount of cable possible to complete the connections. -
Page 5: Connecting Devices To The Video Scaler
Instruction Manual Connecting Devices to the Video Converter Rear Panel Front Panel WARNING: The default output signal from the video converter is 1024 x 768 (XGA) at 60 Hz. Not all HDTV devices have the capability to display this resolution, so it is advisable to consult the documentation for your display product before attempting installation. - Page 6 Instruction Manual of the display you are using, you can reset the video converter to the default setting by using the following button combination on the front panel: Press + and - at the same time to force the unit to XGA, 60 Hz. 1.
-
Page 7: Troubleshooting
Instruction Manual Bright(ness) Color Green Blue Reset H V Adjust (Adjusts the position of the image on the display) H Pos(ition) V Pos(ition) OSD Adjust (Adjusts the position of the OSD menu on the display) H Pos(ition) V Pos(ition) Auto Adjust (Resets to factory default settings when selected) System Information (Displays the current settings of the video scaler) INPUT [Resolution-Refresh Rate (Hz.)] OUTPUT [Resolution-Refresh Rate (Hz.)]... -
Page 8: Specifications
Instruction Manual Specifications Input Format RGBHV, YPbPr, YCbCr Input Signal Levels RGBHV @ 0.7V p-p, 75 ohm. H&V sync @ 3-5V p-p, TTL Y @ 1V p-p, 75 ohm. Pb,Cb,Pr,Cr @ 0.7V p-p, 75 ohm Output Format RGBHV, YPbPr Output Signal Levels RGB @ 0.7V p-p, 75 ohm. -
Page 9: Accessory Products From Startech.com
Instruction Manual Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. 10 ft DVI-I Dual Link Digital/Analog Extension Cable M-F... -
Page 10: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 11 About StarTech.com StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”. Since 1985, we have been providing IT professionals with the quality products they need to complete their solutions. We offer an unmatched selection of computer parts, cables, server management solutions and A/V products and serve a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan.
