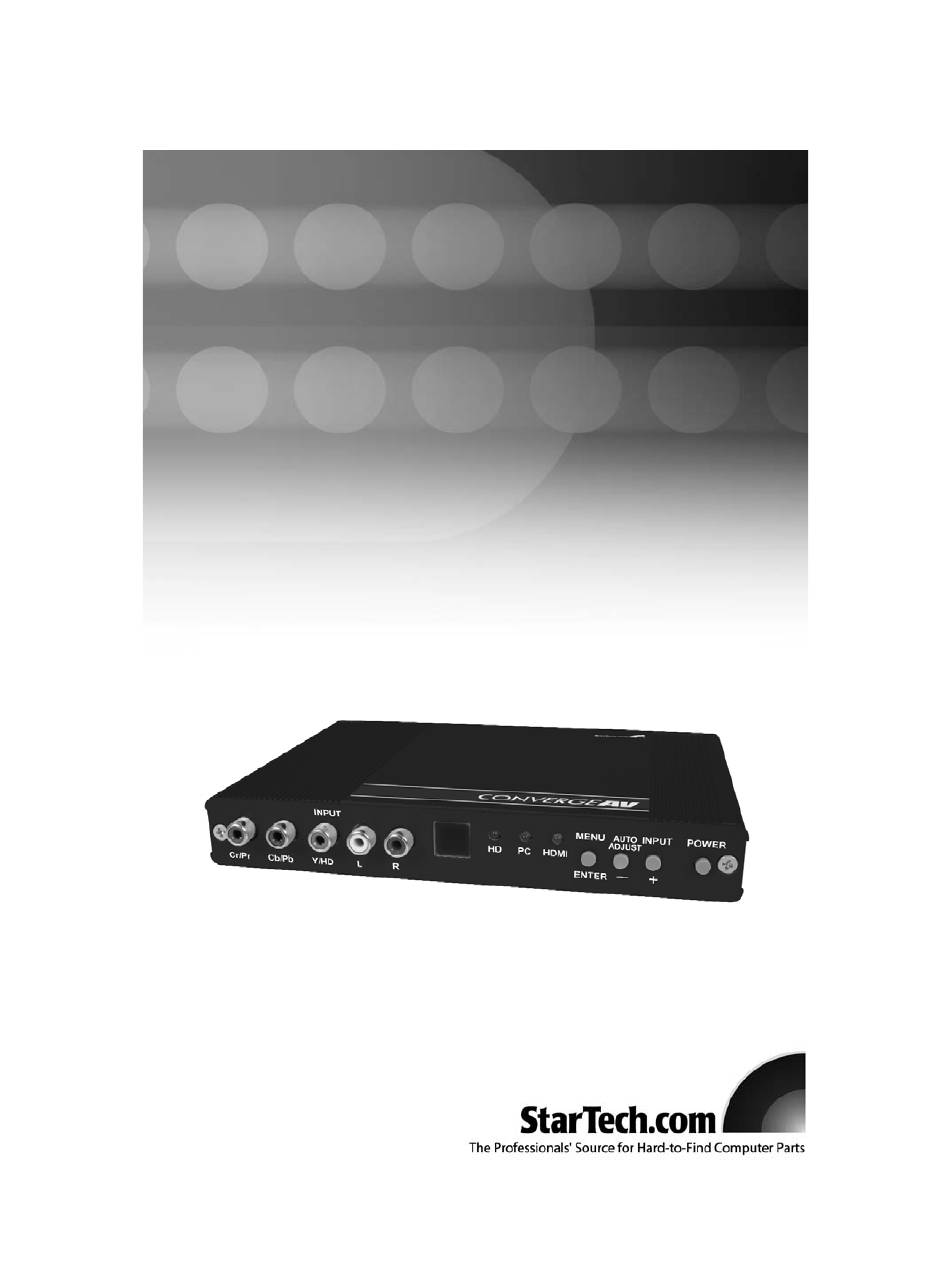

- Page 1 HDMI Converter/Scaler Component/VGA and Audio to HDMI Converter/Scaler VS310HD2HDMI Instruction Manual Actual product may vary from photo...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Instruction Manual T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s Introduction ........... . .1 Features . -
Page 4: Introduction
I I n n t t r r o o d d u u c c t t i i o o n n Thank for purchasing a StarTech.com VGA/Component to HDMI converter/scaler. This product will allow you to convert analog and digital video to DVI-D or HDMI, while scaling the image for optimized display. -
Page 5: Operation Controls And Functions
5. IR Sensor - Infrared remote control sensor 6. Audio L/R Input - Stereo audio input, associated with Component In 7. Component Input - Used to connect to Component Video sources. VS310HD2HDMI accepts both interlaced component input (480i, 576i) and deinterlaced progressive input (480p, 576p...1080p). -
Page 6: Remote Control And Functions
Instruction Manual Rear Panel 1. PC IN - Connects VS310HD2HDMI to the VGA output of your PC. Acceptable PC resolutions range from VGA - WUXGA 2. PC Audio IN - Stereo audio input from video source. Requires 3.5mm audio cable. -
Page 7: Installation - Input Connection
Instruction Manual 9. Up/Down/Left/Right - Press the up/down buttons to move the highlight bar to the desired parameter during OSD operation. exit from a sub-menu or main menu. Press the left/right buttons to increase/decrease the value of a selected parameter. 10. - Page 8 • When connecting to an HDMI source, use an HDMI cable to connect from the HDMI output of a set top box or DVD player, to the HDMI connector of VS310HD2HDMI • When connecting to a DVI source, use a DVI cable to connect from the DVI source...
-
Page 9: Installation - Output Connection
HDMI TV DVI TV VS310HD2HDMI can output a variety of PC, Standard definition and High definition resolutions in HDMI digital format. The HDMI output supports the following resolutions, all in RGB format: SD/HD: 480i, 480p, 576i, 576p, 720p @50/60Hz, 1080i @50/60Hz... -
Page 10: Osd Operation
Instruction Manual OSD Operation Main Menu Video (or PC) Color Info Video (or PC) Video (or PC) User H-Position Project Contrast Color Normal V-Position Input Brightness SVGA Output Warm Time out Output Cool SXGA Background Date Sharpness UXGA Exit Info Picture Mode WXGA Scale... - Page 11 It will not work for HDMI input. H & V position - To adjust for optimal positioning within the screen Output - VS310HD2HDMI can output a wide variety of PC and HD resolutions as follows: VGA (up to 100MH) DVI/HDMI(Up to 165MH)
-
Page 12: Specifications
Instruction Manual OSD Adjust - H-Position: Adjust the horizontal position of the OSD V-Position: Adjust the vertical position of the OSD Time out: Set a predetermined time to turn the OSD menu off, following inactivity Background: Select transparent or solid OSD background S S p p e e c c i i f f i i c c a a t t i i o o n n s s Power Adapter 5V DC 2.6Amp, Type M connector... -
Page 13: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect,... - Page 14 Visit www.startech.com for complete information about all our products and to access exclusive interactive tools such as the Parts Finder and the KVM Reference Guide. StarTech.com makes it easy to complete almost any IT solution. Find out for yourself why our products lead the industry in performance, support, and value.
