Chapter 2: Jumpers and Connectors

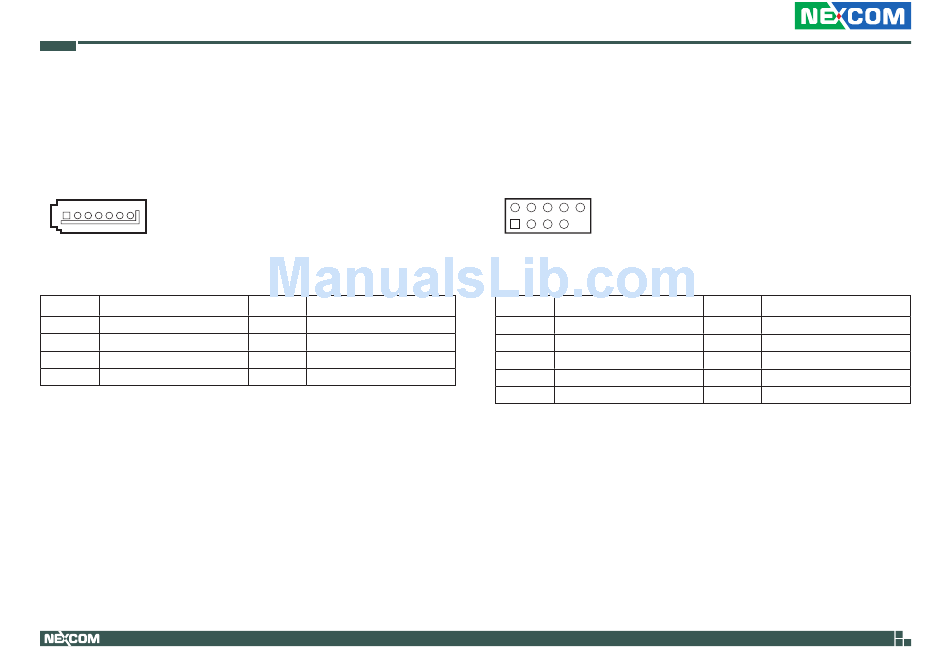

SATA Connector 2
Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA2
1
7
Pin
Definition
1
GND
3
RSATA_TXN2
5
RSATA_RXN2
7
GND
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
RSATA_TXP2
4
GND
6
RSATA_RXP2
USB Connector
Connector type: 2x5 10-pin header
Connector location: USB56
2
10
1
Pin
Definition
1
+5V_USB56
3
USB_CM_N5
5
USB_CM_P5
7
GND
16
Pin
Definition
2
+5V_USB56
4
USB_CM_N6
6
USB_CM_P6
8
GND
10
GND
NEX 614A User Manual
