Chapter 2: Jumpers and Connectors

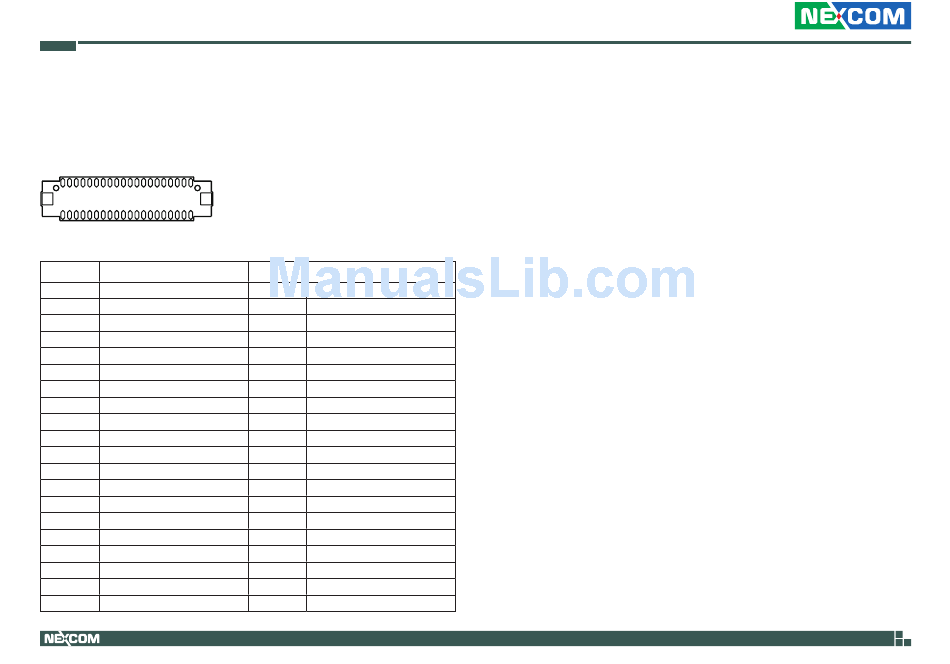

LVDS Connector

Connector type: 2x20 40-pin header
Connector location: JLVDS1
Pin Definition
1 VDD_LVDS
3 GND
5 VDD_LVDS
7 LVDS_A0-
9 LVDS_A0+
11 GND
13 LVDS_A1-
15 LVDS_A1+
17 GND
19 LVDS_A2-
21 LVDS_A2+
23 GND
25 LVDS_A_CLK-
27 LVDS_A_CLK+
29 GND
31 DDC_CLK
33 GND
35 LVDS_A3-
37 LVDS_A3+
39 NC
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VDD_LVDS
4 GND
6 VDD_LVDS
8 LVDS_B0-
10 LVDS_B0+
12 GND
14 LVDS_B1-
16 LVDS_B1+
18 GND
20 LVDS_B2-
22 LVDS_B2+
24 GND
26 LVDS_B_CLK-
28 LVDS_B_CLK+
30 GND
32 DDC_DATA
34 GND
36 LVDS_B3-
38 LVDS_B3+
40 NC
