Chapter 2 : Jumpers and Connectors

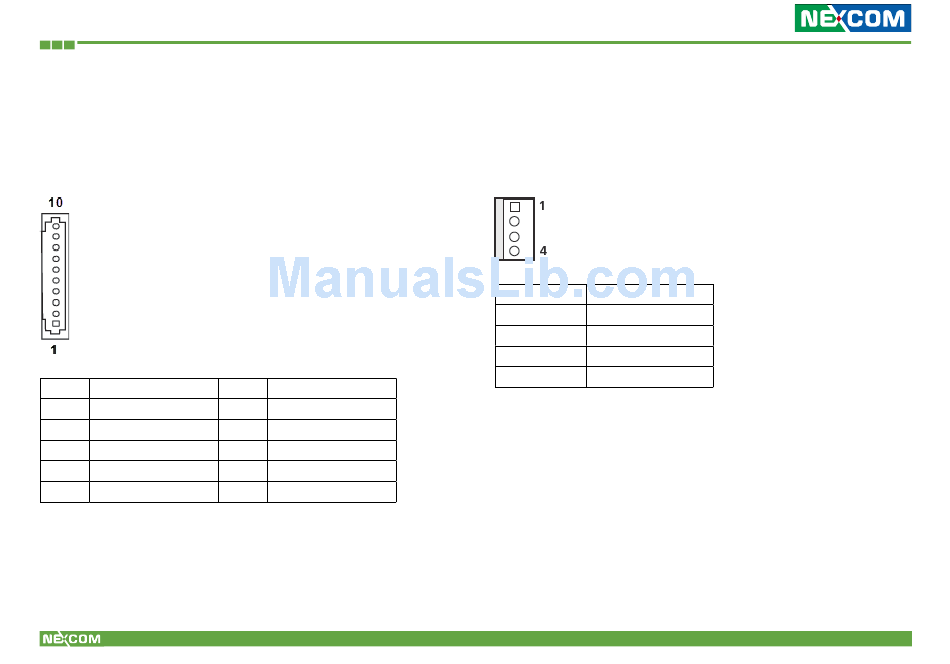

COM4 Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J1
Pin Definition
1 SP4_DCD
3 SP4_TXD
5 GND
7 SP4_RTS
9 SP4_RI
Copyright © 2012 NEXCOM International Co., Ltd. All rights reserved
Pin Definition
2 SP4_RXD
4 SP4_DTR
6 SP4_DSR
8 SP4_CTS
10 GND

SATA Power Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: CN1
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
