Chapter 3: BIOS Setup

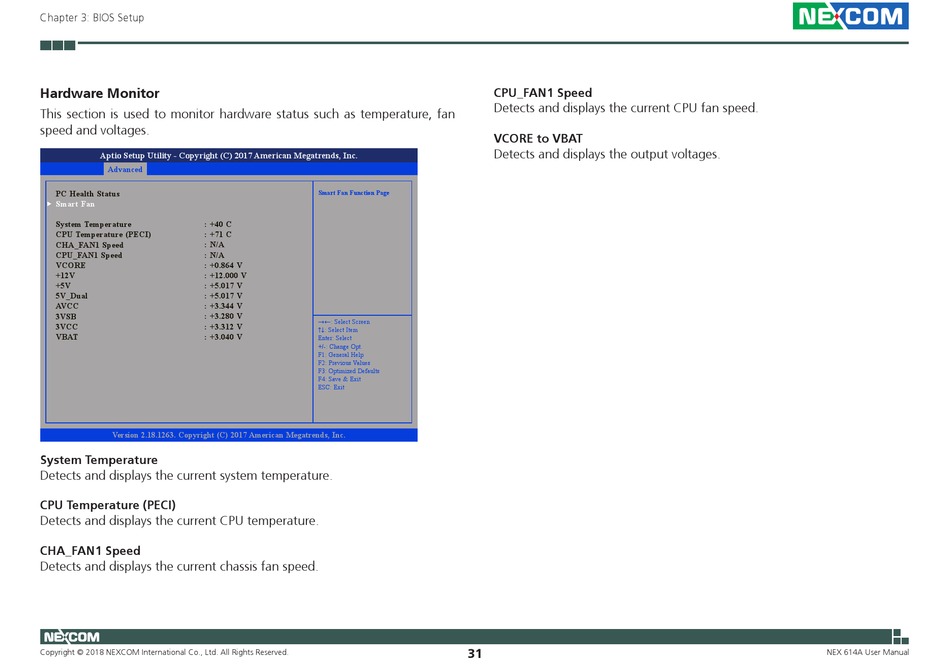

Hardware Monitor

This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Aptio Setup Utility - Copyright (C) 2017 American Megatrends, Inc.
Advanced
PC Health Status
Smart Fan

System Temperature : +40 C
CPU Temperature (PECI) : +71 C
CHA_FAN1 Speed : N/A
CPU_FAN1 Speed : N/A
VCORE : +0.864 V
+12V : +12.000 V
+5V : +5.017 V
5V_Dual : +5.017 V
AVCC : +3.344 V
3VSB : +3.280 V
3VCC : +3.312 V
VBAT : +3.040 V
Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc.
System Temperature
Detects and displays the current system temperature.
CPU Temperature (PECI)
Detects and displays the current CPU temperature.
CHA_FAN1 Speed
Detects and displays the current chassis fan speed.
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
CPU_FAN1 Speed
Detects and displays the current CPU fan speed.
VCORE to VBAT
Detects and displays the output voltages.
Smart Fan Function Page
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
