Chapter 2: Jumpers and Connectors

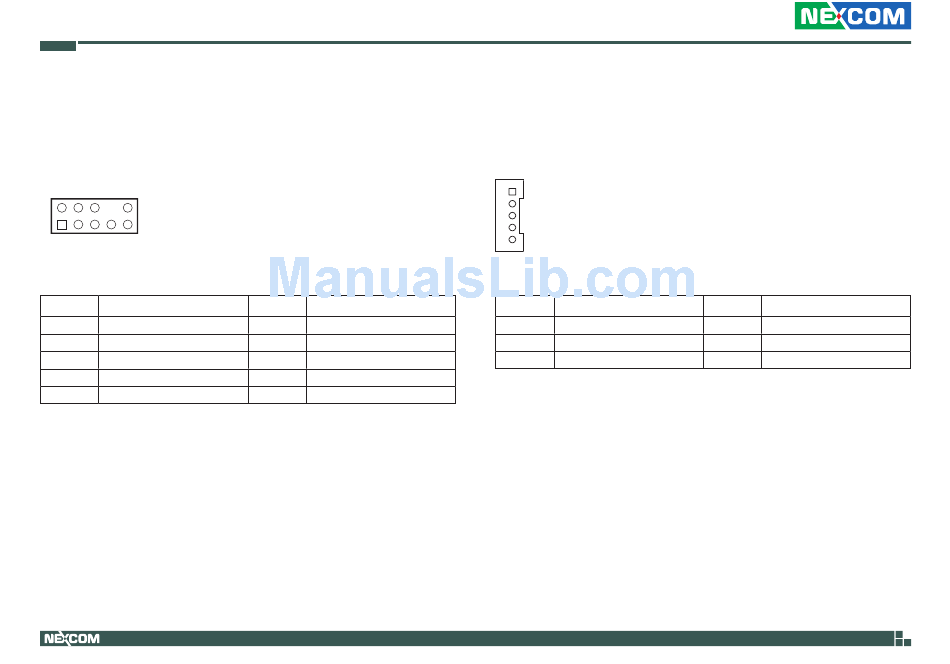

Front Panel Audio Connector

Connector type: 2x5 10-pin header
Connector location: FP_AUDIO1
2
10
1 9
Pin Definition
1 MIC2L
3 MIC2R
5 LINE2R
7 SENSEB
9 LINE2L
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 +3.3
6 MIC2-JD
8 NC
10 LINE2-JD

LVDS Backlight Connector

Connector type: 1x5 5-pin header
Connector location: JBKL1
1
5
Pin Definition
1 +12V_BL
3 BL_EN
5 +5V_BL
18
Pin Definition
2 GND
4 BRIGHT1
