Chapter 2: Jumpers and Connectors

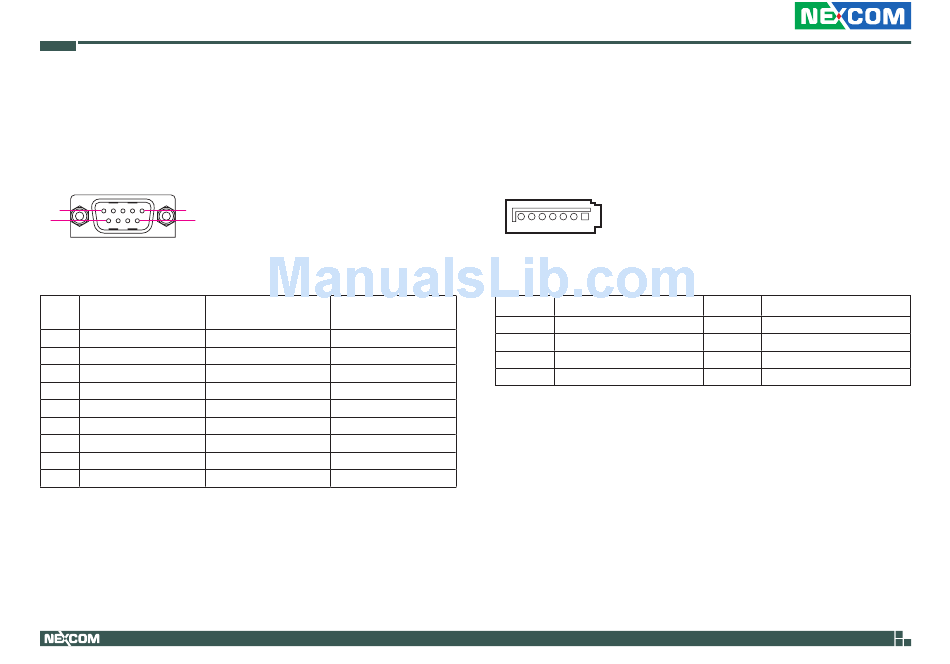

Serial Port (COM1)

Connector type: DB-9 port, 9-pin D-Sub
Connector location: COM1
1 5
6 9
Pin RS232
1 COM1_DCD#
2 COM1_RXD
3 COM1_TXD
4 COM1_DTR#
5 GND
6 COM1_DSR#
7 COM1_RTS#
8 COM1_CTS#
9 COM1_RI#
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
RS485/422 RS485
Full Duplex Half Duplex
TX- Data-
TX+ Data+
RX+
RX-
GND GND

SATA Connector 1

Connector type: Standard Serial ATA 7P (1.27mm, SATA-M-180)
Connector location: SATA1
7 1
Pin Definition
1 GND
3 RSATA_TXN1
5 RSATA_RXN1
7 GND
15
Pin Definition
2 RSATA_TXP1
4 GND
6 RSATA_RXP1
