Chapter 2: Jumpers and Connectors

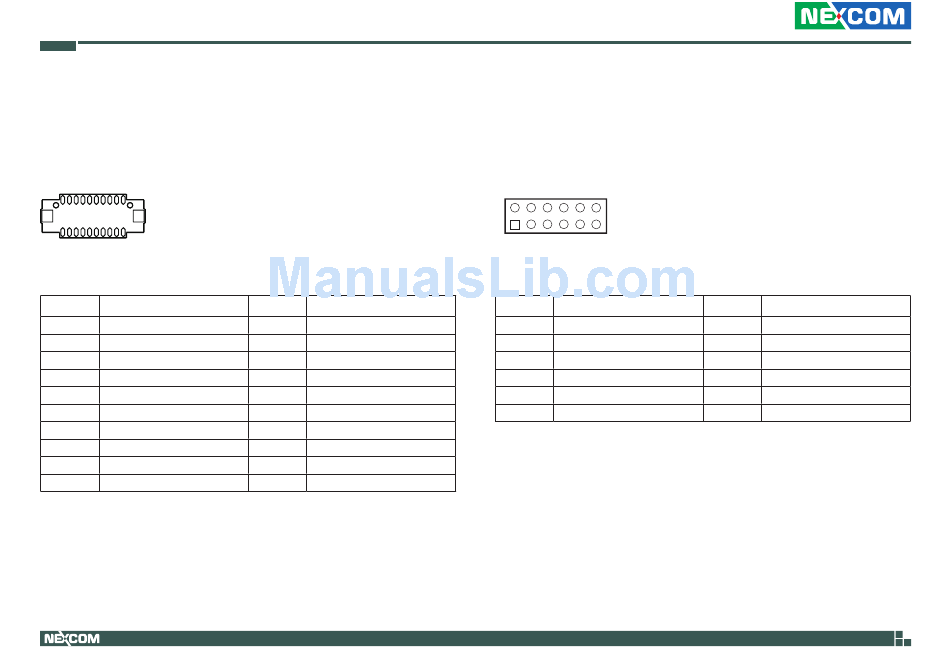

eDP Connector (Optional)

Connector type: 2x10 20-pin header
Connector location: EDP1
Pin Definition
1 GND
3 eDP_A0-
5 eDP_A0+
7 GND
9 eDP_B0-
11 eDP_B0+
13 GND
15 eDP_C0-
17 eDP_C0+
19 VDD_LVDS
Copyright © 2018 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 GND
4 eDP_D0-
6 eDP_D0+
8 NC
10 GND
12 AUX-
14 AUX+
16 eDP_HPD
18 GND
20 VDD_LVDS

8-bit GPIO Header

Connector type: 2x5 10-pin header
Connector location: JDIO1
2 12
1 11
Pin Definition
1 SIO_GPIO0
3 SIO_GPIO1
5 SIO_GPIO2
7 SIO_GPIO3
9 SMB_CLK_RESUME
11 GND
17
Pin Definition
2 SIO_GPIO4
4 SIO_GPIO5
6 SIO_GPIO6
8 SIO_GPIO7
10 SMB_DATA_RESUME
12 +5Vsb
