PCIII ground wire
i625-411
www.powercommander.com
Unplug
1
Remove the seat.
2
Remove the fuel tank.
3

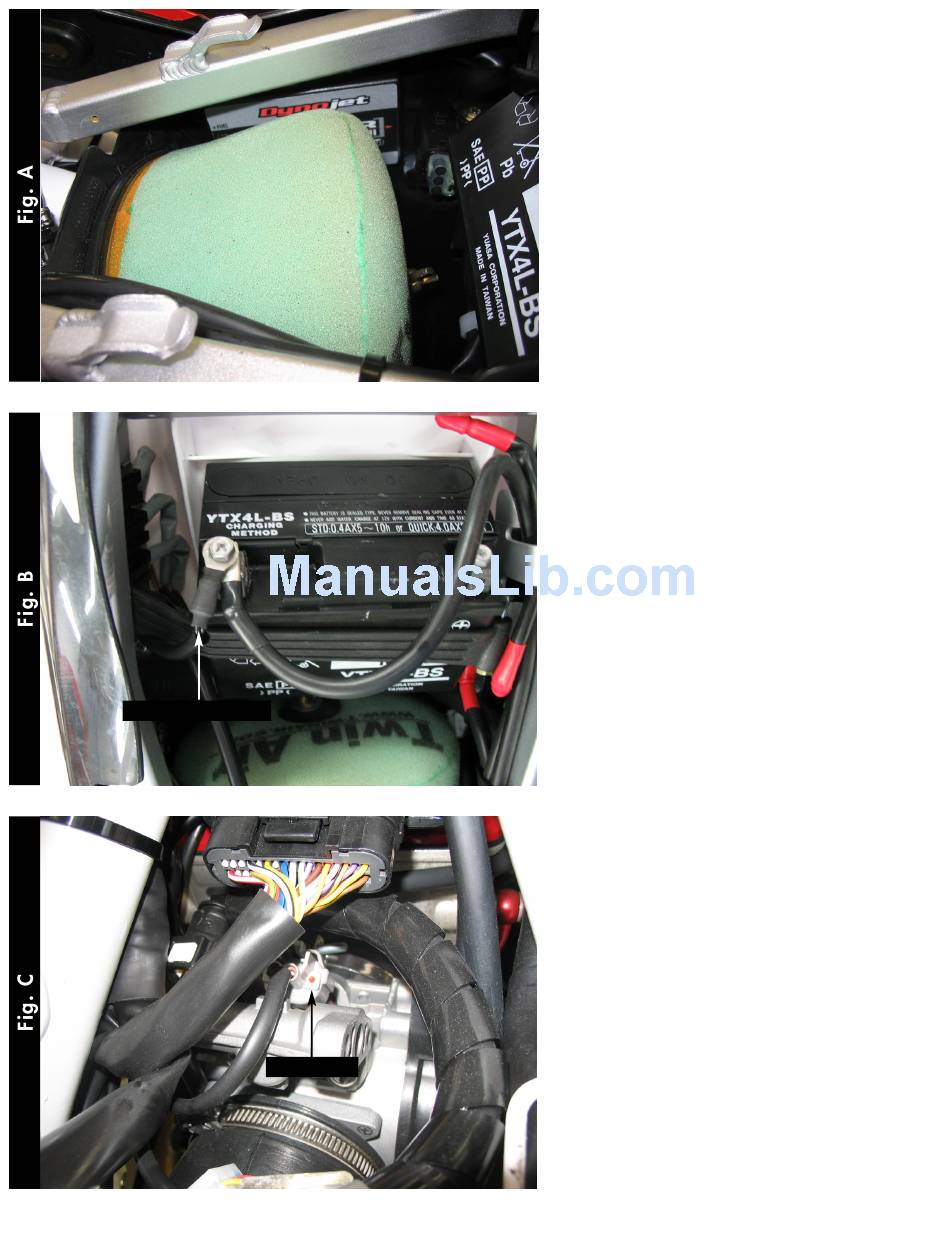

Using the supplied velcro attach the PCIII to
the inner side of the right hand side cover
(Fig. C).
Make sure to clean both surfaces with the
alcohol swab before attaching.
4
Attach the ground wire from the PCIII to the
negative side of the battery (Fig. B).
5
Route the PCIII harness towards the throttle
body going underneath the frame support.
6
Unplug the stock wiring harness from the
injector (Fig. C).
2008 Husqvarna TE250 - PCIII USB - 2
