ILD1700 Tool
3.4.4.3 Help (F1)
Opens this document.

4 Sensor Configuration

4.1 Configuration

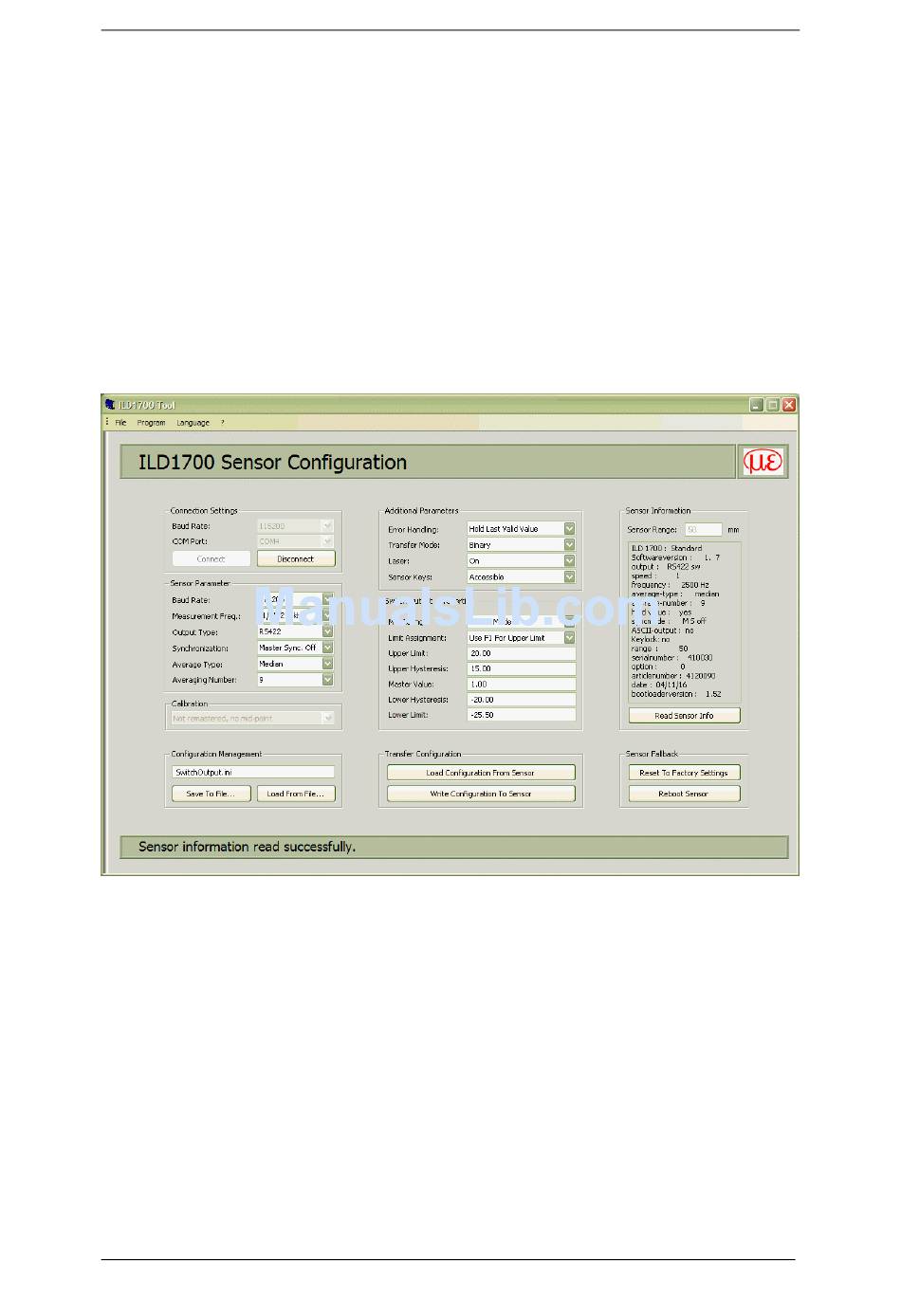

Shows the parameters that affect the sensor/controller (see Fig. 3 ILD1700
Sensor Configuration).
Fig. 3 ILD1700 Sensor Configuration

4.1.1 Connection Setting

The COM port the ILD1700 controller is connected to. Supported port
numbers are COM1 to COM16. The sensor uses a RS422 to USB interface that
is mapped to a COM port, which can be viewed in the device manager. For
the exact port number see the device called 'USB to Serial Port'. On a
German OS, that item is located in 'Anschlüsse (COM und LPT)'.
4.1.1.1 Baud Rate
The baud rate, which the controller is currently using to transfer parameters
and data.
