5 Data Acquisition Program

This program can be used to acquire, evaluate and store data from an
ILD1700 sensor.

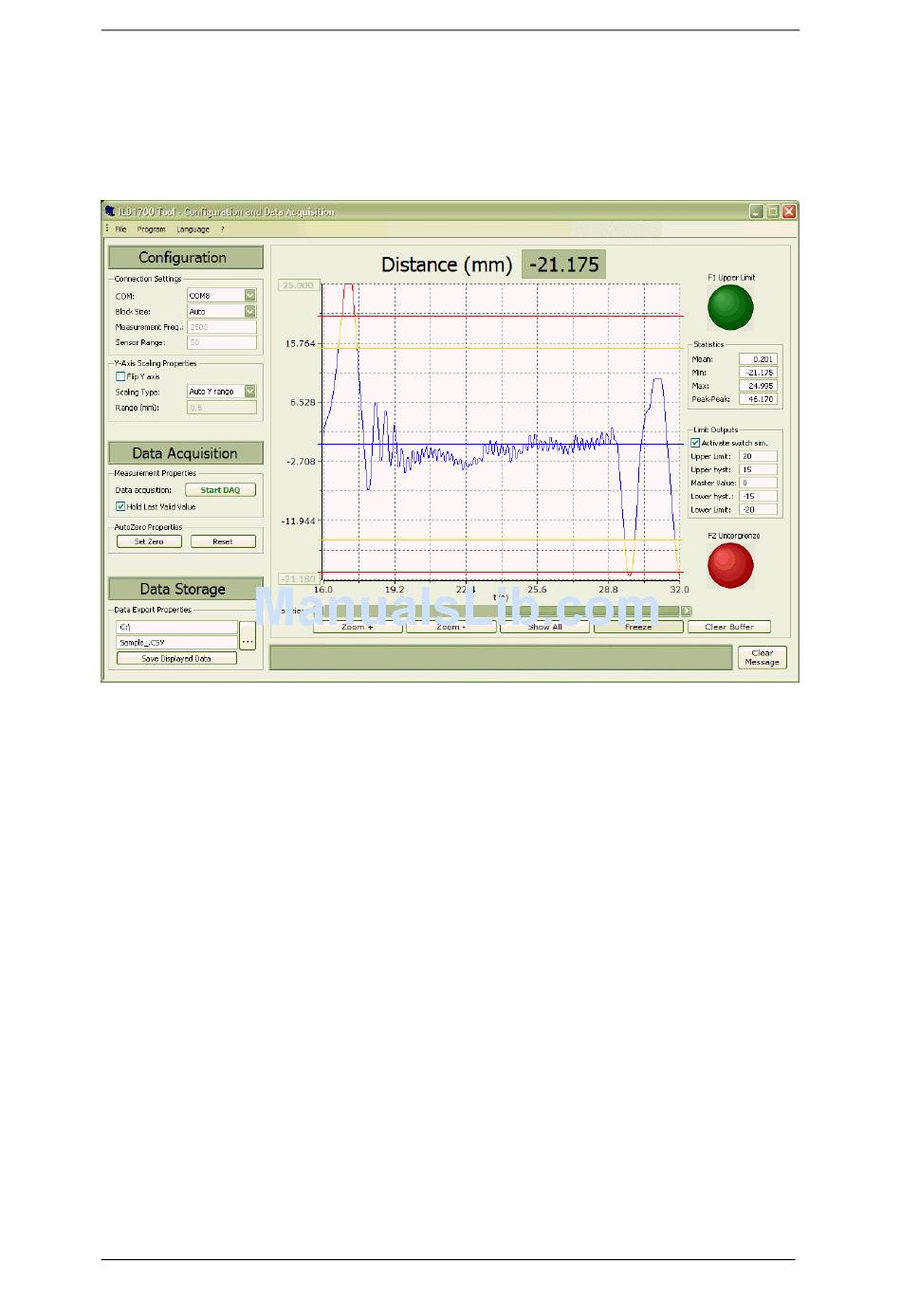

Fig. 4 Data Acquisition

5.1 Configuration

5.1.1 Connection Settings

This measurement program requires a COM port with settings: 115200, 8, n,
1.
5.1.1.1 COM
Number of the COM port the ILD1700 sensor is connected to (see 4.1.1).
5.1.1.2 Block size
Determines the number of values to read at once. A smaller block size
reduces the reaction time (here: display refresh) but increases the system
load. The number of updates per second = Sample_rate/Block_size. If the
display is delayed or measurement values get lost, a higher block size is
required.
5.1.1.3 Measurement Frequency
Displays the number of samples that are taken per second.
5.1.1.4 Sensor Range
Measurement range of the connected sensor.
