Inside of the Enforcer

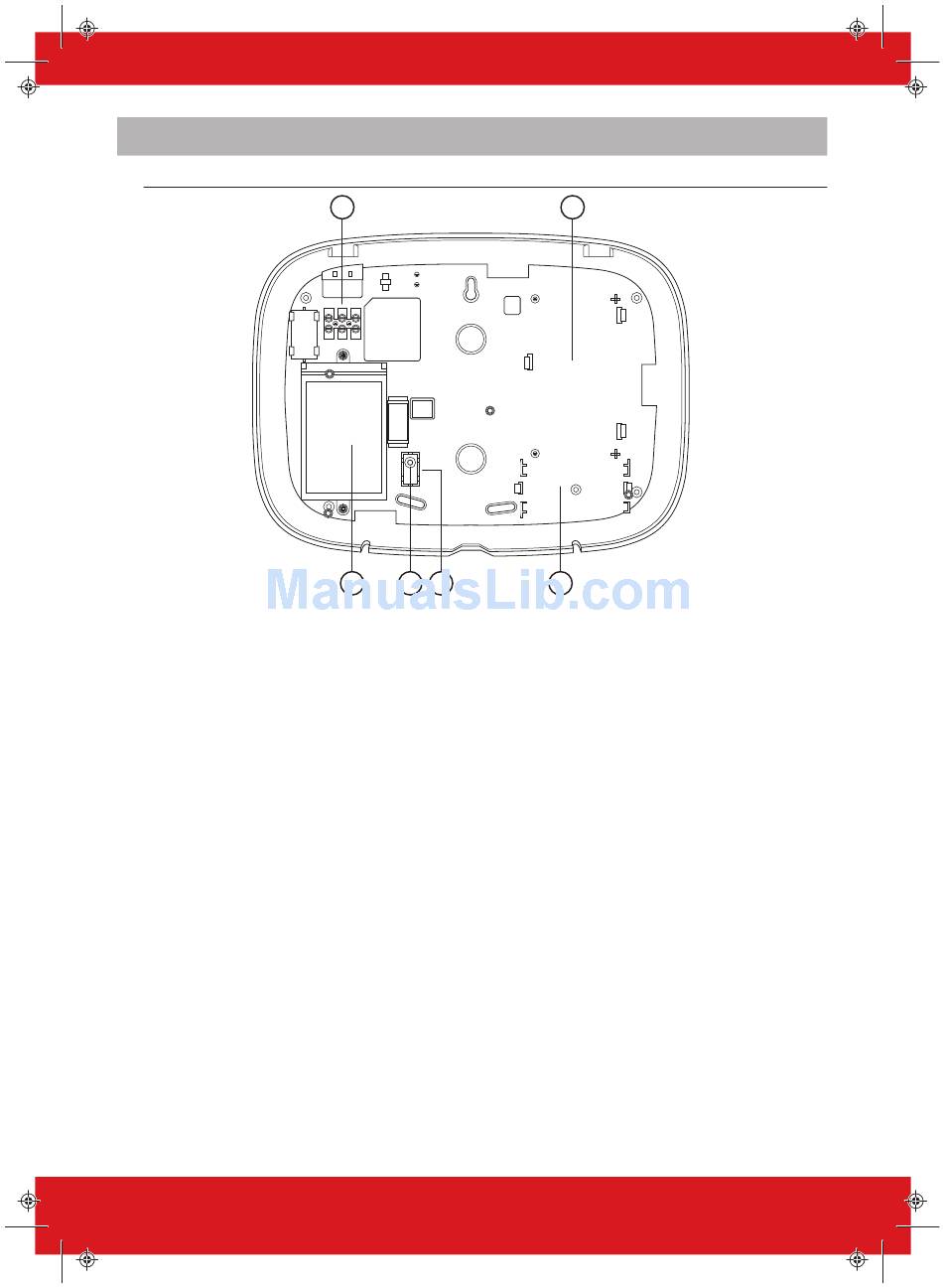

Figure 2: Backplate
1: Terminals for Earth and Mains Supply.
2: If a modem is required (DIGI-GPRS, DIGI-LAN, DIGI-1200/PSTN, DIGI-WIFI), then this space is
used to install them.
3: The transformer is situated in a housing, this shouldn't need to be removed.
4: The rear tamper adjustment screw is used if the tamper from the front of the Enforcer isn't sitting
flush to the back plate - this may happen if the Enforcer is installed on an uneven surface.
5: Plastic breakout. If rear tamper protection is required, screw the plastic breakout securely to the
wall.
6: If an I/O board is installed, then this space is used to install it.
Enforcer Installation Guide
1
3 4 5
102017854 - V01
2
6
13
