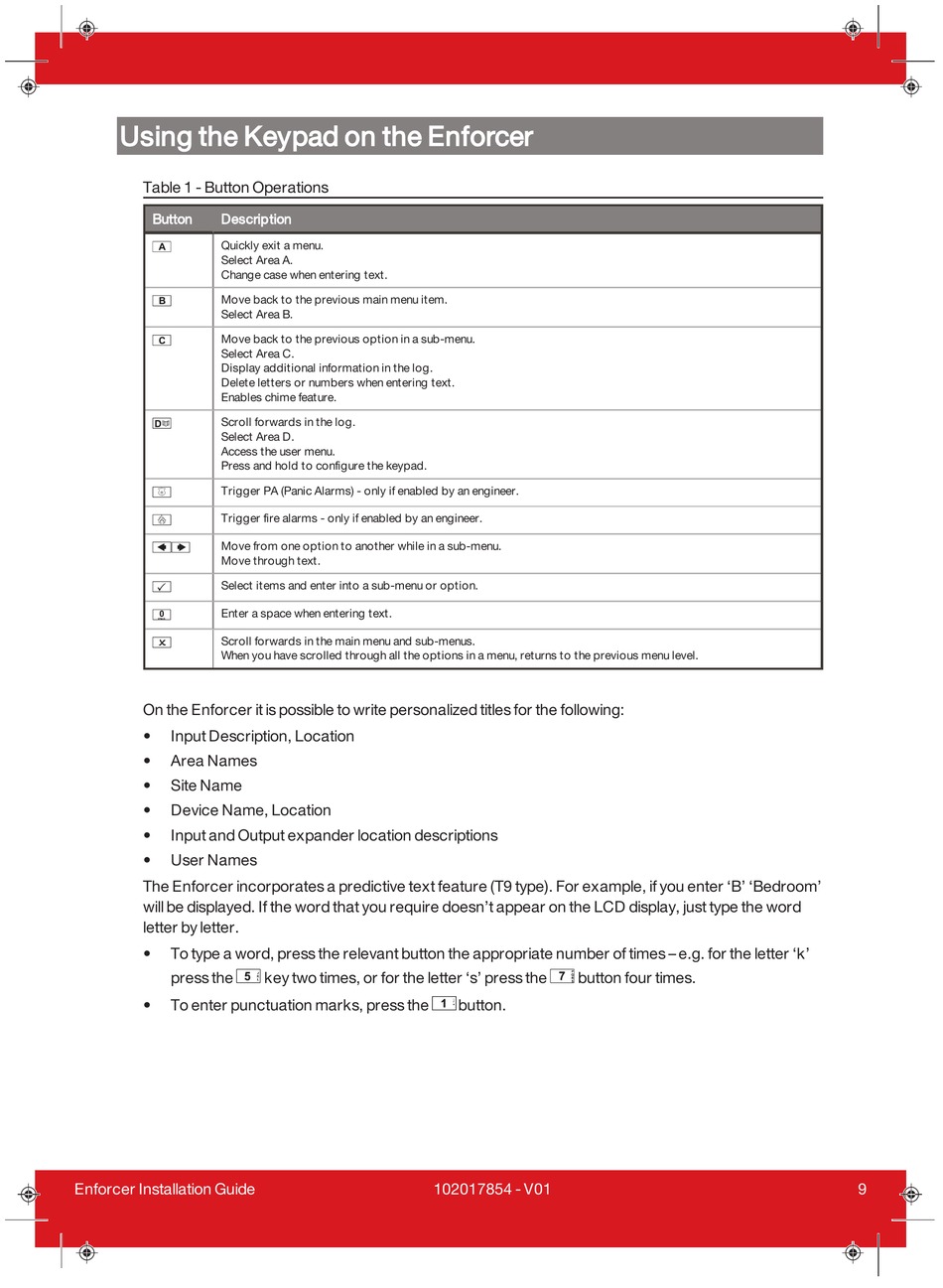

Using the Keypad on the Enforcer

Table 1 - Button Operations
Button Description
a
Quickly exit a menu.
Select Area A.
Change case when entering text.
b
Move back to the previous main menu item.
Select Area B.
c
Move back to the previous option in a sub-menu.
Select Area C.
Display additional information in the log.
Delete letters or numbers when entering text.
Enables chime feature.
d
Scroll forwards in the log.
Select Area D.
Access the user menu.
Press and hold to configure the keypad.
p
Trigger PA (Panic Alarms) - only if enabled by an engineer.
f
Trigger fire alarms - only if enabled by an engineer.
[]
Move from one option to another while in a sub-menu.
Move through text.
t
Select items and enter into a sub-menu or option.
0
Enter a space when entering text.
x
Scroll forwards in the main menu and sub-menus.
When you have scrolled through all the options in a menu, returns to the previous menu level.
On the Enforcer it is possible to write personalized titles for the following:
• Input Description, Location
• Area Names
• Site Name
• Device Name, Location
• Input and Output expander location descriptions
• User Names
The Enforcer incorporates a predictive text feature (T9 type). For example, if you enter 'B' 'Bedroom'
will be displayed. If the word that you require doesn't appear on the LCD display, just type the word
letter by letter.
• To type a word, press the relevant button the appropriate number of times – e.g. for the letter 'k'
press the 5 key two times, or for the letter 's' press the 7 button four times.
To enter punctuation marks, press the 1 button.
•
