Wiring Wired Inputs

Enforcer

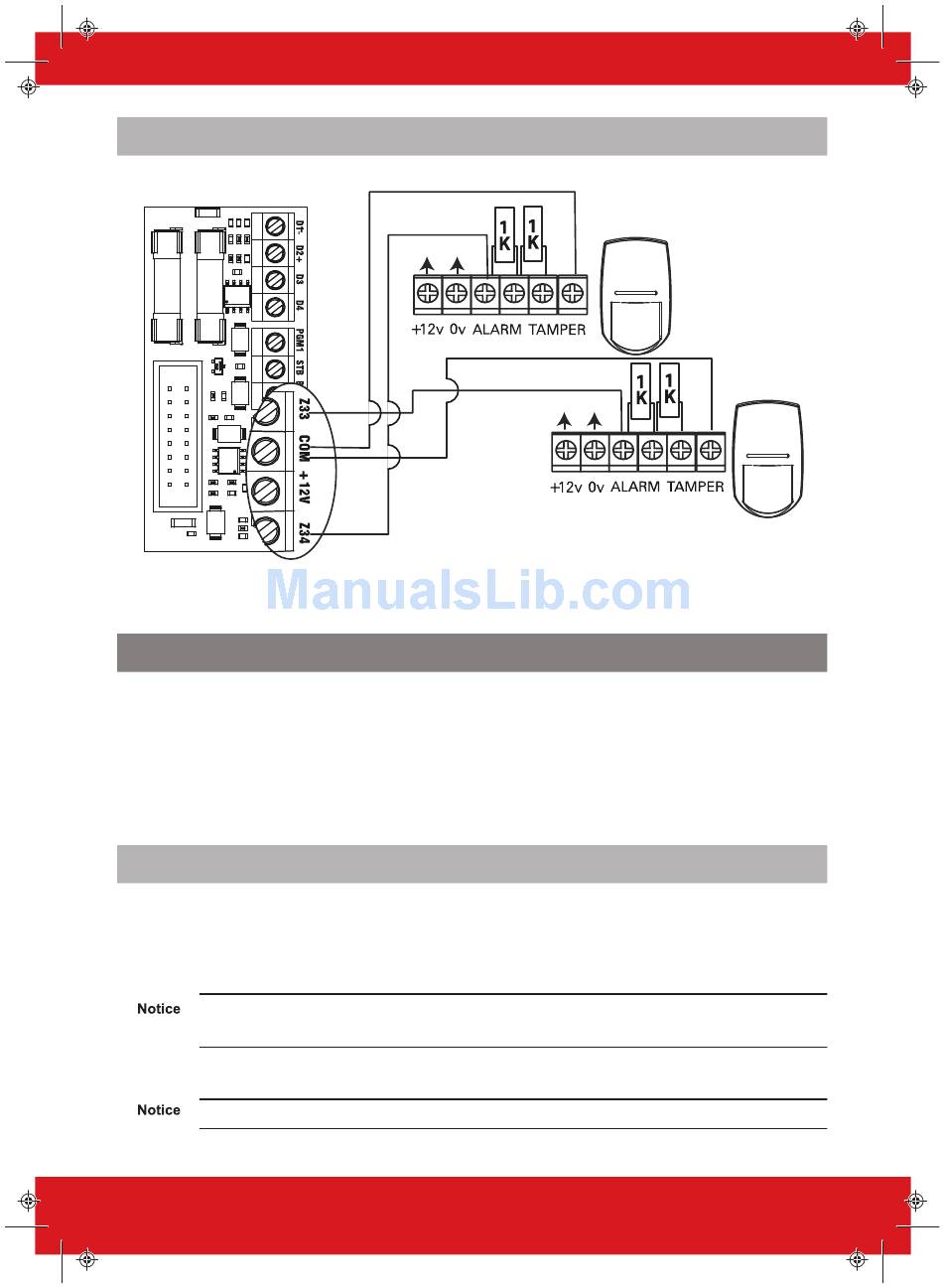

The resistor values are 1K for Alarm and 1K for Tamper.

Modems

You can connect the following modems to the Enforcer:
• DIGI-1200
• DIGI-GPRS
• DIGI-LAN
• DIGI-WIFI

PSTN Modem (DIGI-1200)

The PSTN modem card is used to enable the Enforcer to communicate either via contact ID or SIA. It
will also enable remote uploading/downloading.
Before making these connections, all power must be disconnected from the system.
The telecom ground terminal (TE) should always be connected to earth in order to maximise
the effectiveness of the transient voltage protection on the unit.
Turn off the mains power before disconnecting the PSTN modem.
