UM1467
4.
In the TrueSTUDIO® Build Settings dialog box, select STM32F4-Discovery as
Evaluation board, configure the other settings as shown in

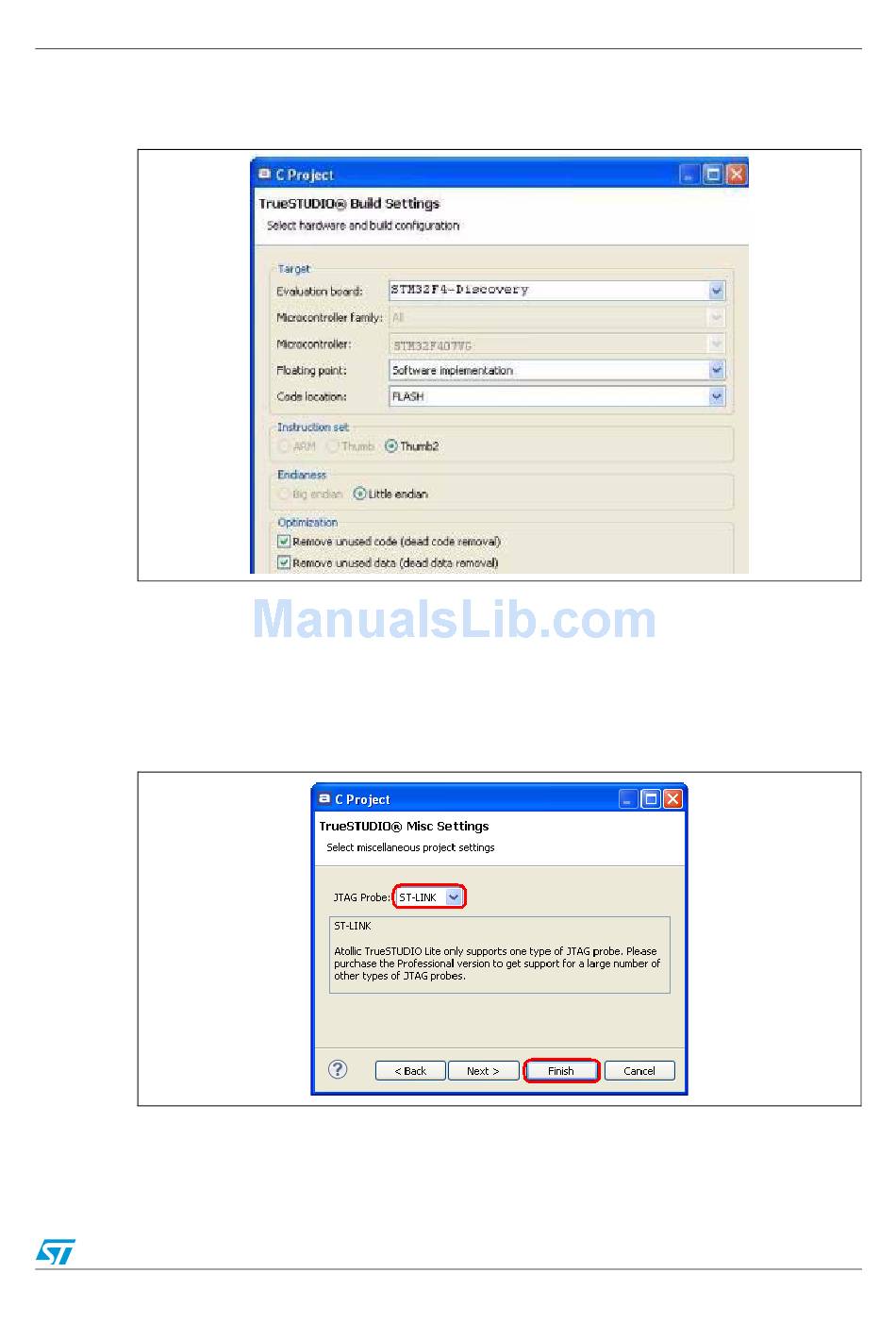

Figure 45. TrueSTUDIO® Build Settings dialog box
Note:
Choosing STM32F4DISCOVERY as the evaluation board, will configure the project as
follows:
●
Microcontroller:
●
Debug probe:
●
Connection:
5.
Verify that the JTAG Probe is ST-LINK and click Finish to confirm your settings.
Figure 46. TrueSTUDIO® Misc Settings dialog box
6.
Your project is successfully created. Atollic TrueSTUDIO® generates target specific
sample files (main.c, stm32f4xx_it.c...) in the Project folder to simplify development.
You can tailor this project to your needs by modifying these sample files.
STM32F407VGT6
ST-LINK
Serial Wire Debug (SWD).
Doc ID 022172 Rev 1
Using Atollic TrueSTUDIO®
Figure 45
and click Next.
34/46
