8

Specifications

8.1

Dimensions and Clearances

The following table applies to A and B as shown in Figure 149 below.
3.50
[88.0]
Cable
Clearence

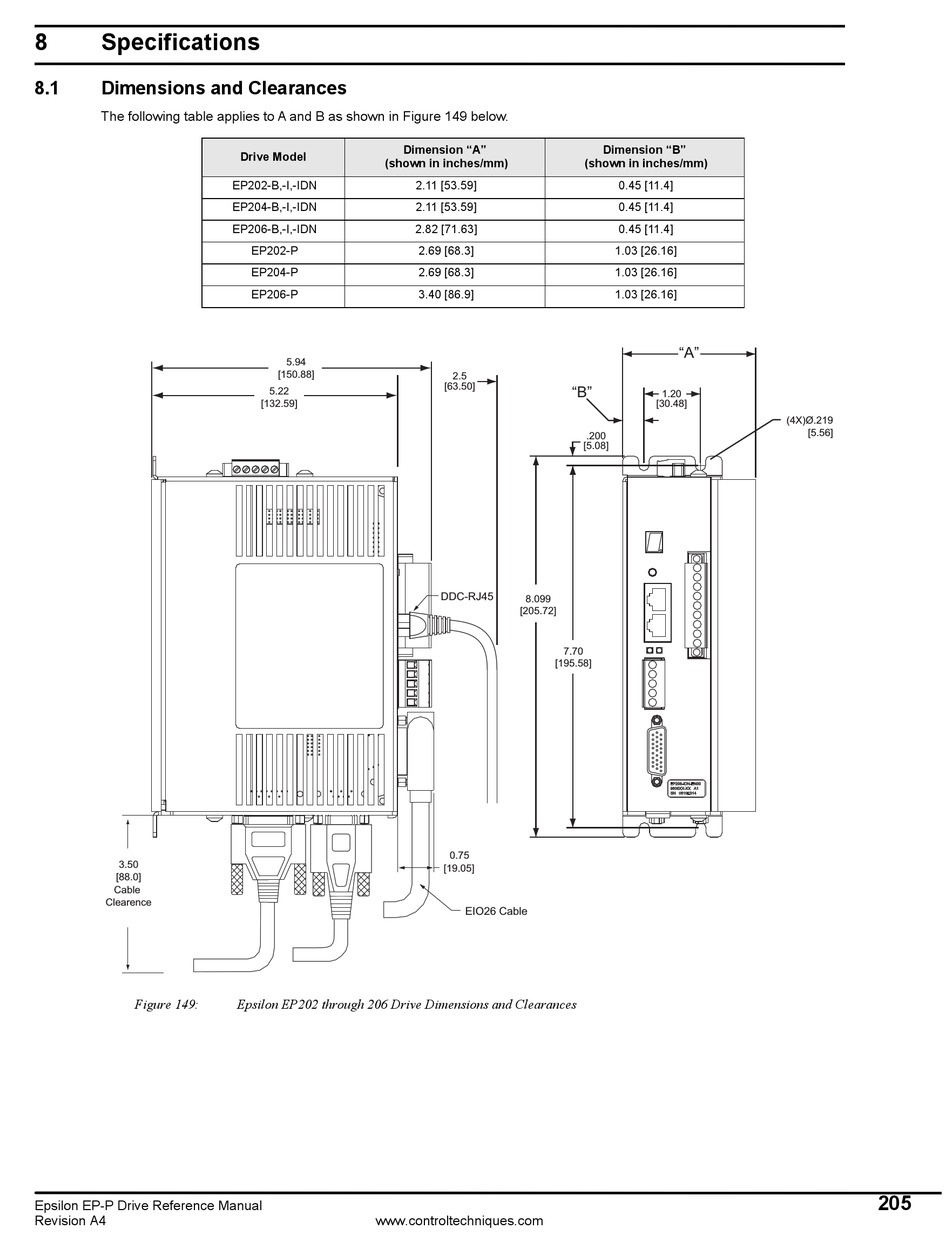

Figure 149:
Epsilon EP-P Drive Reference Manual
Revision A4
Dimension "A"
Drive Model
(shown in inches/mm)
EP202-B,-I,-IDN
EP204-B,-I,-IDN
EP206-B,-I,-IDN
EP202-P
EP204-P
EP206-P
5.94
[150.88]
5.22
[132.59]
Epsilon EP202 through 206 Drive Dimensions and Clearances
www.controltechniques.com
(shown in inches/mm)
2.11 [53.59]
2.11 [53.59]
2.82 [71.63]
2.69 [68.3]
2.69 [68.3]
3.40 [86.9]
2.5
[63.50]
"B"
.200
[5.08]
DDC-RJ45
8.099
[205.72]
7.70
[195.58]
0.75
[19.05]
EIO26 Cable
Dimension "B"
0.45 [11.4]
0.45 [11.4]
0.45 [11.4]
1.03 [26.16]
1.03 [26.16]
1.03 [26.16]
"A"
1.20
[30.48]
(4X)Ø.219
[5.56]
