Cable Diagrams; Eio26 - Control Techniques Epsilon EP-P Reference Manual

8.2

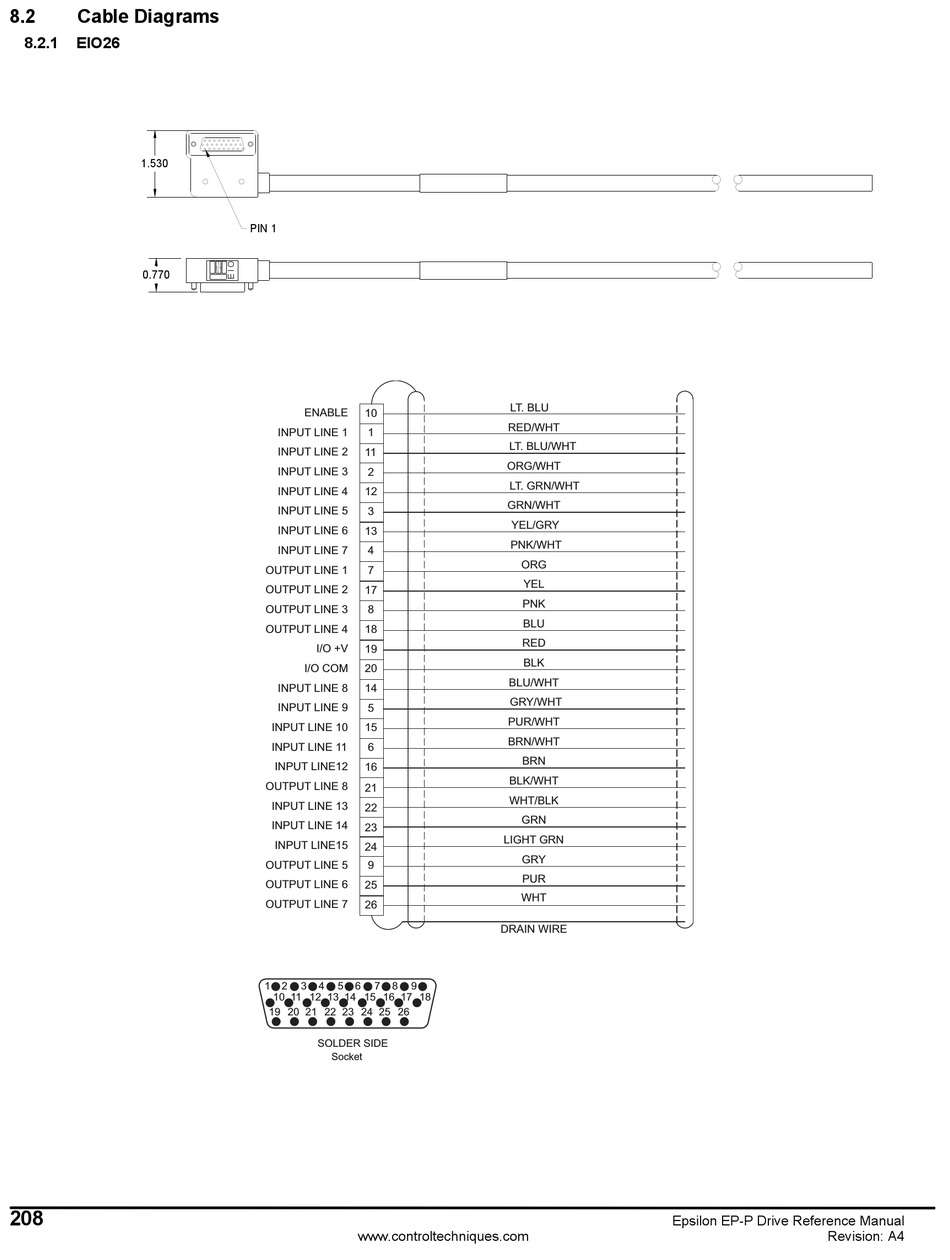

Cable Diagrams

8.2.1

EIO26

1.530
0.770
208
PIN 1
ENABLE 10
INPUT LINE 1 1
INPUT LINE 2 11
INPUT LINE 3
2
INPUT LINE 4 12
INPUT LINE 5 3
INPUT LINE 6 13
INPUT LINE 7
4
OUTPUT LINE 1 7
OUTPUT LINE 2 17
OUTPUT LINE 3 8
OUTPUT LINE 4 18
I/O +V
19
I/O COM 20
INPUT LINE 8 14
INPUT LINE 9 5
INPUT LINE 10
15
INPUT LINE 11
6
INPUT LINE12 16
OUTPUT LINE 8
21
INPUT LINE 13
22
INPUT LINE 14
23
INPUT LINE15
24
OUTPUT LINE 5 9
OUTPUT LINE 6 25
OUTPUT LINE 7 26
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18
19 20 21 22 23 24 25 26
SOLDER SIDE
Socket
www.controltechniques.com
LT. BLU
RED/WHT
LT. BLU/WHT
ORG/WHT
LT. GRN/WHT
GRN/WHT
YEL/GRY
PNK/WHT
ORG
YEL
PNK
BLU
RED
BLK
BLU/WHT
GRY/WHT
PUR/WHT
BRN/WHT
BRN
BLK/WHT
WHT/BLK
GRN
LIGHT GRN
GRY
PUR
WHT
DRAIN WIRE
Epsilon EP-P Drive Reference Manual
Revision: A4
