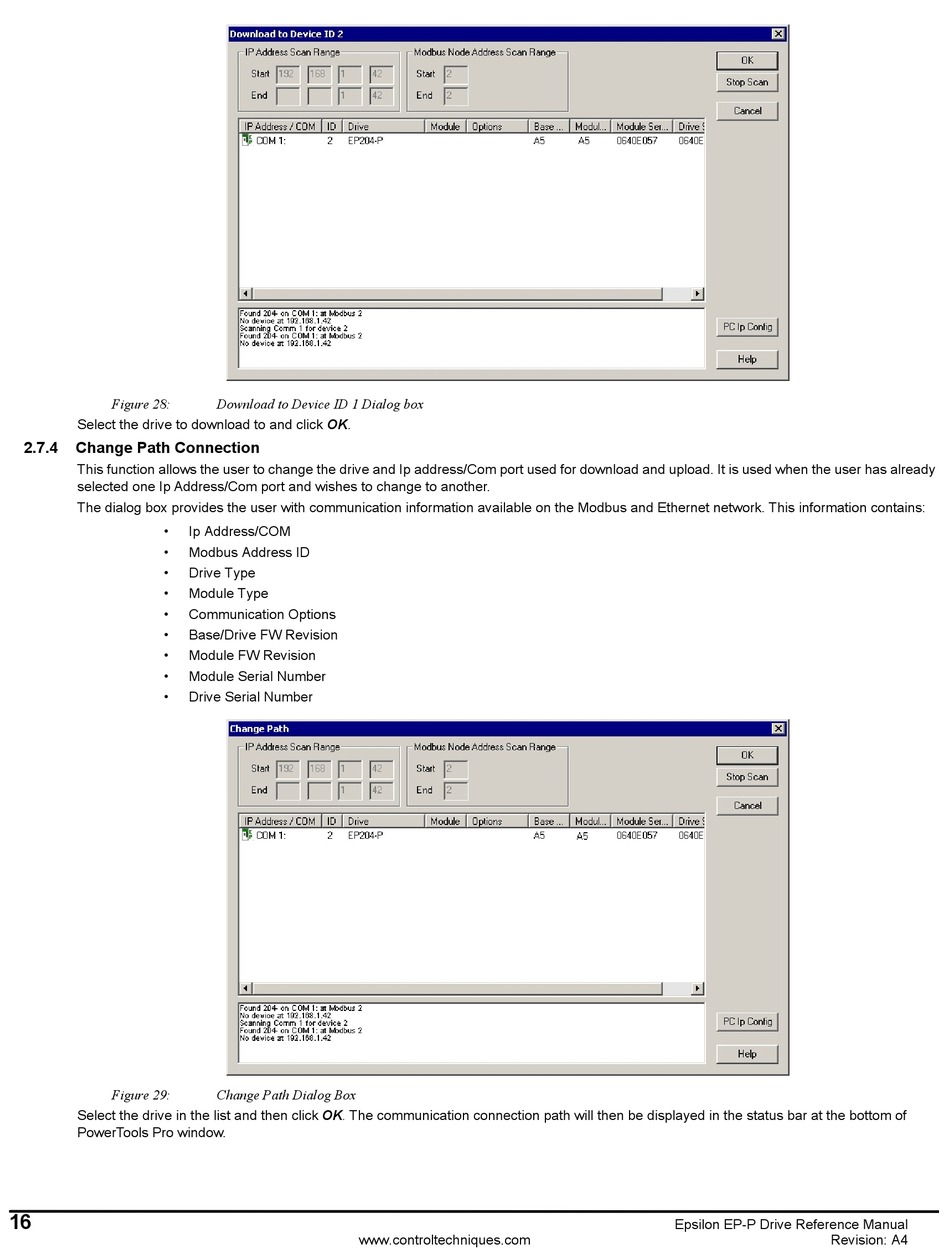

Figure 28:
Select the drive to download to and click OK.
2.7.4

Change Path Connection

This function allows the user to change the drive and Ip address/Com port used for download and upload. It is used when the user has already
selected one Ip Address/Com port and wishes to change to another.
The dialog box provides the user with communication information available on the Modbus and Ethernet network. This information contains:
•
•
•
•
•
•
•
•
•
Figure 29:
Select the drive in the list and then click OK. The communication connection path will then be displayed in the status bar at the bottom of
PowerTools Pro window.
16
Download to Device ID 1 Dialog box
Ip Address/COM
Modbus Address ID
Drive Type
Module Type
Communication Options
Base/Drive FW Revision
Module FW Revision
Module Serial Number
Drive Serial Number
Change Path Dialog Box
www.controltechniques.com
Epsilon EP-P Drive Reference Manual
Revision: A4
